The contents on this page are as of the released date, 17 March 2025.

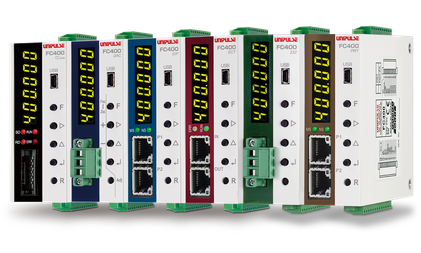

PROFINET IO option is added to the embedded type indicator "FC400"!

This time, we will introduce the features and the functions of the FC400.

A weighing and a measurement system can be built with the high-speed A/D conversion of 2400 times/sec. and the powerful digital processing capability, as well as the high display resolution of 1/10000 at maximum.

The settings of FC400 can be managed as a whole by the application software for USB interface. Not only copying the parameters, but also logging, the graph display, the filter setting and the calibration can be managed with just a PC.

It can be very convenient at the system start-ups and the maintenance works as a data, a graph and a status can be displayed simultaneously.

FC400 is capable of adjusting the filter automatically. It achieves a balance between the both sides; the accuracy and the stability at the same time.

Automatic searching for an effective combination of the low pass filter and the moving average filter is executed.

■Demo video of the automatic filter:

FC400 can be fit into a limited space and is ideal for embedded installation.

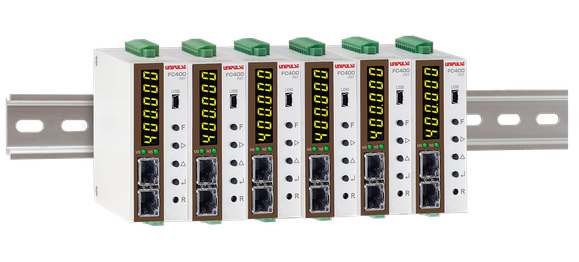

Lightweight & compact body for 35 mm DIN rail mount.

FC400 is a simple indicator that supports both weighing and force measurements with the high-speed sampling and extensive interface.

Do consider FC400 if you are looking for an indicator for the following applications:

• For high-accuracy feeding & discharging weighing such as a hopper scale and a packer scale.
• For weighing with intense vibrations such as high-speed liquid filling.
• For applications that require powerful filters such as a fuel gauge and a level meter.
• For simple systems such as a general platform scale.
• For equipment with a short takt time such as a capper.
• For applications where high-speed response is indispensable such as a thrust force check of a pressing machine.
