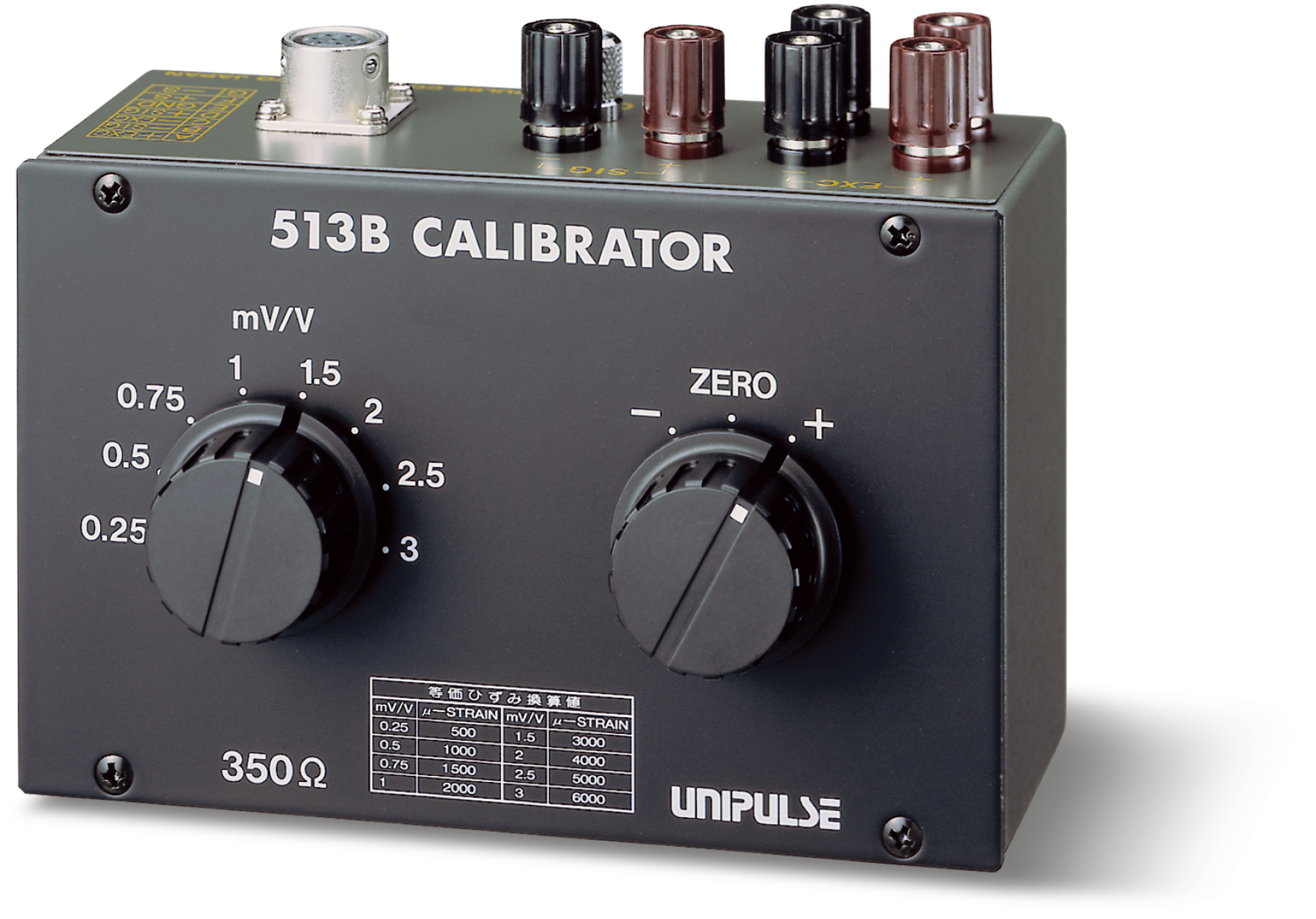

Product outline

High precision calibrator that can generate wide range of pseudo output.

Specifications

Input resistance 350 Ω±2%
Output resistance 350 Ω±2%
Calibration output value 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 3 mV/V
Polarity +, -, ZERO
Error Within ±0.01% of each range
Gain drift ±5 ppm/℃
Excitation voltage DC 10 V (DC 15 V max.)
Dimensions 150(W) × 95(H) × 63(D) mm (Not including projections)
Weight Approx. 800 g
Operation condition Temperature: -20 to +60℃
Humidity: 80% RH or less (non-condensing)
Attachment (6-wired) cable with PRC connector at both end 1 m・・・ 1
Optional accessory CA4230: JR-PRC (6-wired) conversion relay cable 0.3 m

(At the above-mentioned specification use of cable of attachment.)
