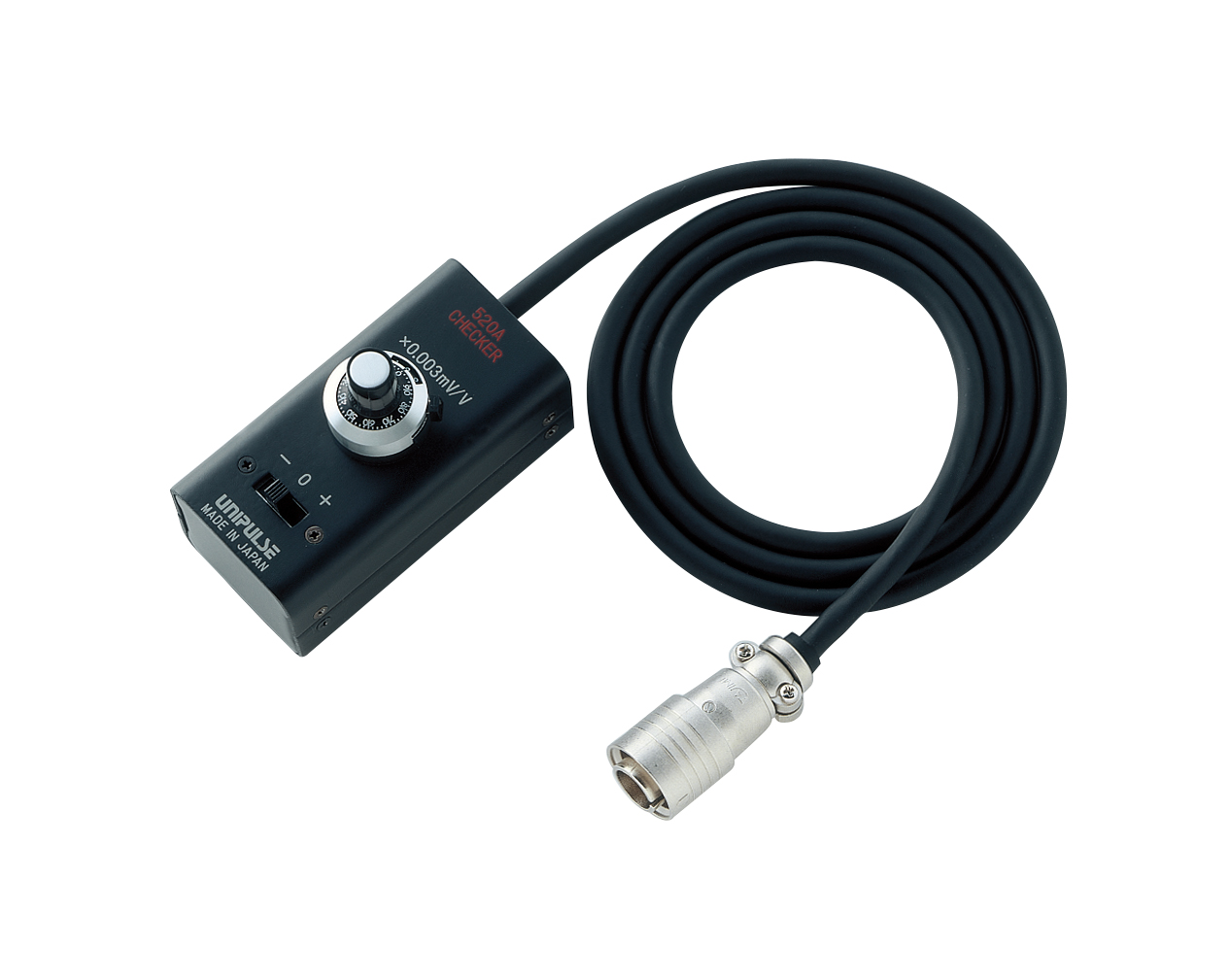

Product outline

Continuously variable checker in the range of 0 to ±3 mV/V

Specifications

Input resistance Approx. 325 Ω
Output resistance Within 100 Ω
Polarity +, -, ZERO
Output voltage 0 to 3 mV/V (Helical potentiometer with dial)
Error 0.3%+0.02 mV/V (to the dial reading value)
Excitation voltage DC 15 V max
Dimensions 40(W) × 80(H) × 35(D) mm (Not including projections)
Weight Approx. 250 g
Attachment PRC (4-wired) conversion relay cable 1 m
Cable end:5 wires・・・ 1
Optional accessory CA4311: JR-PRC (6-wired) conversion relay cable 1 m (4-wired to 6-wired)
