Product outline

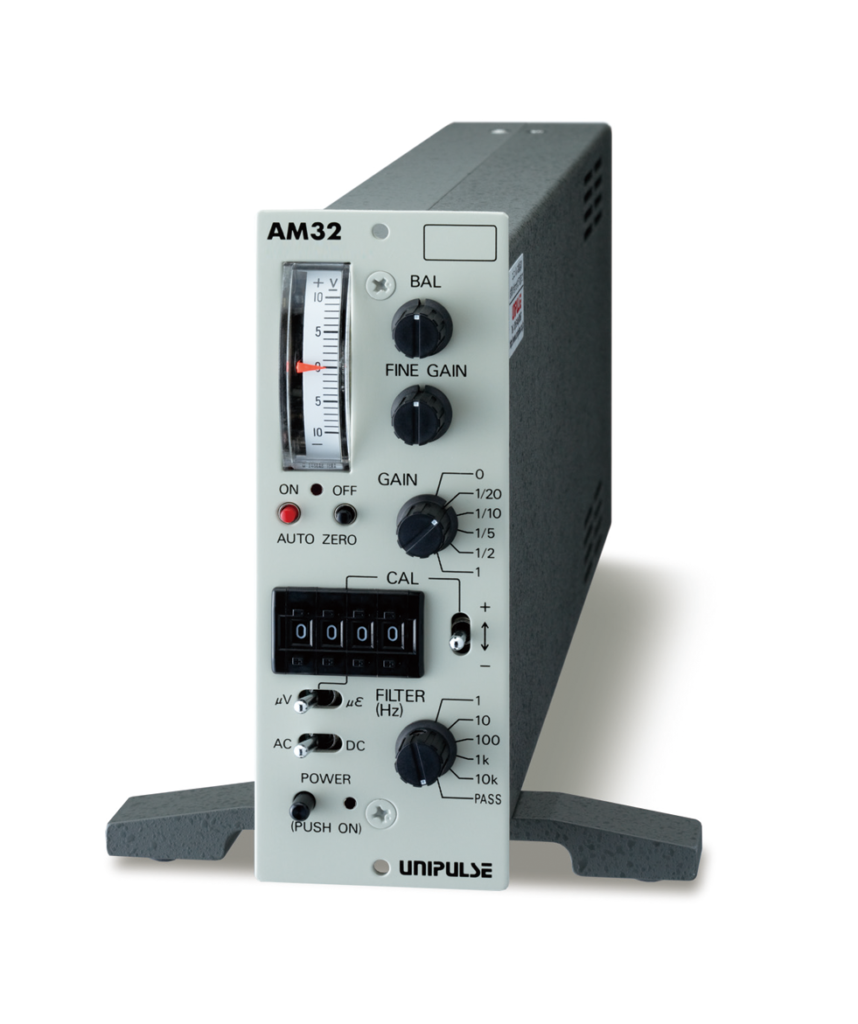

AM32AZ is a general-purpose DC amplifier with a built-in bridge excitation supply for strain gauge sensors. It exhibits power performance for broadband operation (DC -100 kHz) achieving high gain (Max. gain: 10000 times), but it has an extremely low drift. Therefore, data precision with every measurement or experiment markedly improves. In addition, AM32AZ has excellent user-friendliness. It is equipped with a calibration function by digital switch which allows easy calibration of either value of voltage or strain amount.
Specifications
| Compatible input resistance | 60 Ω to 2 kΩ |
|---|---|
| Excitation power supply | Voltage: DC 2.5, 5, 10, 15, 20 V ±0.2% Current: within 50 mA |
| Zero adjustment range | ±1.5 mV/V (10 turn trimmer potentiometer) |
| Gain adjustment | ･ Rough adjustment: 0, 1/20, 1/10, 1/5, 1/2, 1/1…Error±0.2% ･ Fine adjustment: 1 to 1/6 of each range variable |
| Input voltage range | 0 to ±100 mV |
| Input resistance | 10 MΩ or more (direct-coupled equilibrium differential) |
| Voltage amplification | Max. 10000 times |
| Accuracy | Non-linearity:Within ±0.01% FS Zero drift:Within ±0.5 μV/°C (after a lapse of 30 min. after power ON) Gain drift:Within ±50 ppm/°C of measured value (after a lapse of 30 min. after power ON) Noise:Within 30 μVp-p RTI (full band) Within 2.5 μVp-p RTI (1 kHz band) Within 0.5 μVp-p RTI (10 kHz band) |
| Output voltage | Voltage output: BNC connector output: 0 to ±10 V±5 mA (0.2 Ω) Binding post output: 0 to ±10 V±30 mA (300 Ω) |
| Response characteristic | DC-100 kHz/-3 dB |
| High-pass filter (AC mode) |
0.5 Hz(-3 dB) ±15%, -6 dB/OCT. |
| Low-pass filter | Bessel type (-12 dB/oct) 1, 10, 100, 1 k, 10 k Hz (-3 dB) ±15% and PASS |
| Calibration value | Strain calibration: ±1 to 9999 x 10-6 strain Voltage calibration: ±1 to 9999 μV Setting method: 4-digit digital switch Accuracy: ±0.2%±0.5ｘ10-6 strain (Strain calibration) ±0.5%±5 μV (Voltage calibration) Superimposed on input signal |
| External control | Electronic auto zero function Auto zero range: ±1 V (±10 V, ±5 V, ±2 V Please specify when ordering.) Resolution： 12bit（±1/2000） Auto zero command: ON and OFF, panel face switch and external signal (negative pulse with a pulse width of 50 ms or more) |
| Power supply voltage | AC 100 V±10%, 50/60 Hz |
| Power consumption | 10 VA typ. |
| Operating conditions | ･ Working temperature range: 0 to +50°C ･ Humidity: 85% RH or less (non-condensing) |
| Dimensions | 49.5(W) × 138(H) × 310(D) mm (panel thickness included, but dimensions of protruding parts not included) |
| Weight | Approx. 1.9 kg |
| Attachments | |
| AC input cord | 1 |
|---|---|
| Spare fuse (0.5 A) | 1 |
| CA8 (BNC-alligator clip cable 1.5 m) | 1 |
| Operation manual | 1 |
| Optional accessories | |
| CA3Y31 | (6-wired) input cable with PRC connector at one end (3 m) |
|---|---|
| CA451 | (6-wired) input cable with PRC connector at both ends (5 m) |
| CA7 | Coaxial cable with BNC 1.5m |
| CA8 | BNC-alligator clip cable 1.5 m (Same as the attachment) |
