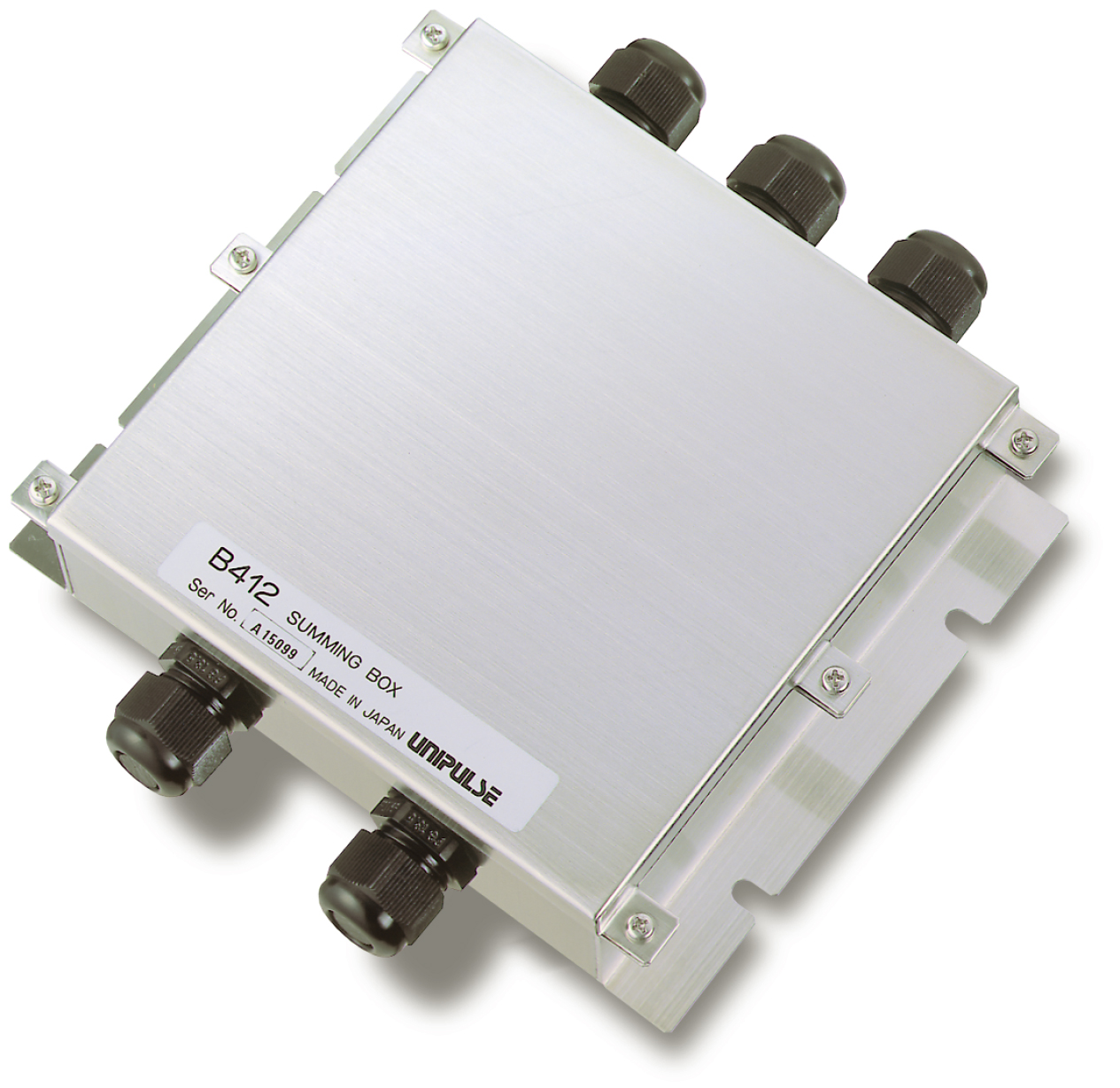

Product outline
Up to 4 units of load cells can be connected in parallel
Specifications
| Clamp for cable fixation | Connection with load cell (four): Acceptable cable diameter 5 to 10φ Connection with indicator (one): Acceptable cable diameter 6 to 12φ |
|---|---|
| Number of connectable load cells | 1 to 4 units |
| Operation condition | Operation temperature range: -20 to +60℃ Storage temperature range: -40 to +80℃ Humidity: 85% RH or less (non-condensing) |
| Weight | Approx. 1.3 kg |
| Attachments | Mini driver…1 Silica gel…1 Waterproof stick (Factory-installed)…4 Operation manual…1 |
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
PDF
|
||
|
Support tools
|
||
|
Software
|
||
