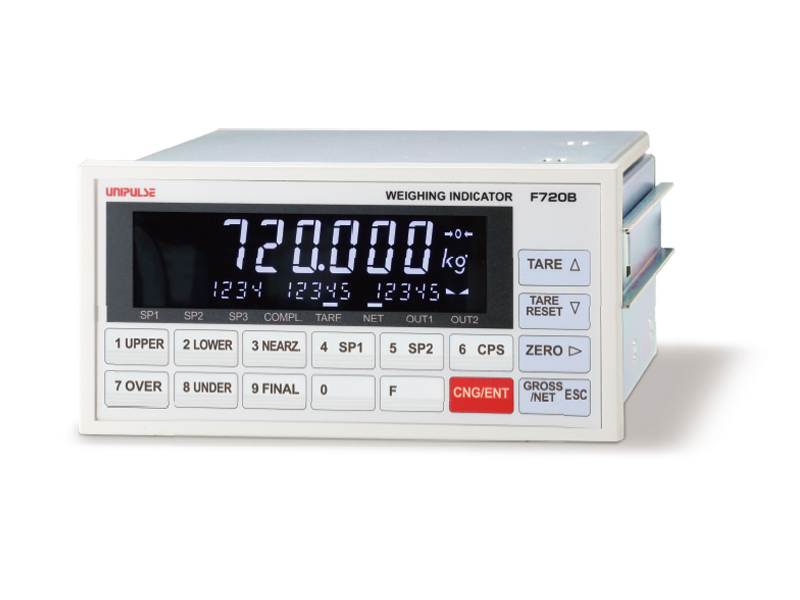

Product outline
- CC-Link (Ver.2) option supported
- EtherNet/IP option supported
Connect to EtherNet/IP network to build a system that manages measurement data & settings - Dedicated software for RS-232C (Free software)
Communicate through RS-232C interface; logging, graph display, parameter setting & calibration are possible - Minus compensation
Useful for high-pressure liquid filling & pressure feeding - Input conversion value display
- Bright white LCD display with the useful 20 digits sub display
- Equivalent input calibration
- Multipoint calibration (Linearization)

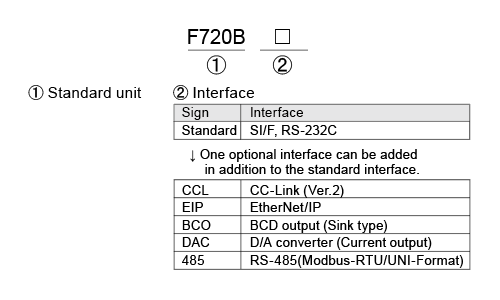

Structure of product code

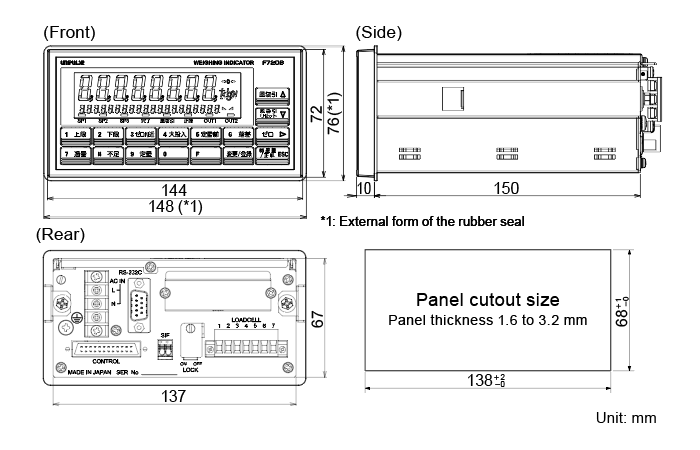

External dimension
Specifications
Analog section｜Display section｜External signal｜Interface｜General specifications｜Attachments｜Optional accessories
| Analog section | |
| Excitation voltage | DC 10 V±5％ Output current : Within 120 mA DC 5 V±5％ Output current : Within 90 mA Remote sense type (Up to four 350 Ω load cells can be connected in parallel.) *At excitation voltage 10 V (Up to six 350 Ω load cells can be connected in parallel.) *At excitation voltage 5 V |
|---|---|
| Signal input range | -1.0 to +5.5 mV/V |
| Zero adjustment range | Automatic adjustment by digital processing -0.5 to +2.0 mV/V |
| Span adjustment range | Automatic adjustment by digital processing +0.3 to +3.0 mV/V |
| Linearization function | Can calibrate up to 3 points other than zero/span |
| Min. input sensitivity | 0.3 μV/count |
| Accuracy | Non-linearity: Within 0.01% FS Zero drift: 0.0007% FS/℃ typ. *When calibrated by 3 mV/V with 10 V of the excitation voltage Gain drift: 10 ppm/℃ typ. |
| Analog filter | Bessel type low-pass filter (−12 dB/oct.) Selectable at 2, 4, 6, 8 Hz |
| Moving average filter | OFF, 2 to 512 times |
| A/D converter | Speed: 300 times/sec. Resolution: 24 bit (binary) |
| Display section | |
| Display unit | Numerical display by liquid crystal display module Main display: 8-digit (14.4 mm character height) Sub-display: 20-digit (4.3 mm character height) |
|---|---|
| Display value | 6-digit, sign: negative display at the highest digit |
| Unit | None/ kg/ g/ t/ lb/ N |
| Decimal point | 0, 0.0, 0.00, 0.000, 0.0000 |
| Display frequency | 3, 6, 13 or 25 times |
| Weight errors | LOAD: Sensor signal level is above the signal input range -LOAD: Sensor signal level is below the signal input range OFL1: Net weight is over the limit OFL2: Maximum weight value +9 scale division OFL3: GROSS weight is over the limit |
| Status display | SP1/ SP2/ SP3/ COMPLETE/ TARE ON/ NET/ OUT1/ OUT2 |
| External signal | |
| Output signal (12 points) |
Open collector output Vceo = 30 V, Ic = 120 mA |
|---|---|
| Input signal (8 points) |
Non-voltage contact input (Internal circuit power supply voltage 12 V) |
| Interface * Only one option can be installed. | |
| SIF | 2-wire type serial interface |
|---|---|
| 232 | RS-232C communication interface |
| CCL | CC-Link interface (Ver.2) (Option) |
| EIP | EtherNet/IP interface (Option) |
| BCO | BCD parallel data output interface (Option) |
| DAC | D/A converter interface (Option) |
| 485 | RS-485 communication interface (Option) |
| General performance | |
| Power supply voltage | AC 100 to 240 V(＋10%－15%)(Free power source50/60 Hz) |
|---|---|
| Power consumption | 12 W typ. |
| Operation condition | Operation temperature range : -10 to ＋50℃ Storage temperature range : -20 to ＋80℃ Humidity：85% RH or less (non-condensing) |
| Dimensions | 144(W)×72(H)×160(D) mm (Not including projection) |
| Weight | Approx. 1.1 kg |
| CE marking certification | ・EMC directive : EN61326-1 ・Safety standard : EN61010-1, EN62311 |
| Attachments | |
| AC input cord (Nominal rating 125 V) 3 m | 1 |
|---|---|
| Mini screwdriver | 1 |
| FCN series I/O connector (with cover) | 1 |
| Jumper wire | 2 |
| Operation manual | 1 |
| Rubber seal for dust & drop-proof protection | 1 |
| Load cell input connector terminal block (Already mounted on the main unit) |
1 |
| CC-Link connector (when CC-Link option is selected) | 1 |
| BCD output connector (when BCD output option is selected) | 1 |
| D/A converter connector (when DAC option is selected) | 1 |
| RS-485 connector (when RS-485 option is selected) | 1 |
| Optional accessories | |
| CAAC2P-B3 | AC input cord 3 m (Same as the attachment) |
|---|---|
| CAAC3P-B3 | AC input cord 3 m |
| CA325AC3P-B3 | AC input cord 3 m |
| CAAC3P-CEE7/7-B2 | AC input cord (Voltage resistance: 250 V) 2 m |
| CA325AC3P-CEE7/7-B2 | AC input cord (Voltage resistance: 250 V) 2 m |
| CN21 | BCD output connector |
| CN34 | D-Sub9p connector for RS-232C |
| CN50 | FCN series I/O connector (with cover) (Same as the attachment) |
| CN55 | FCN series I/O connector (with diagonal cover) |
| CN71 | RS-485 & CC-Link connector |
| CN72 | Double row connector for CC-Link |
| CN80 | Load cell input connector terminal block (Same as the attachment) |
| CN86 | 3p connector D/A converter |
| PNL-CONV | Panel cutout size conversion plate（144×72 → 192×96） |
