Product outline

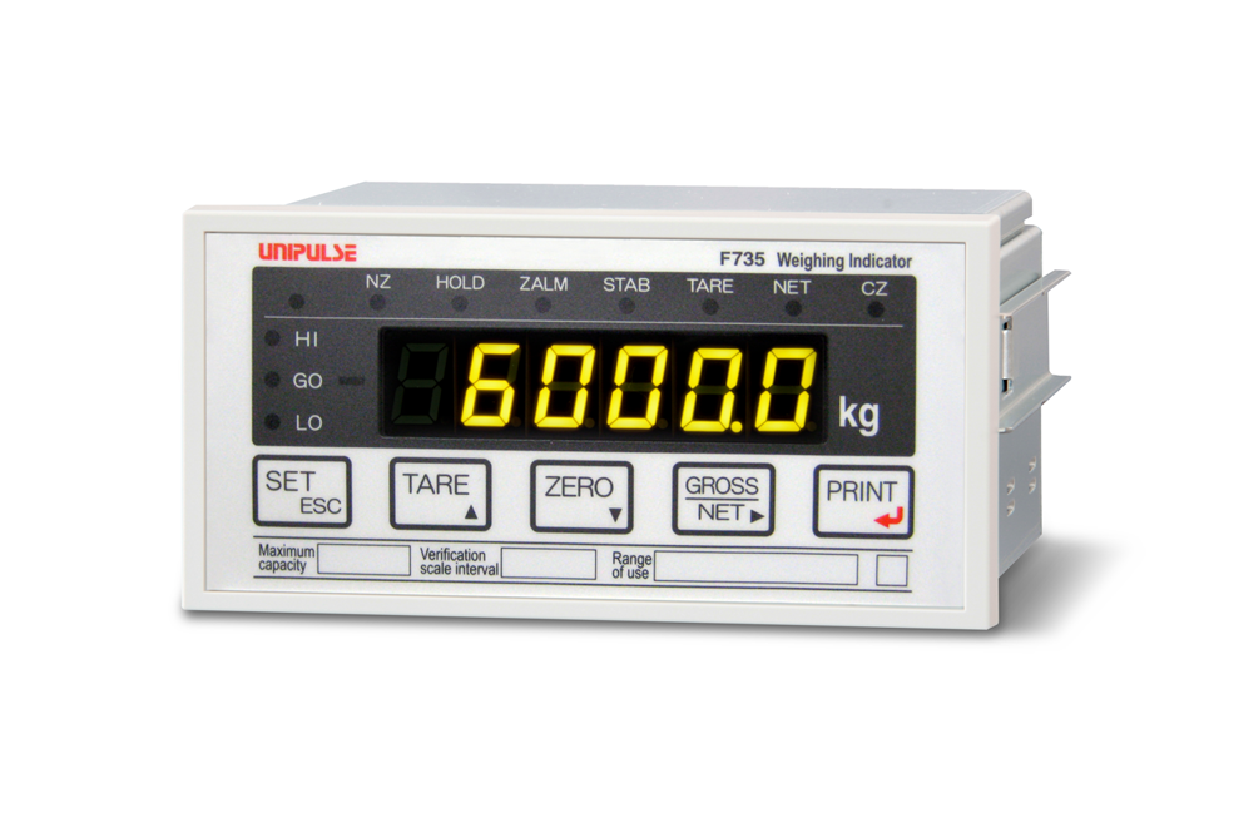

F735 is an indicator that converts and displays signals from load cells into digital values. Equipped with CC-Link Ver.2.00 as standard, it can communicate as a Ver.2 remote device station.
Operation mode can be set as high speed (300 times/sec), medium speed (100 time/sec) or low speed (30 times/sec). A wide range of necessary uses are supported from high speed response to high stability. Resistant to vibration, and even troublesome filter setting can be done with simple operation with one button.
Front panel part is dust & waterproof by installing the attached packing. It is a practical device equipped with abundant functions that focus on “measurement” such as 5-point calibration,
dual range, high resolution & comaprison function, conformity to Measurement Act and more.

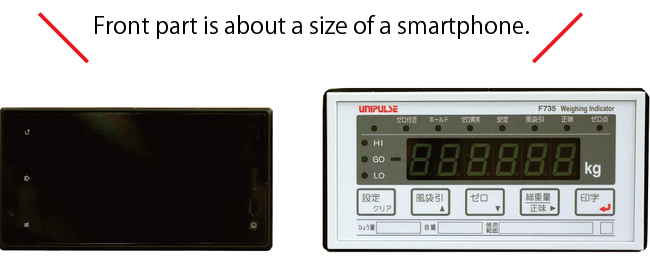

Small size, lightweight & compact design thus easy-to-mount

Especially the depth from its front panel is only 99mm when it is panel-mounted. (The depth is 120mm when including the protruding part)


F735-img7




CC-Link is equipped as standard

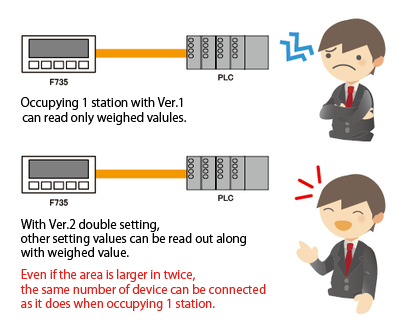

F735 can communicate as a remote device station for CC-Link Ver.2.
As characteristics of Ver.2, by using double extended cyclic setting, the same memory allocation for occupying 2 stations can be used while occupying 1 station.
Thus, the maximum number of the unit that can connect with the master compatible with Ver.2 is 42.


F735-img2

In addition, it can communicate with the master even if the master is CC-Link Ver.1 such as for replacement of conventional system.
(However, it will be a network communication as Ver.1 in this case.)


F735_Ver3

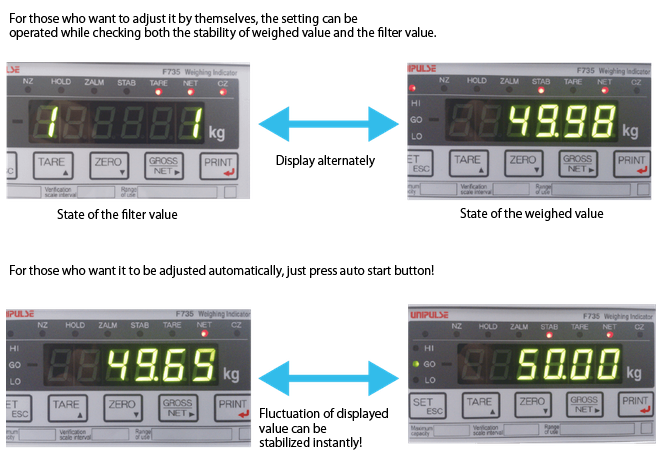

Easy filter value adjustment

Anyone can adjust filter value that suits situations at sites.


F735-img3


Various correction function also supported

Also supporting equivalent calibration, linearization calibration, dual range function and more.


Sampling rate changeable

According to applications, the sampling rate can be changed by user.
In case high speed response is required such as for automated instruments and checkers, select 300 times/sec. In case measurement with invariable stability is required such as for non-automatic measuring instrument, select 100 times/sec or 30 times/sec.

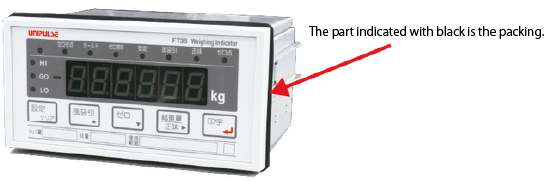

Dust & waterproof at front part

The front part is dust & waterproof by installing the attached packing and panel-mounted.


F735-img5


Selectable power source & language

DC power (24V) and English specification are available. (Please specify when ordering)


Specified measuring instrument

F735 is an indicator module (Accuracy class: class 3, scale interval: 6000) for type approval of “for transaction and certification” that is defined by Level H of JIS B 7611-2.
*Only with AC specs.

Specifications



Analog section
Excitation voltage DC5V±5% Output current:within 90mA
Ratio metric type (Up to six 350Ω load cells can be connected in parallel.)
Signal input range -0.3 to 3.0mV/V,
0 to 3.0mV/V (When supporting JIS B 7611-2)
Zero adjustment range Automatic adjustment by digital operation
0 to 2.0mV/V
Gain adjustment range Automatic adjustment by digital operation
0.3~3.0mV/V,
0/6~3.0mV/V(When supporting JIS B 7611-2)
Gain correction Up to 3 point multi-point calibration is
      possible using linearization function
Minimum input sensitivity 0.15μV/count
0.5μV/count (When supporting JIS B 7611-2)
Accuracy Non-linearity: within 0.01%/FS
Zero drift: 0.025μV/℃ RTI typ
Gain drift: 1ppm/℃ typ
Low pass filter High speed (300 times/sec):1.5Hz,2Hz,2.5Hz,3Hz,4Hz,5Hz
Midium speed (100 times/sec):0.5Hz,0.67Hz,0.83Hz,1Hz,1.33Hz,1.67Hz
Low speed (30 times/sec):0.15Hz,0.2Hz,0.25Hz,0.3Hz,0.4Hz,0.5Hz
Moving average filter Selectable within the range of 2 to 512 times
A/D converter Conversion rate: 300 times/sec.
Conversion resolution: 24bit (binary)
Enabled resolution: More than 400000 (for -0.3 to 3.0mV)
Minimum indication resolution 1/10000, 1/6000 (When supporting JIS B 7611-2)
Secondary calibration Equivalent input calibration Minimum indication resolution for secondary calibration:1/1000 (ordinary temperature)

Display section
Display Character height 14mm
Number display by 7-segment green LEDs (6 digits)
Indicated value 5 digit sign: negative display at the highest digit
Display frequency Select from 3, 6, 13, 25times/sec.(The system speed is 300 times/sec.)
Capacity 5 digit
Min. scale division Setting allowable in the range of 1 to 50.
Decimal point Select from 0, 0.0, 0.00, 0.000
Over display LOAD: A/D converter input over
OFL1: Net over
OFL2: Capacity +9 scale division
-OFL2: Capacity -over or -20 scale division over
OFL3: Gross over
Center zero A true zero point or the center of each value is displayed.
Status display HI/GO/LO/NZ/HOLD/ZALM/STAB/TARE/NET/CZ
(9 x red LEDs、1 x green LED)

Setting section
Setting method Settings are made by operating the membrane keys.
Also, setting from the master unit via CC-Link I/F is available
Memory of set value Memory using F.RAM (non-volatility RAM)
Protect of set value Protection is possible using a LOCK switch.
Setting items

Upper limit / Lower limit / Near zero / Function selection 1 / Auto hold ime / Preset tare setting / Tare display
Net over / Gross over / Key invalid・LOCK / Password / Measurement Act correspond setting
Digital low pass filter / Moving average filter / Operating mode / Motion detection (period-range) / Zero tracking (period) / Function selection 2 / Function selection 3 / Display selection
Balance weight value / Capacity / Min. scale division / DZ regulation value / Dual range boundary / Gravitational acceleration / Equivalent calibration / Zero calibration / Span calibration
CC-Link baud rate / CC-Link station number / CC-Link occupied station / SI/F setting
Linearization calibration 1 / Linearization calibration 2 / Linearization calibration 3 / Span correction / Linearization calibration / Calibration point display / Zero calibration / Span calibration
Digital low pass filter / Moving average filter / Operating mode / Version display / Checksum display


Interface
SIF 2-wire serial interface
CCL CCL-Link Interface

General performance
Power supply voltage AC spec. :100 to 240V AC (+10% -15%) (Free power supply 50/60 Hz)
DC spec. :DC24V(±15%)(DC power supply should be specified at shipping)
Power consumption 4W typ.
Operating conditions Temperature: Working temperature range -10 to +40°C;
Storage temperature range -20 to +60°C
Humidity: 80% RH or less (non-condensing)
Dimensions 144(W)×72(H)×99(D) mm (protruding parts not included)
Weight Approx. 800g

Attachments
AC input cord (Nominal rating 125V) 3m 1
CC-Link connector 1
Mini Driver 1
Packing 1
Unit label 1
Operation manual 1


Optional accessories

Model
CA325AC3P-B3 AC input cord 3m
CA325AC3P-CEE7/7-B2 AC input cord (voltage resistance: 250V) 2m
CN71 CC-Link connector
CN72 Dual connector for CC-Link
