Please specify requirement for CE marking certified product when making your order.
Product outline

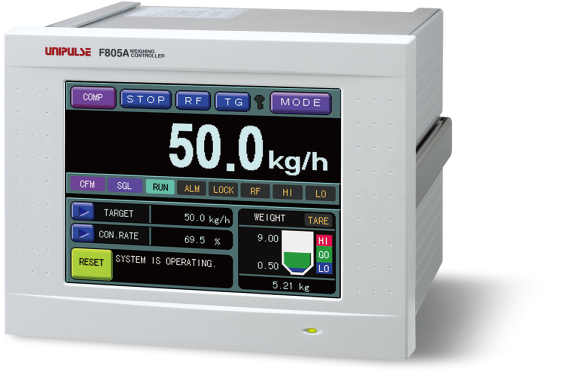

A weighing indicator developed for weight supply and loss-in-weight.
Automatic control of weight supply (discharge) and refilling (charging) is performed by calculating flow rate from the measurement of the discharged weight of material inside a hopper.
- Pulse input function
- Accumulated pulse output function
- PID control function

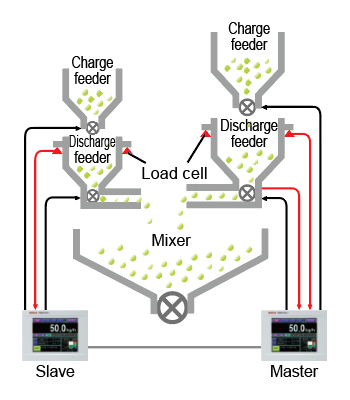

- Master-slave function (Convenient for control of sub-material supply hopper)
- Interlocking function
- Graphic function
- Weighing status message function
Interface
|
Model
|
Interface
|
Remarks
|
|---|---|---|
| SIF | 2-wire type serial interface | Standard |
| SI2 | 2-wire type bi-directional serial interface | Standard |
| 232 | RS-232C communication interface | Standard |
| BCO | BCD parallel data output interface | Option |
| BCI | BCD parallel data input interface | Option |
| 485 | RS-485 communication interface | Option |
| DAC | D/A converter interface | Standard |
| ANA | Analog I/O interface | Option |
| CCL | CC-Link interface | Option |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

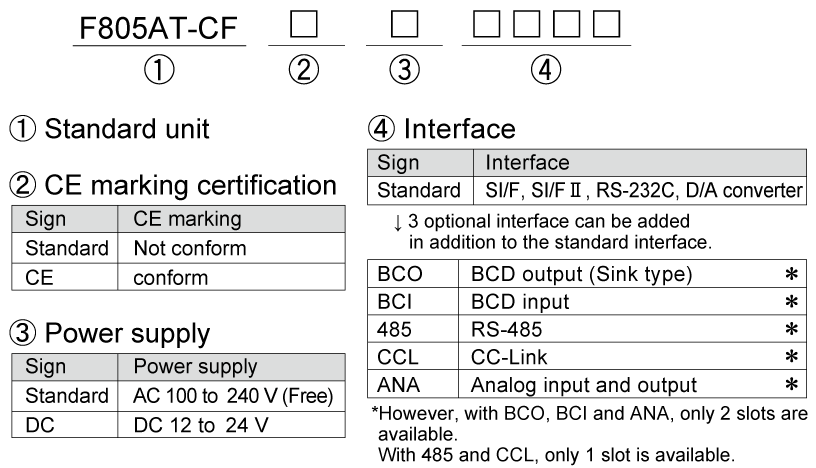

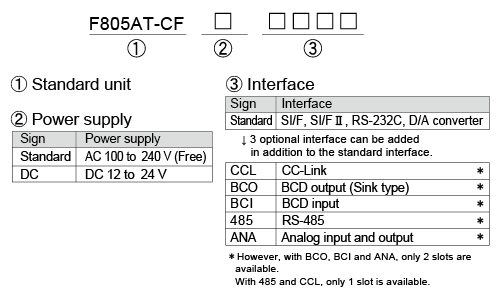

Structure of product code
