Please specify requirement for CE marking certified product when making your order.
Product outline

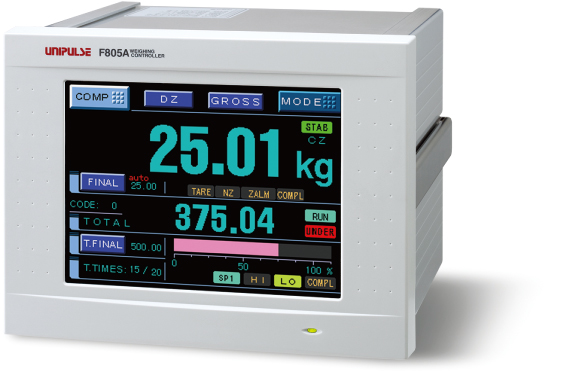

A weighing controller developed for multi draft weighing.
Powerful when used in heavy weighing work with small weighing scale.
Each control function such as a rough feeding auto switch over and judgment condition can be suitably combined for “speedy” and “low-count yet effective” weighing.
Powerful when used in heavy weighing work with small weighing scale.
Each control function such as a rough feeding auto switch over and judgment condition can be suitably combined for “speedy” and “low-count yet effective” weighing.
- Rough feeding auto switch over (Rough charging and SP1/SP2/SP3 are automatically switched over by total.)
- Automatic calculation of batch count
- Graphic function
- Compensation weighing function (The ratio of remaining quantity to total final is monitored and Final of each batch is automatically compensated according to the accuracy of the weighing device.)
Interface
|
Model
|
Interface
|
Remarks
|
|---|---|---|
| SIF | 2-wire type serial interface | Standard |
| SI2 | 2-wire type bi-directional serial interface | Standard |
| 232 | RS-232C communication interface | Standard |
| BCO | BCD parallel data output interface | Option |
| BCI | BCD parallel data input interface | Option |
| 485 | RS-485 communication interface | Option |
| DAC | D/A converter interface | Option |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.

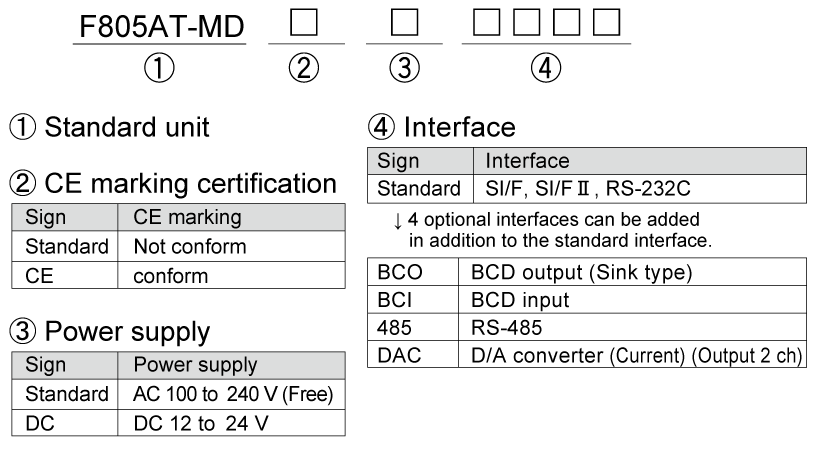

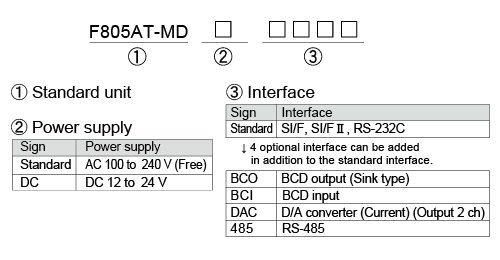

Structure of product code
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
PDF
|
||
|
Support tools
|
||
|
Software
|
||
