Product outline

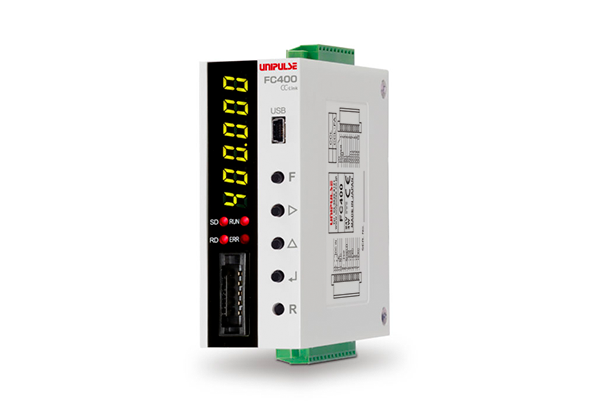

FC400-CCL is a weighing indicator equipped as standard with CC-Link interface. It is ideal for a variety of weighing applications like hopper scales, bagging machines, and level meters.

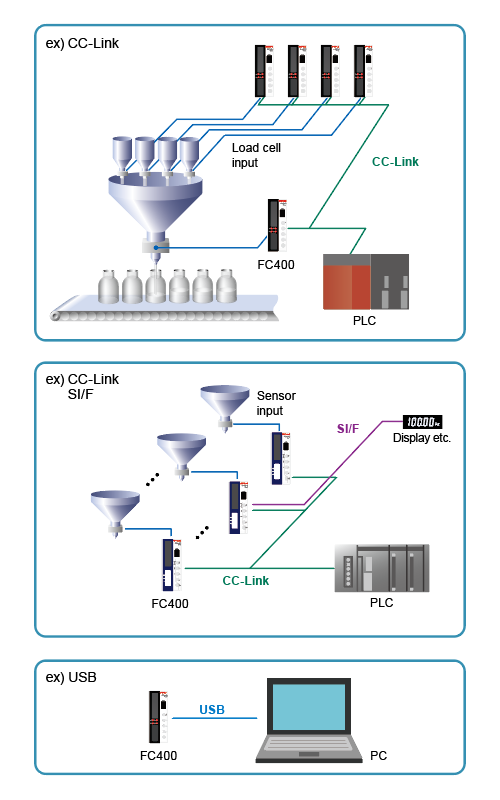

Network with multiple units can be configured easily.
Lightweight and compact body to fit into limited space in a control panel
Light weight & compact body for 35 mm DIN rail mount
Dimensions: 34(W)×88(H)×91(D) mm (Not including projections)
Weight: Approx. 210 g
Various interfaces
High sampling rate & resolution
High display resolution of 1/100000 (max).
Various functions useful for automated weighing systems
■ High performance filter
As it is resistant to vibration, measurement can be performed quickly and precisely.
■ Auto filter adjustment
The filter is automatically adjusted to reduce the noise when the auto adjustment key is pressed.
■ Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of load cells.
■ Multipoint calibration (linearization)
Three additional points can be defined in the middle between zero and span for better linearity.
■ Input conversion value display
The output signal level of the connected load cell can be displayed in mV/V/ for monitor purpose.
■ Basic weighing process control function
Sequential control can be performed without connecting external PLC etc.
Specifications
Analog section｜Display section｜External signal｜Interface｜General specifications｜Attachments
| Analog section | |
| Excitation voltage | DC 5 V±5% Output current: within 90 mA DC 2.5 V±5% Output current: within 45 mA(depending on settings) Ratiometric method (Up to 6 350 Ω load cells can be connected in parallel) |
|---|---|
| Signal input range | -2.5 to 5.1 mV/V |
| Zero adjustment range | Automatic adjustment by digital processing -0.5 to 2.0 mV/V |
| Span adjustment range |
Automatic adjustment by digital processing 0.01 to 3.0 mV/V |
| Linearization function | Up to three point multi-point calibration is possible using linearization function |
| Min. input sensitivity | 0.15 μV/count |
| Accuracy | Non-linearity: within 0.01% FS Zero drift: 0.0002% FS/℃ Typ. Gain drift: 1 ppm/℃ Typ. |
| Filter | Digital low-pass filter: 0.1 to 300 Hz Moving average filter: OFF, 2 to 512 times |
| A/D converter | Speed: 1200 times/sec. Resolution: 24 bit (binary) |
| Display section | |
| Display unit | Character height 8 mm, Numerical display by 7-segment green LED |
|---|---|
| Display value | Up to 6 digits |
| Display frequency | Selectable from 1, 3, 6, 13, 25 times/sec. |
| Status display | RUN, SD, RD, ERR |
| External signal | |
| Output signal (5) |
Transistor’s open collector output Vceo = 30 V, Ic = 50 mA |
|---|---|
| Input signal (3) |
Selectable/configurable Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.). * DC 24 V external power supply is required. |
| Interface | |
| USB | USB interface |
|---|---|
| SIF | SI/F 2-wire type serial interface |
| CCL | CC-Link interface |
| General specifications | |
| Power supply voltage | DC 24 V (±15%) |
|---|---|
| Power consumption | 4 W typ. |
| Operating conditions | Operating temperature range: -10℃ to +50℃ Storage temperature range: -20℃ to +85℃ Humidity: 85% RH or less (non-condensing) |
| Dimensions | 34（W) × 88（H) × 91(D) mm (Not including projections) |
| Weight | Approx. 210 g |
| CE marking certification | EMC Directives EN61326-1 |
| Attachments | |
| Jumper wire | 2 |
|---|---|
| Mini driver | 1 |
| CC-Link connector | 1 |
| Various I/O connector | 2 |
| Quick manual | 2 |
Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
