Product outline

EtherNet/IP is a registered trademark of ODVA.

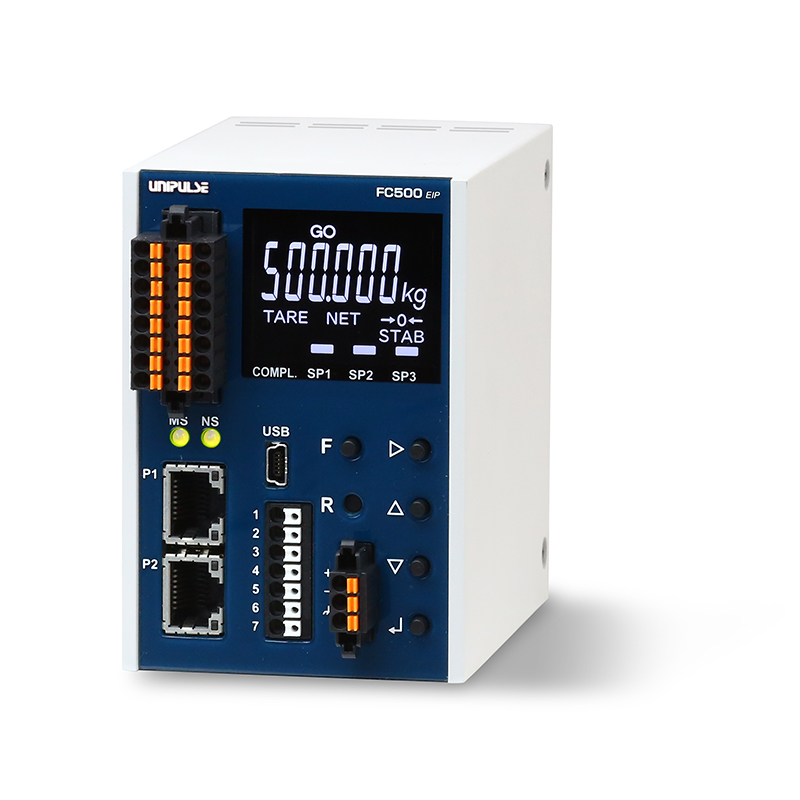

FC500-EIP is a compact type indicator equipped with EtherNet/IP & USB as standard features.
Matches perfectly with every weighing applications such as hopper scale, packer scale, weighing monitor, etc.
It has displayable graph in the pc software, and setup can be done easily.

Lightweight and compact body to fit into limited space in a control panel

Light weight & compact body for 35 mm DIN rail mount
Dimensions: 65(W)×94(H)×108(D) mm (Not including projections)
Weight: Approx. 370 g


Various interfaces

EtherNet/IP、SI/F、USB interfaces is equipped as a standard feature


High sampling rate & resolution
High-Speed A/D conversion and powerful digital processing capability of 1200 times/sec.(Convertible to 300 times/sec.).
High display resolution of 1/100000 (max).



Application software for USB interface(Free software)

With communication through USB interface, logging, graph, display, setting parameters, and calibration can be done.


Various functions useful for automated weighing systems

■ Equipped with data memory function
Latest 100 data of calibration value and error information with clock time are recorded and can be checked via USB interface.

■ Basic weighing process control function
Equipped with weighing sequence function to control feeding/discharge gate.

■ Memory for 32 weight settings
32 different weight settings can be saved in the memory and selected through I/O or interface.
Batch weighing can be performed easily.

■ Equivalent input calibration
Theoretical calibration can be performed easily by registering the capacity and rated output of load cells.

■ Input conversion value display
The output signal level of the connected load cell can be displayed in mV/V for monitor purpose.
Malfunction indicator or faulty sensor can be differentiated easily.

■ Multipoint calibration (linearization)
Three additional points can be defined in the middle between zero and span for better linearity.
Even though the scale has poor linearity, it can be corrected to be a highly accurate scale.


Specifications

Analog section
Excitation voltage DC 5 V±5% Output current: within 90 mA
Ratiometric method (Up to 6 350 Ω load cells can be connected in parallel)
Signal input range -2.5 to +5.1 mV/V
Zero adjustment range Automatic adjustment by digital processing -0.5 to +2.0 mV/V
Span adjustment range Automatic adjustment by digital processing 0.005 to 3.2 mV/V
Linearization function Up to three point multi-point calibration is possible
using linearization function
Min. input sensitivity 0.15 μV/count
Accuracy Non-linearity: within 0.01% FS
Zero drift: 0.0002% FS/℃ Typ.   *When calibrated by 3 mV/V
Gain drift: 1 ppm/℃ Typ.
Filter Digital low-pass filter: 0.1 to 300 Hz
Moving average filter: OFF, 2 to 512 times
A/D converter Speed: 1200 times/sec.(Convertible to 300 times/sec.)
Resolution: 24 bit (binary)
Display section
Display unit Character height 11 mm
Numerical display by liquid crystal display module
Display value Up to 6 digits. Sign:Minus display on the highest digit
Unit selectable t/ g/ kg/ lb/ N/ None
Display frequency Selectable from 1, 3, 6, 13, 25 times/sec.
Status display COMPL./SP1/SP2/SP3/HI/GO/LO/NZ/TARE/NET/HOLD/ZALM/STAB
MS/NS
External signal
Input signal
(5)
Selectable/configurable
<No-voltage contact input>
Input is ON when shorted to COM terminal by contact (relay, switch, etc.) or non contact (transistor, photocoupler, etc.).
<Voltage input plus common/ minus common shared>(specifies at time of order)
Input is ON when a voltage is applied in between to input terminal and COM terminal by contact (relay, switch, etc.) or non contact (transistor, photocoupler, etc.).
Rated voltage:DC 27.6 V or less
“ON”:when the voltage is above DC 9 V (Load Current:approx. 10 mA at DC 24 V),
“OFF”:below DC 3 V.
Output signal
(5)
Selectable/configurable
PhotoMOS relay output (common for sinc and source type)
Vceo = 30 V、 Ic = 50 mA
Interface
EIP EtherNet/IP interface
SIF SI/F 2-wire type serial interface
USB USB interface
General specifications
Power supply voltage DC 24 V (±15%)
Power consumption 6 W typ.
Operating conditions Operating temperature range: -10 to +50℃
Storage temperature range: -20 to +85℃
Humidity: 85% RH or less (non-condensing)
Dimensions 65(W) × 94(H) × 108(D) mm (Not including projections)
Weight Approx. 370 g
CE marking certification EMC Directives EN61326-1
Attachments
Operation manual 2
Jumper wire 2
Power connector 1
Mini driver 1
I/O connector 1
Optional accessories
CN7B Power connector (Same as the attachment)
CN7D I/O connector (Same as the attachment)




Please note that there are possibilities of individual differences in a color tone on display devices such as LEDs, fluorescent display tubes and LCDs due to manufacturing process or production lots.
