Product outline

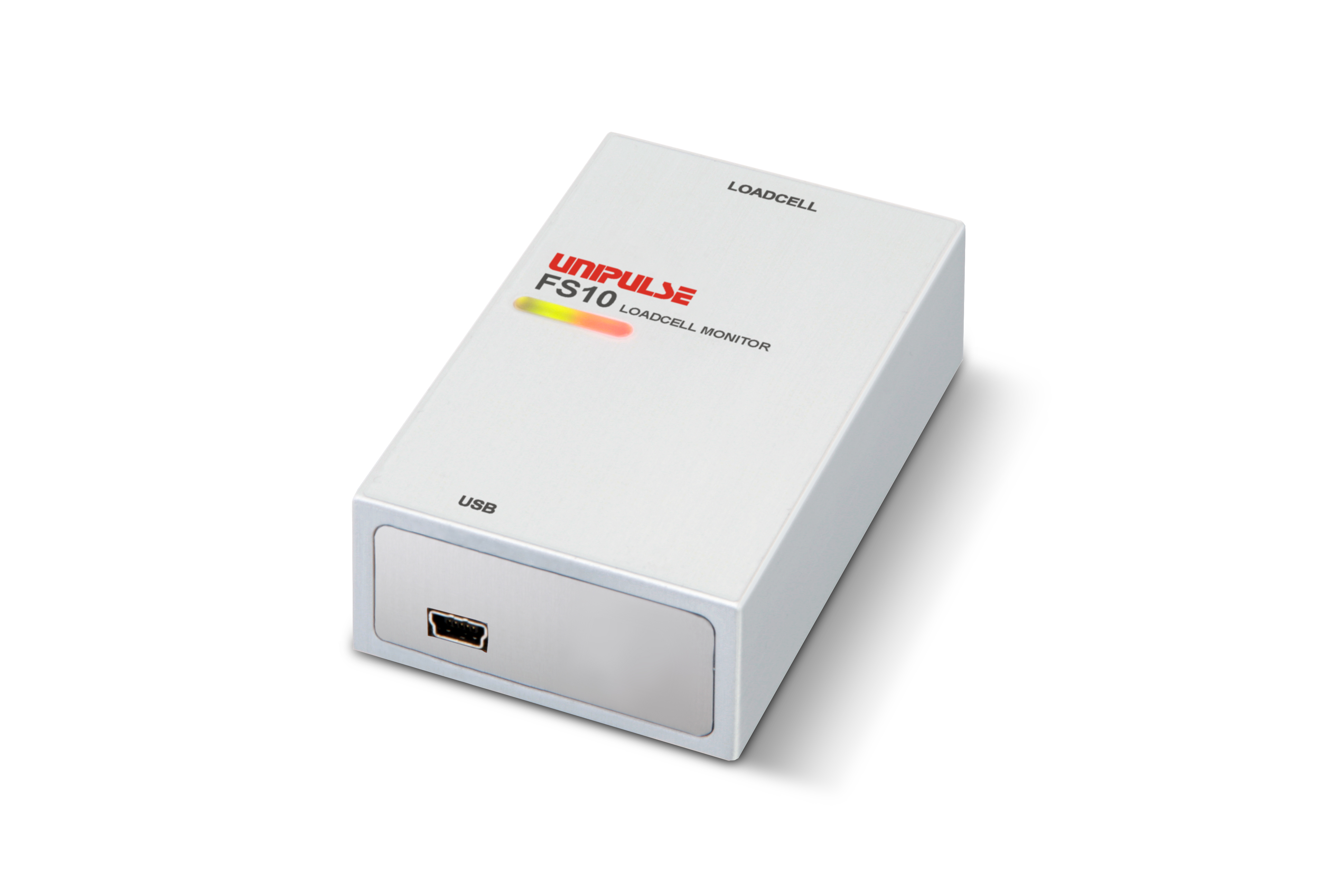

FS10 is a digitizer module for strain gauge type sensors for force, pressure, and displacement measurements. A very accurate measurement can be achieved with the high sampling rate of 1200 sps. This product is ideal for test and experiment applications.

  • 1200 times/sec. high-speed digital processing
  • Pass/fail test (HH・HI・LO・LL)
  • Easy to perform the initial setup and calibration
  • Up to 10000 measurement and status data can be recorded
  • The module is powered by USB, and it can supply excitation voltage to the connected load cell as well
  • The dedicated PC software for the device is available


Compact, light, and simple to use!

With FS10, you can monitor the load cell outputs on PC easily.


USB software

You can simply plug a load cell into FS10 via a cable and connect it to PC via USB.
(Once PC is connected to FS10, it will start downloading the USB driver automatically if it is connected to Internet).

■ Pass/fail test
 High & low limit function: HH/HI/LO/LL
■ Easy to perform the initial setup and calibration
 Using the software, settings can be saved and edited on PC, and calibration can be performed as well.
■ Waveform display
 The waveform of force can be monitored in real time.
 You can see if the real-time value is within the high/low, and the data of waveform can be saved on PC as well.
■ Data recoding
 Up to 10000 measurement and status (e.g. HI, LO, etc…) data can be recorded.
 Interval logging is available, and it is useful for long-hour loading tests and so on.
 With the OK/NG (Not OK) count function, you can review results of pass/fail tests as well.

<Waveform display>

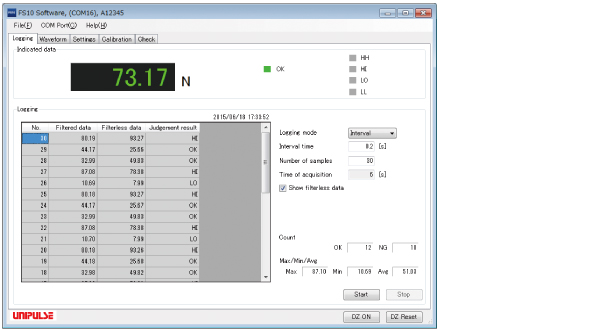

<Data logging>

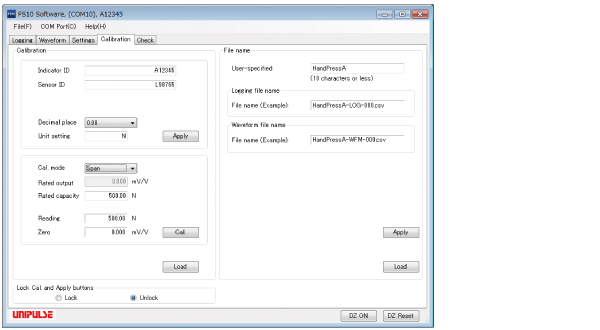

<Setup & calibration>


Specifications

Analog section
Excitation voltage DC 5 V±10%, Output current within 30 mA
Signal input range -3.0 to +3.0 mV/V
Accuracy Non-linearity: within 0.02% FS±1 digit
Zero drift: within 0.5 μV/℃
Gain drift: within 0.01%/℃
Digital low-pass filter fc=OFF, 2, 4, 6, 8, 10, 30, 50, 100 Hz (selectable)
A/D converter Speed: 1200 times/sec. (Same for data output)
Resolution: 24 bit (binary)
Approx. 1/30000 with respect to 3 mV/V

Display section
LED status light LED (Red): Power supply/alarm status
LED (Green): Loaded condition

Interface
USB USB interface

General performance
Power supply DC 5 V (USB bus power)
Power consumption 1 W typ.
Operating conditions Temperature: Operation: -10℃ to +40℃, Storage: -40℃ to +80℃
Humidity: 80% RH or less (non-condensing)
Dimensions 50(W) × 23(H) × 80(D) mm (Not incliding projections)
Weight Approx. 120 g

Attachments
Setup guide 1
Cable for connecting load cell 1 m 1
USB cable (A-miniB type) 1.8 m 1


Optional accessories

Model
CA81-USB USB cable (A-miniB type) 1.8 m
CA903Y30 Cable with waterproof plastic connector at one-end 0.3 m
CA903Y31 Cable with waterproof plastic connector at one-end 3 m
CA904030 Waterproof plastic connector-PRC connector conversion relay cable 0.3 m
CA904031 Waterproof plastic connector-PRC connector conversion relay cable 3 m
CN90 Waterproof plastic connector for load cell
