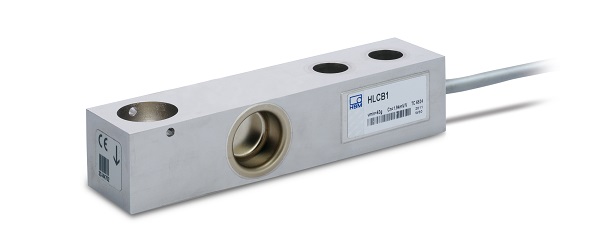

Product outline

Most appropriate for load control of platform scales, tank scales, etc.

● Capacity 110 kg/ 220 kg/ 550 kg/ 1100 kg/ 1760 kg/ 2.2 t/ 4.4 t/ 10 t
● High accuracy, constructed of stainless steel, hermetically sealed

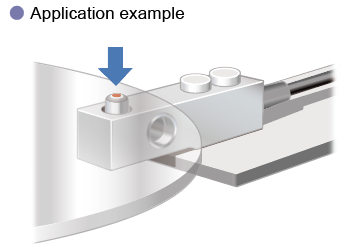

● Applications: Platform scales, tank scales, etc.



Specifications

Model HLCB1
-110KG		 HLCB1-220KG,
HLCB1-550KG,
HLCB1-1100KG,
HLCB1-1760KG		 HLCB1-2.2T HLCB1-4.4T HLCB1-10T
Rated
capacity		 110 kg 220 kg, 550 kg,
1100 kg, 1760 kg		 2.2 t 4.4 t 10 t
Rated
output		 1.94 mV/V±0.5% 1.94 mV/V
±0.1%		 2.00 mV/V
±0.5%
Safe
overload		 150% R.C.
Maximum safe side overload 100% R.C.
Non-
linearity		 0.05%
R.O.		 0.04% R.O. 0.0170% R.O. 0.05%
R.O.
Hysteresis 0.05%
R.O.		 0.04% R.O. 0.0166% R.O. 0.05%
R.O.
Creep 0.05%
R.O./30
min		 0.04%
R.O./30 min		 0.0166%
R.O./30 min		 0.05%
R.O./30
min
Compensated temperature range -10 to +40℃
Temperature effect on
zero		 0.04% R.O./10℃ 0.0140%
R.O./10℃		 0.04%
R.O./10℃
Temperature effect on
span		 0.042%
R.O./
10℃		 0.04%
R.O./10℃		 0.0140%
R.O./10℃		 0.042%
R.O./10℃
Input
resistance		 350 to
480 Ω		 350 Ω or more 350 to 480 Ω
Output
resistance		 350±2 Ω 350±0.12 Ω 350±2 Ω
Maximum
excitation
voltage		 15 V(AC, DC)
Insulation
resistance		 5000 MΩ or more
Cable φ5.4 6-conductor shield cable
3 m (220 to 1760 kg), 6 m (2.2 t to 10 t)
Cable end: 7 wires
Cable color
code		 ＋EXC：BLue
＋S：Green
－S：Gray
－EXC：Black
＋SIG：White
－SIG:Red
SHIELD
Load cell
material		 Stainless steel
Deflection at
rated		 0.5 mm 220KG：0.5 mm
550KG：0.5 mm
1100KG：0.5 mm
1760KG：1.4 mm		 0.5
mm		 0.5
mm		 0.5
mm
Weight 0.9 kg 220KG：0.9 kg
550KG：0.9 kg
1100KG：0.9 kg
1760KG：0.9 kg		 1.6 kg 2.2 kg 6.2 kg

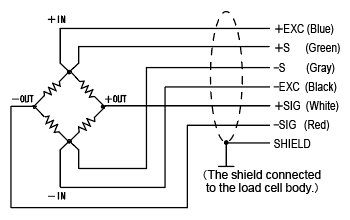

Wiring diagram

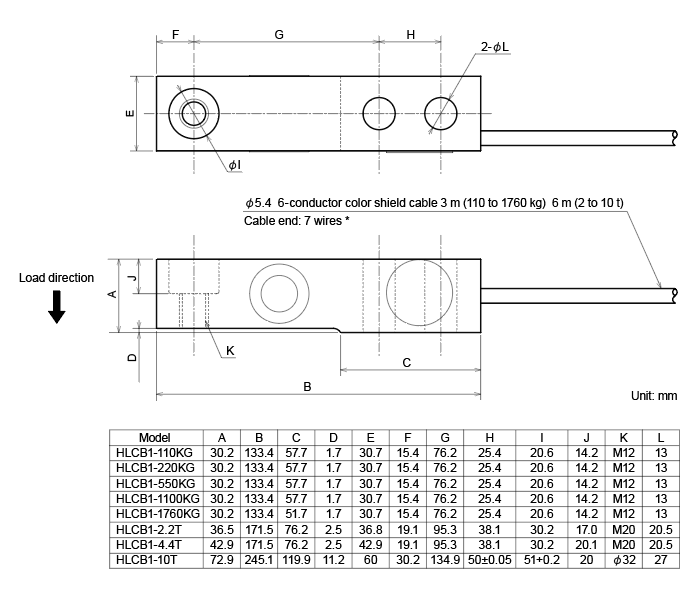

External dimension
