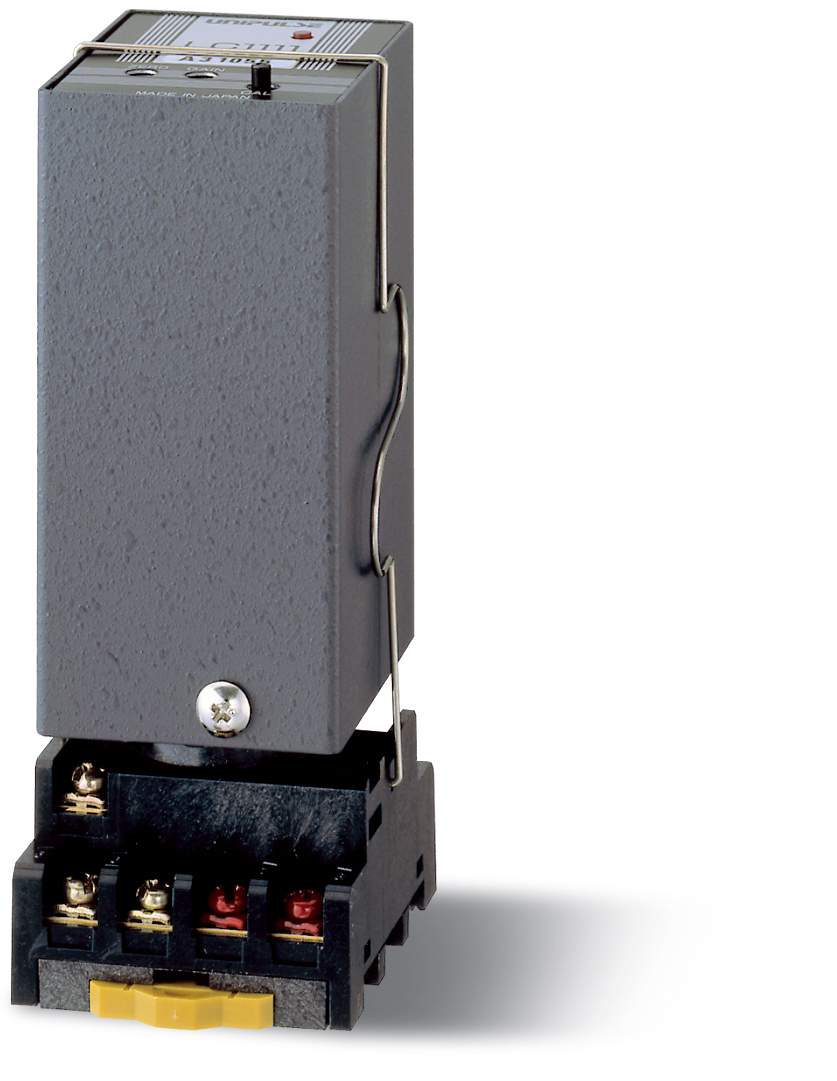

Product outline
High-performance ultra-small load cell converter. These are amplifiers for instrumentation that can stably amplify extremely-small voltage output from the load cell. 100 V AC or 12 V to 24 V DC can be specified when ordering. Equipped are the bridge excitation power supply, a zero gain adjustment circuit, calibration function, voltage/current output function and a low-pass filter.
Specifications
| Excitation voltage | DC 5 V±5%, Output current: within 60 mA (Up to 4 350 Ω load cells can be connected in parallel.) |
|---|---|
| Zero adjustment range | ±0.4 mV/V (at bridge resistance: 350 Ω) 20 turn trimmer potentiometer Expandable by external resistance connection if the above range is exceeded. |
| Gain adjustment range | 0.6 mV/V to 1.4 mV/V (HI range) 1.3 mV/V to 3.2 mV/V (LO range) Range selectable with the internal jumper. |
| Accuracy |
Non-linearity: within 0.02% FS Zero drift: within 1 μV/°C RTI Gain drift: within 0.01%/°C Noise: within 1 μVp-p RTI (2 Hz) |
| Output signal | Voltage output: 0 to ±10 V, Load resistance: 2 kΩ or more Current output: 4 to 20 mA, Load resistance: 500 Ω or less |
| Low-pass filter | Low-pass filter (-6 dB/oct.) 2 Hz/-3 dB |
| Calibration value | 1 mV/V |
| Power supply voltage | AC 100 V ±10%, 50/60 Hz DC 12 to 24 V ±15% (LC1111[DC]) It specifies at time of order. |
| Power consumption | AC spec:2 VA typ., DC spec:2 W typ. |
| Operating conditions | Temperature: Working temperature range -10 to +40°C Humidity: 85% RH or less (non-condensing) |
| Dimensions | 38(W) × 93.5(H) × 50(D) mm |
| Weight | Approx. 300 g |
| Attachments |
Special-purpose socket: 1 Fixing spring: 1 Adjusting screwdriver: 1 Operation manual: 1 |
Option
| Model | |
| LC1111(DC) | DC power spec. option for LC1111 |
|---|---|

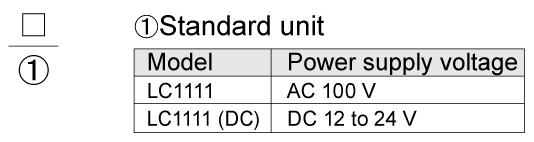

Structure of product code
