Product outline

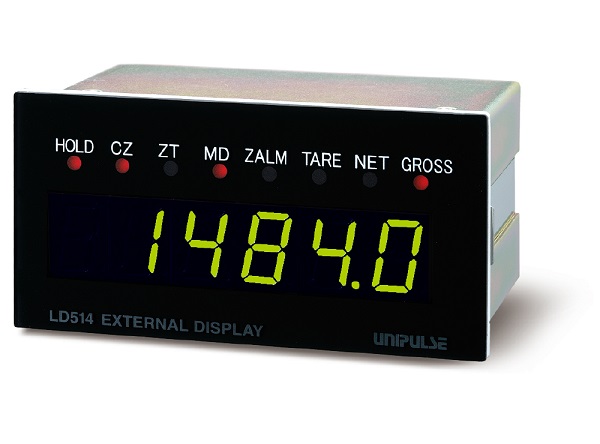

LD514 is better equipped with required functions in a body as compact as a business card. This is a display unit that can be easily placed in your desired location as an indicator with no display section or for control purposes remotely.
Specifications
Display section｜Setting section｜External input｜General specifications｜Attachments
| Display section | |
| Display device | Green numerical display LED |
|---|---|
| Display digit number | 5 digits, Character height 14 mm, 7 segments and decimal point, ±99999 (only minus sign displayed) |
| Decimal point position | Interlocking with indicator |
| Status display | Green 7-segment LED (1 pc) (minus sign), Red LED (8 pcs) (HOLD, CZ, ZT, MD, ZALM, TARE, NET, GROSS) |
| Unit | No silk, seals included (kg/ g/ t/ N/ lb) |
| Setting section | |
| Setting function | Setting by rotary DIP switches |
|---|---|
| Numerical indicator data select | Indicator indicated value, gross weight, net weight, tare weight |
| Self mode select | Display test, version display available |
| Indicator select | ･ Load cell Indicator/digital indicator switching over (Status display can be switched over.) ･ Load cell Indicator follow-up display: Standard mode and LD515 compatibility mode can be switched over. |
| External input | |
| Interface | SIF: 2-wire type serial interface |
|---|---|
| External input | Hold signal |
| Connector shape | ･ Cage clamp terminal block, 4 pins 1…HOLD, 2…COM, 3…SI/F, 4…SI/F ･ M3 screw terminal block, 3 pins 1…AC, 2…AC, 3…F.G |
| General specifications | |
| Power supply voltage | AC 100 to 240 V (+10% -15%), 50/60 Hz |
|---|---|
| Power consumption | 10 VA typ. |
| Fuse used | 1 A |
| Operating conditions | Working temperature range: -10°C to +40°C; Storage temperature range: -40 to +80°C Humidity: 85% RH or less (non-condensing) |
| Dimensions | 96(W) × 48(H) × 61(D) mm |
| Weight | 405 g |
| Attachments | |
| Power cable (3 m) | 1 |
|---|---|
| Mini-driver for terminal block connection | 1 |
| Unit seal | 1 |
| Operation manual | 1 |
Optional accessories
| Model | |
| CAAC2P-B3 | AC Supply cord 3 m |
|---|---|
| CAAC3P-CEE7/7-B2 | AC Supply cord (Voltage resistance:250 V) 2 m |
