Product outline

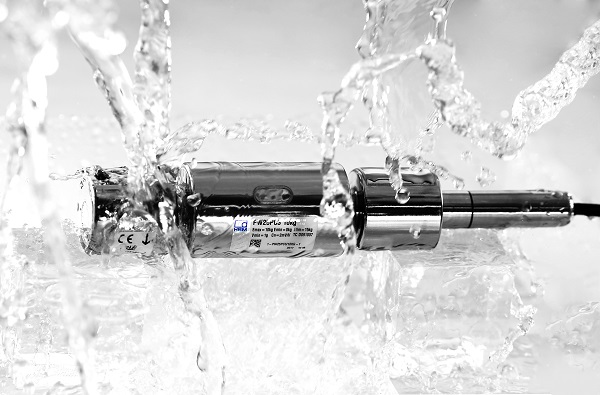

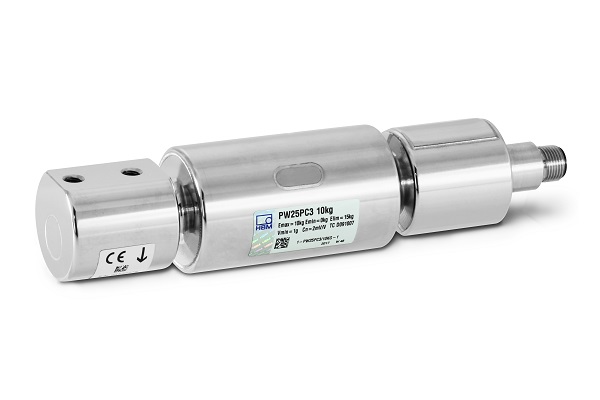

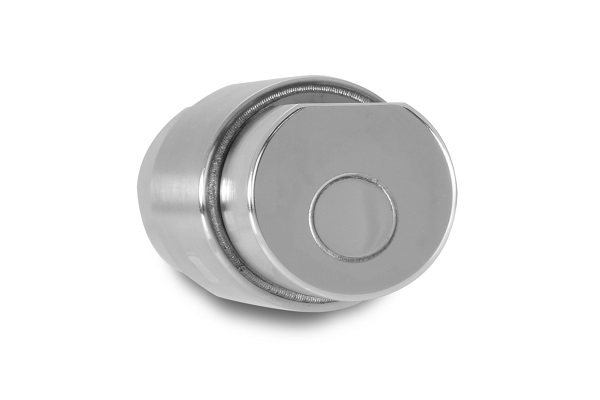

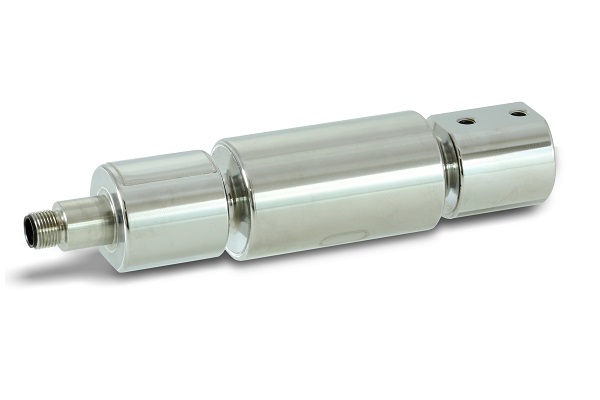

Stainless steel single point load cell. Waterproof & high-pressure washable load cell, with sanitary design. Clean round shape design thus water & dust proof! Built-in safe overload prevention mechanism!

● Capacity 10/ 20 kg
● Construction material: Stainless steel
● Waterproof & high-pressure washable load cell, with sanitary design.
● Suitable for small weight measurement

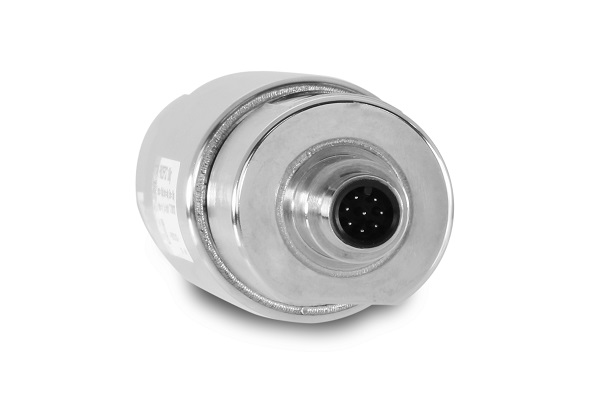

● Connector specs for easy exchange (cable sold separately)

Specifications

Model PW25P-10KG PW25P-20KG
Rated capacity 10 kg 20 kg
Rated output 2.0±0.2 mV/V
Limit load at 20 mm
eccentricity		 1000% R.C.
Service load at max.
120 mm eccentricity		 150% R.C.
Maximum safe side
overload		 200% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Compensated temperature
range		 -10 to +40℃
Safe temperature range -10 to +50℃
Temperature effect on zero 0.0140% R.O./10℃
Temperature effect on span 0.0175% R.O./10℃(+20 to +40℃),
0.0117% R.O./10℃(−10 to +20℃)
Input resistance 300 to 500 Ω
Output resistance 300 to 500 Ω
Recommended excitation
voltage		 1 to 12 V
Insulation resistance 1000 MΩ or more
Degrees of protection IP68, IP69K*
Load cell material Stainless steel
Deflection at rated 0.19 mm 0.18 mm
Natural frequency 210 Hz 315 Hz
Maximum platform size 400 × 400 mm
Weight 0.8 kg
Cleaning temperature Up to 120°C in 10 minutes

* IP69K:water at high pressure ,steam cleaner
(Based on DIN 40050, part 9 specifications, for road vehicles.)

Optional accessories

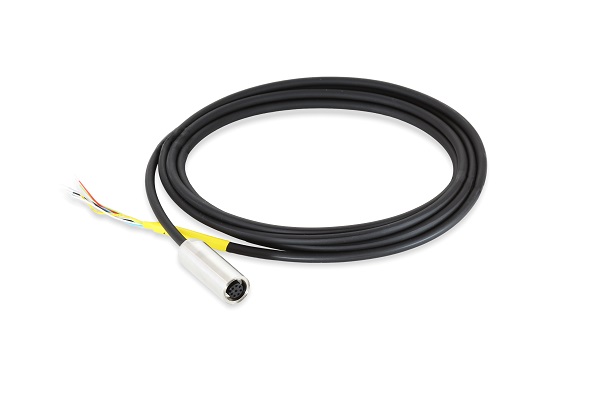

・KAB175-3 : φ5.2 6-conductor hygiene design cable 3 m
Cable end: 7 wires

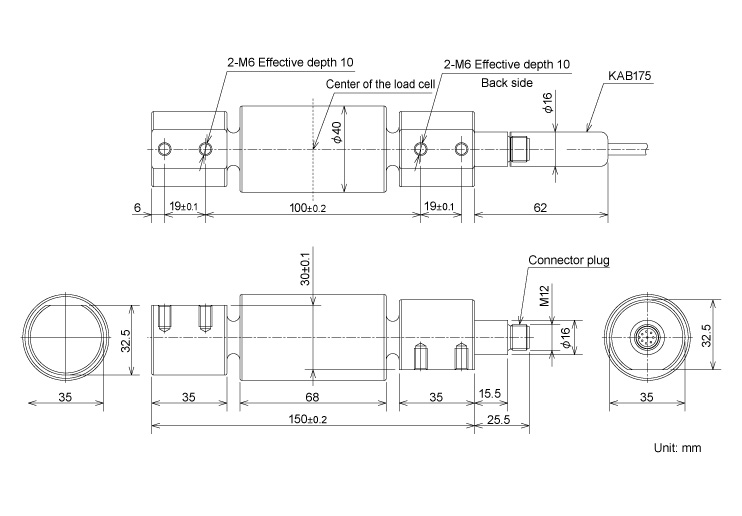

External dimension
