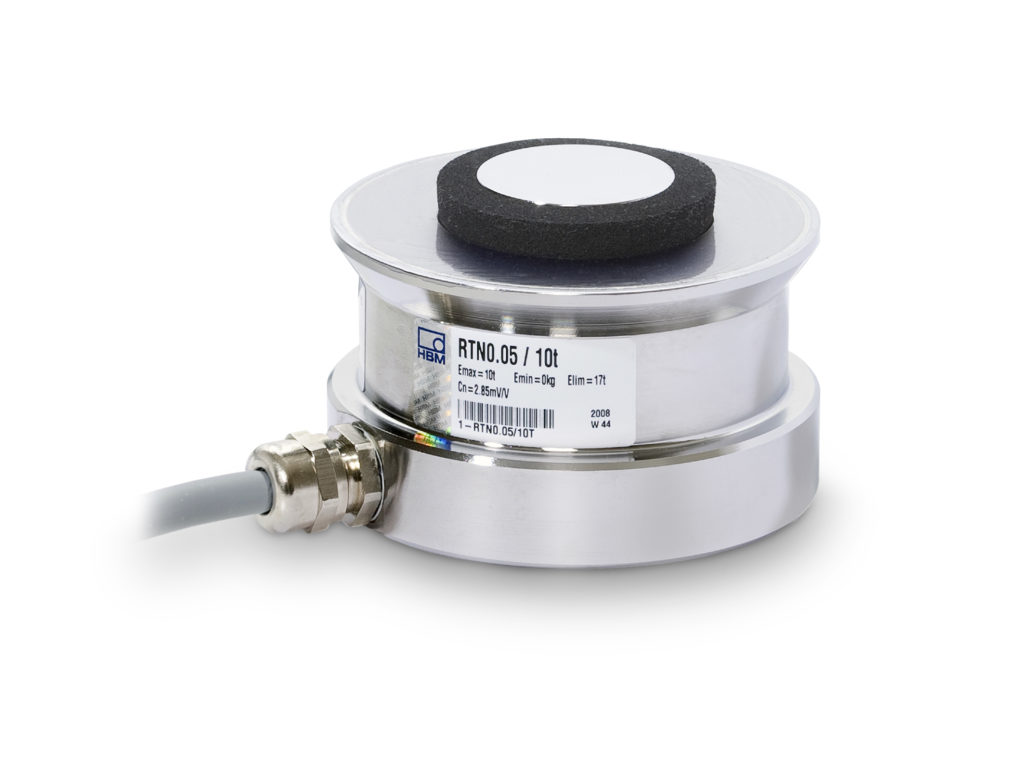

Thin, high accuracy stainless steel load cell.
Supports wide measuring range! (1-470T)

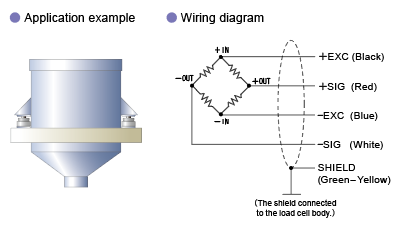

Can be used in tank, truck scale, etc!

Capacity 1 t/ 2.2 t/ 4.7 t/ 10 t/ 15 t/ 22 t/ 33 t/ 47 t/ 68 t/ 100 t/ 150 t/ 220 t/ 330 t/ 470 t
Construction material: Stainless steel
Laser welded closed structure
Degrees of protection IP68

RTNC3-1T, 2.2T, 4.7T, 10T, 15T

Model	RTNC3- 1T	RTNC3- 2.2T	RTNC3- 4.7T	RTNC3- 10T	RTNC3- 15T
Rated capacity	1 t	2.2 t	4.7 t	10 t	15 t
Rated output	2.85 mV/V±0.1%
Maximum safe overload	4 t	9 t	19 t	40 t	60 t
Non-linearity	0.02% R.O. typ.
Hysteresis	0.02% R.O. typ.
Compensated temperature range	-10 to +40℃
Safe temperature range	-30 to +80℃
Temperature effect on zero	0.007% R.O./10℃
Temperature effect on span	0.008% R.O./10℃ typ.
Input resistance	4450±100 Ω
Output resistance	4010±0.5 Ω
Recommended excitation voltage	5 V
Excitation voltage range	5 to 30 V (Max.60 V)
Insulation resistance	20 GΩ or more
Degrees of protection	IP68
Cable	φ6.5 4 conductor shield cable, Cable end: 5 wires
Loadcell material	Stainless steel
Deflection at rated	0.13 mm	0.12 mm	0.12 mm	0.17 mm	0.18 mm
Weight	0.6 kg	0.6 kg	0.7 kg	1.2 kg	1.3kg

RTNC3-22T, 33T, 47T, 68T, 100T

Model	RTNC3- 22T	RTNC3- 33T	RTNC3- 47T	RTNC3- 68T	RTNC3- 100T
Rated capacity	22 t	33 t	47 t	68 t	100 t
Rated output	2.85 mV/V±0.1%
Maximum safe overload	88 t	130 t	190 t	270 t	400 t
Non-linearity	0.02% R.O. typ.
Hysteresis	0.02% R.O. typ.
Compensated temperature range	-10 to +40℃
Safe temperature range	-30 to +80℃
Temperature effect on zero	0.007% R.O./10℃
Temperature effect on span	0.008% R.O./10℃ typ.
Input resistance	4450±100 Ω
Output resistance	4010±0.5 Ω
Recommended excitation voltage	5 V
Excitation voltage range	5 to 30 V (Max.60)
Insulation resistance	20 GΩ or more
Degrees of protection	IP68
Cable	φ6.5 4 conductor shield cable, Cable end: 5 wire
Loadcell material	Stainless steel
Deflection at rated	0.21 mm	0.25 mm	0.33 mm	0.35 mm	0.45 mm
Weight	1.3 kg	2.1 kg	4.3 kg	4.8 kg	7.0 kg

RTNC3-150T, 220T, 330T, 470T

Model	RTNC3- 150T	RTNC3- 220T	RTNC3- 330T	RTNC3- 470T
Rated capacity	150 t	220 t	330 t	470 t
Rated output	2.85 mV/V±0.1%
Maximum safe overload	600 t	770 t	1100 t	1500 t
Non-linearity	0.02% R.O. typ.
Hysteresis	0.02% R.O. typ.
Compensated temperature range	-10 to +40℃
Safe temperature range	-30 to +80℃
Temperature effect on zero	0.007% R.O./10℃
Temperature effect on span	0.008% R.O./10℃ typ.
Input resistance	4450±100 Ω
Output resistance	4010±0.5 Ω
Recommended excitation voltage	5 V
Excitation voltage range	5 to 30 V (Max.60)
Insulation resistance	20 GΩ or more
Degrees of protection	IP68
Cable	φ6.5 4 conductor shield cable, Cable end: 5 wire
Loadcell material	Stainless steel
Deflection at rated	0.57 mm	0.67 mm	0.80 mm	1.00 mm
Weight	8.6 kg	22 kg	29 kg	50 kg
