Product outline

● Capacity 50 kg/ 100 kg/ 200 kg/ 500 kg/ 1 t/ 2 t
● Constructed of stainless steel, Lightweight

Specifications

Model S40A-
50KG
S40A-
100KG
S40A-
200KG
S40A-
500KG
S40A-
1T
S40A-
2T
Rated capacity 50 kg 100 kg 200 kg 500 kg 1 t 2 t
Rated output 2 mV/V±0.25%
Safe overload 150% R.C.
Zero balance 0±0.01 mV/V
Non-linearity 0.0180% R.O.
Hysteresis 0.0170% R.O.
Creep 0.0166% R.O./30 min
Compensated
temperature
range
-10 to +40℃
Safe temperature range -30 to +70℃
Temperature
effect on zero
0.0170% R.O./10℃
Temperature
effect on span
0.0140% R.O./10℃
Input
resistance
350 Ω or more
Output
resistance
350±1.5 Ω
Recommended excitation
voltage
5 V
Maximum excitation voltage 12 V
Insulation
resistance
5000 MΩ or more
Degrees of
protection
IP68
Cable φ5.4 6 conductor shield cable 7.6 m Cable end: 7 wires
Load cell
material
Stainless steel
Deflection at
rated
0.15 mm ±15% 0.25 mm ±15% 0.38 mm ±15%
Weight 0.6 kg 0.7 kg 1.1 kg 1.7 kg
Wiring Diagram

Wiring Diagram

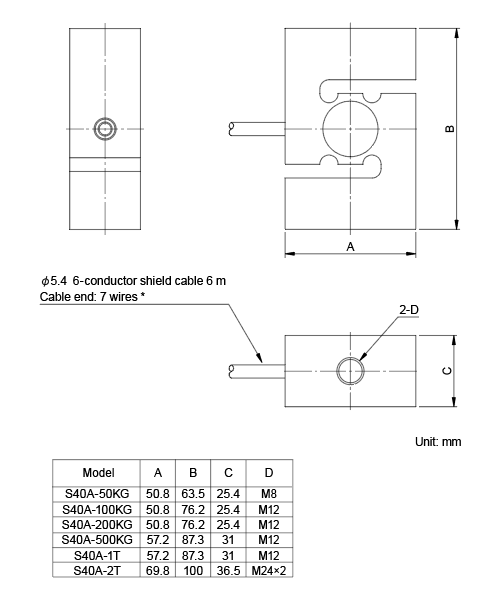

External dimension

Model A B C D
S40A-50KG 50.8 63.5 25.4 M8
S40A-100KG 76.2 M12
S40A-200KG
S40A-500KG 57.2 87.3 31
S40A-1T
S40A-2T 69.8 100 36.5 M24×2
