Product outline

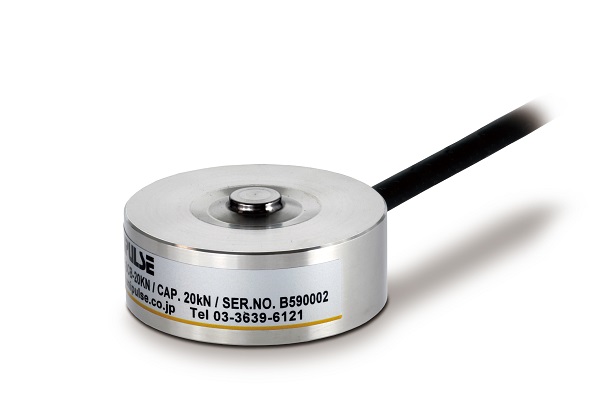

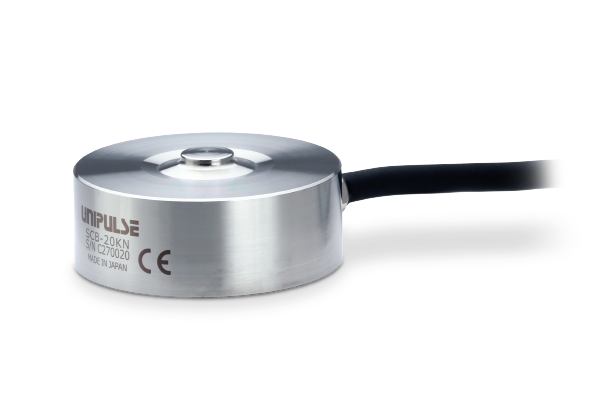

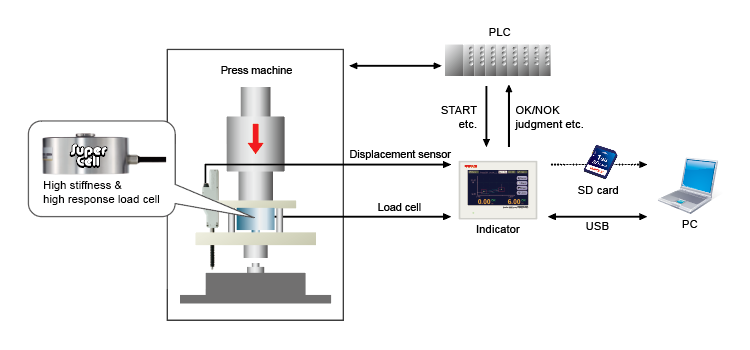

“Hardly breakable!” – load cell with an innovative concept! A strain gauge sensor with phenomenal stiffness and responsiveness.
■Capacity 100 N/ 200 N/ 500 N/ 1 kN/ 2 kN/ 5 kN/ 10 kN/ 20 kN/ 50 kN/ 100 kN/ 200 kN
■Phenomenal stiffness is achieved for a strain gauge type sensor!

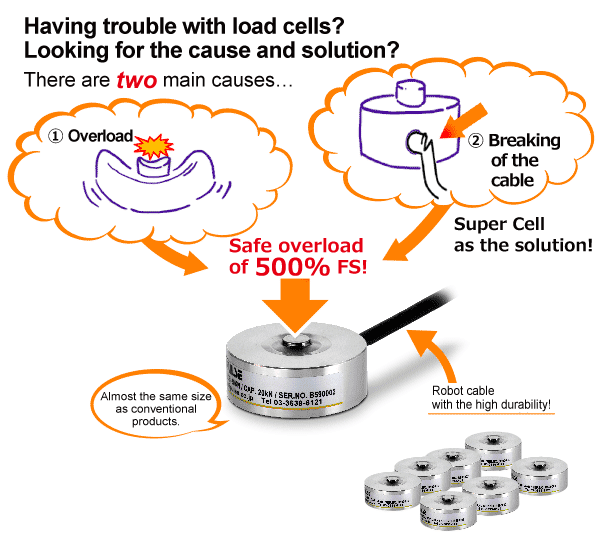

■Safe overload of 500%

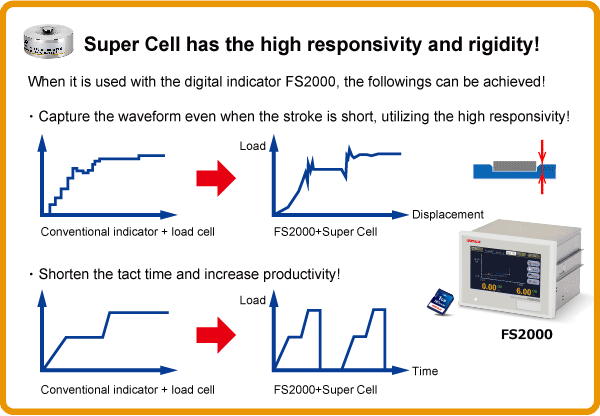

■High responsiveness
Lineup (100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, 200kN)
Specifications
Model | SCB-□KN □Rated capacity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Rated capacity | 100 N, 200 N, 500 N |
1 kN, 2 kN, 5 kN,10 kN, 20 kN, 50 kN, 100 kN, 200 kN |
|||||||||
Rated output | 0.4 mV/V ±0.2% *Spec Changed |
0.4 mV/V±0.1% | |||||||||
Safe overload | 500% R.C. | ||||||||||
Zero balance | ±1% R.O. *Spec Changed |
±0.3% R.O. *Spec Changed | |||||||||
Non-linearity | 0.2% or less R.O. | ||||||||||
Hysteresis | 0.2% or less R.O. | ||||||||||
Repeatability | 0.1% or less R.O. | ||||||||||
Compensated temperature range |
-10 to +60℃ | ||||||||||
Safe temperature range |
-20 to +70℃ | ||||||||||
Temperature effect on zero |
0.015% R.O./℃ or below | ||||||||||
Temperature effect on span |
0.01% R.O./℃ or below | ||||||||||
Input resistance | Approx. 700 Ω |
Approx. 1000 Ω | |||||||||
Output resistance | Approx. 700 Ω |
Approx. 1000 Ω | |||||||||
Recommended excitation voltage |
5 V | 10 V | |||||||||
Max. excitation voltage |
7.5 V | 15 V | |||||||||
Insulation resistance (DC 50 V) |
1000 MΩ or more | ||||||||||
Deflection at rated capacity |
0.015 mm | 1kN: 0.015 mm 2kN: 0.020 mm 5kN: 0.025 mm 10kN: 0.025 mm 20kN: 0.035 mm 50kN: 0.065 mm 100kN: 0.100 mm 200kN: 0.100 mm |
|||||||||
Natural frequency | 40 kHz | 1kN, 2kN, 5kN, 10kN, 20kN: 26 kHz 50kN, 100kN: 15 kHz 200kN: 8 kHz |
|||||||||
Load cell material | Stainless steel | ||||||||||
Weight | 20 g | 1kN, 2kN, 5kN: 130 g 10kN, 20kN: 400 g 50kN: 2.0 kg 100kN: 2.3 kg 200kN: 8.2 kg |
|||||||||
Cable color code | +EXC : Red +S : Yellow -S : Orange -EXC : Black +SIG : Green -SIG : White SHIELD : Blue |
||||||||||
RoHS directives | 2011/65/EU (EU)2015/863 |
Please note that specifications or designs may vary due to our continuous product improvement activities.

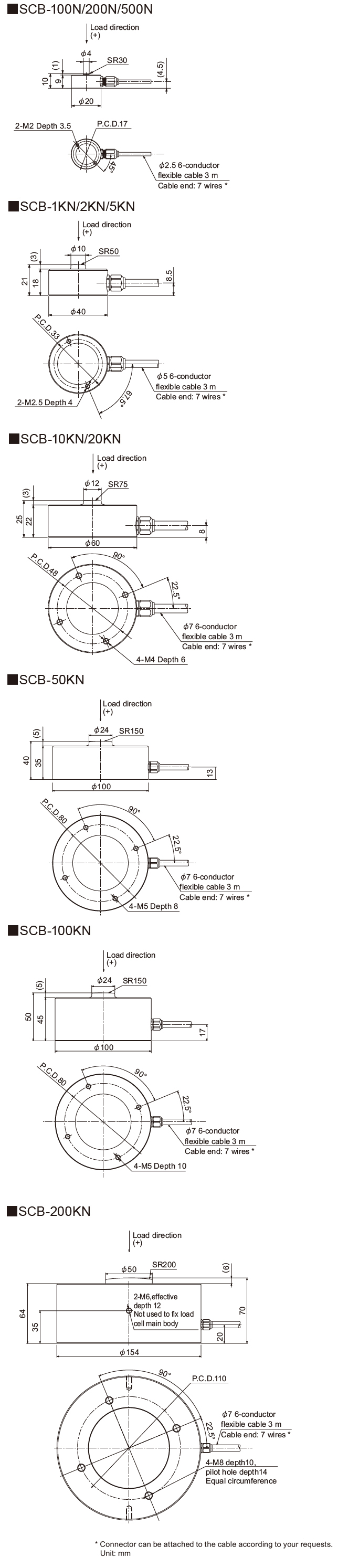

External dimension
