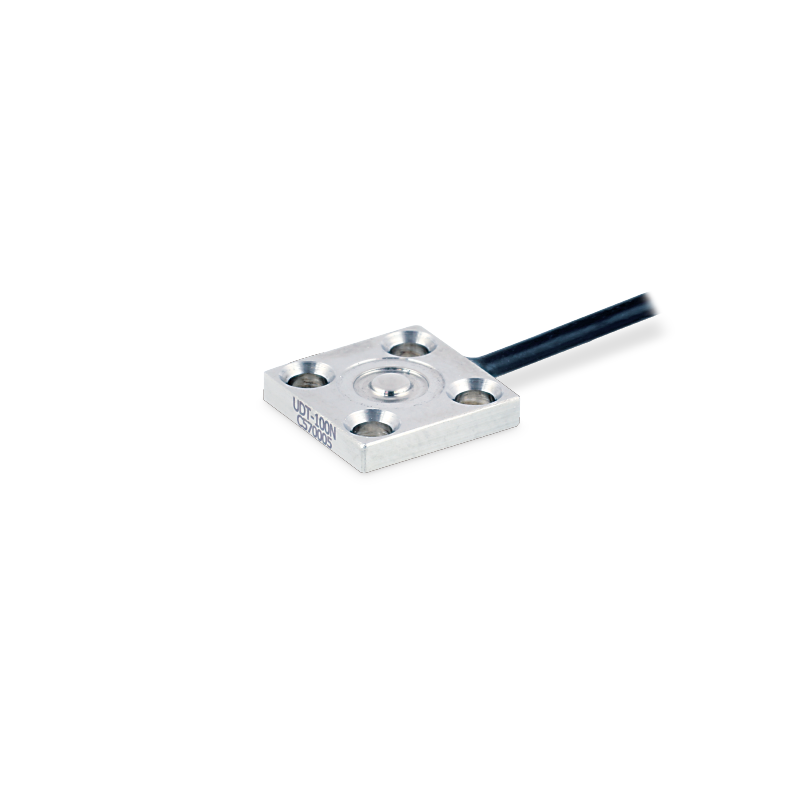

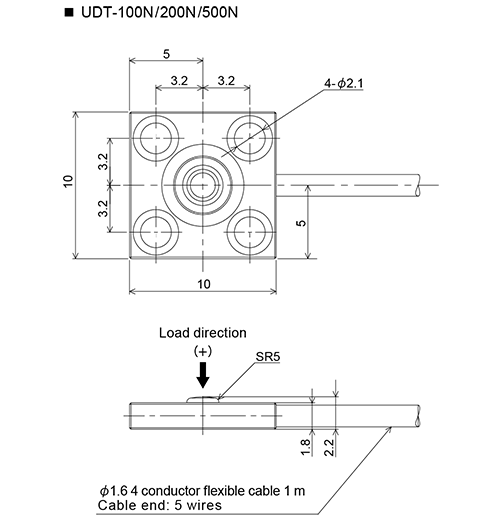

Only 2.2 mm in height!
Can be secured with countersunk screws, allowing stable measurements

● Can be Installed in small spaces inside equipment or device
● Load distribution measurement available by arranging multiple units

Model	UDT-100N	UDT-200N	UDT-500N
Rated capacity	100 N	200 N	500 N
Rated output	Approx. 1.0 mV/V
Safe overload	150% R.C.
Zero balance	±10% R.O.
Non-linearity	0.5% or less R.O.
Hysteresis	0.5% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.1% R.O./10℃ or below
Temperature effect on span	0.1% R.O./10℃ or below
Input resistance	Approx. 350 Ω
Output resistance	Approx. 350 Ω
Recommended excitation voltage	2.5 V
Maximum excitation voltage	7.5 V
Insulation resistance (DC 50 V)	1000 MΩ or more

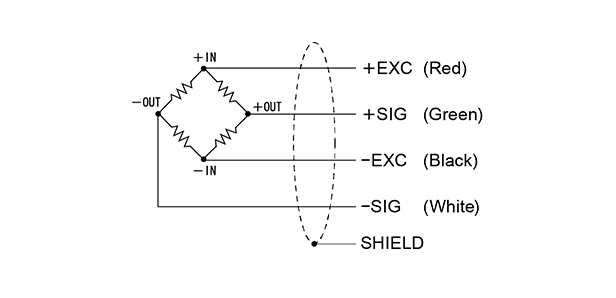

Cable	φ1.6 4 conductor flexible cable (1 m) Cable end: 5 wires
Load cell material	Stainless steel
Deflection at rated	0.004 mm
Natural frequency	160 kHz
Weight	Approx. 1 g
RoHS directives	2011/65/EU (EU)2015/863
