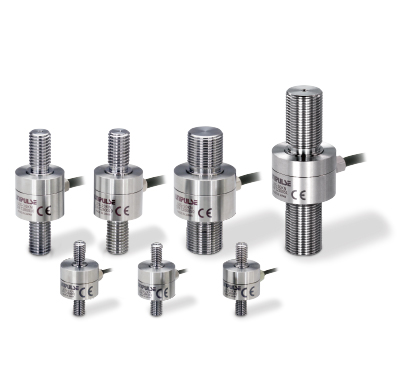

Product outline

Hardly any interference from torsion & less impact on accuracy due to lateral load too!
Easy-to-install threaded-type with male screws is newly released!

● Capacity 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN
● As threaded with male screws on both ends,
and low-profile nuts come with, it’s easy to mount by double nut
● Measure both tension & compression load
● The height is short as 40 to 92 mm;
this load cell does not block other equipment
(1 to 5kN: 40 mm, 10 to 20kN: 70 mm, 50kN-S:70 mm, 50kN:92 mm)



Installation example

Installation method

Specifications

■UIS-1KN、UIS-2KN、UIS-5KN

Model UIS-1KN UIS-2KN UIS-5KN
Rated capacity 1 kN 2 kN 5 kN
Rated output Approx. 1.0 mV/V
Safe overload 300% R.C.
Zero balance ±10% R.O.
Non-linearity 0.2% or less R.O.
Hysteresis 0.2% or less R.O.
Repeatability 0.1% or less R.O.
Compensated temperature range -10 to +60℃
Safe temperature
range
-20 to +70℃
Temperature effect on
zero
0.5% R.O./10℃ or below
Temperature effect on
span
0.5% R.O./10℃ or below
Input resistance Approx. 1000 Ω
Output resistance Approx. 1000 Ω
Recommended
excitation voltage
5 V
Maximum excitation
voltage
7.5 V
Insulation resistance
(DC 50 V)
1000 MΩ or more
Cable φ2.5 6 conductor flexible cable (3 m)
Cable end: 7 wires
Load cell material Stainless steel
Deflection at rated 0.015 mm 0.014 mm 0.021 mm
Natural frequency 2 kHz 3 kHz 5 kHz
Weight Approx. 30 g

■UIS-10KN、UIS-20KN、UIS-50KN、UIS-50KN-S

Model UIS-10KN UIS-20KN UIS-50KN UIS-50KN-S
Rated capacity 10 kN 20 kN 50 kN 50 kN
Rated output Approx. 1.0 mV/V
Safe overload 300% R.C.
Zero balance ±10% R.O.
Non-linearity 0.2% or less R.O.
Hysteresis 0.2% or less R.O.
Repeatability 0.1% or less R.O.
Compensated temperature range -10 to +60℃
Safe temperature
range
-20 to +70℃
Temperature effect on zero 0.5% R.O/10℃ or below
Temperature effect on span 0.5% R.O/10℃ or below
Input resistance Approx. 1000 Ω
Output resistance Approx. 1000 Ω
Recommended excitation voltage 5 V
Maximum excitation
voltage
7.5 V
Insulation
resistance(DC 50 V)
1000 MΩ or more
Cable φ5 6 conductor flexible cable (3 m)
Cable end: 7 wires
Load cell material Stainless steel
Deflection at rated 0.025 mm 0.040 mm 0.070 mm 0.050 mm
Natural frequency 15 kHz 15 kHz 13 kHz 16 kHz
Weight Approx.
100 g
Approx.
100 g
Approx.
260 g
Approx.
210 g
Attachments

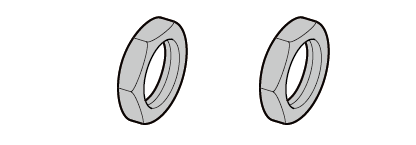

・Low-profile nuts (for loosening prevention) ×2
ULCT-img-3-2

Optional accessories

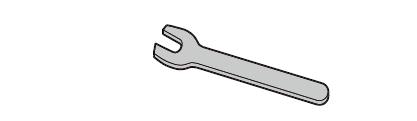

・Low-profile spanner ×1
ULCT-img-3-3

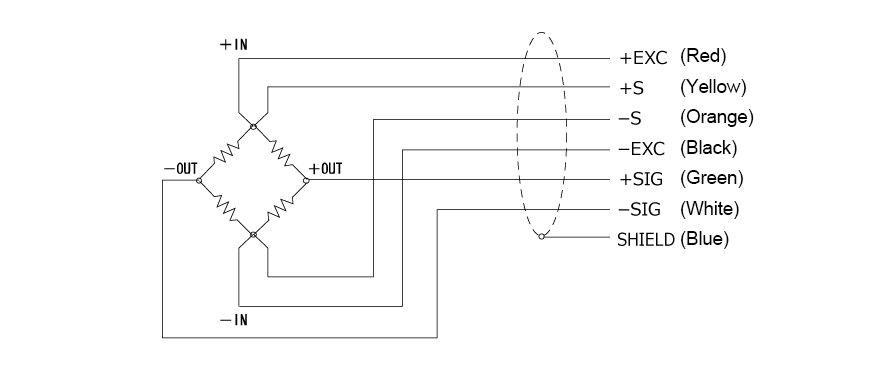

Wiring diagram

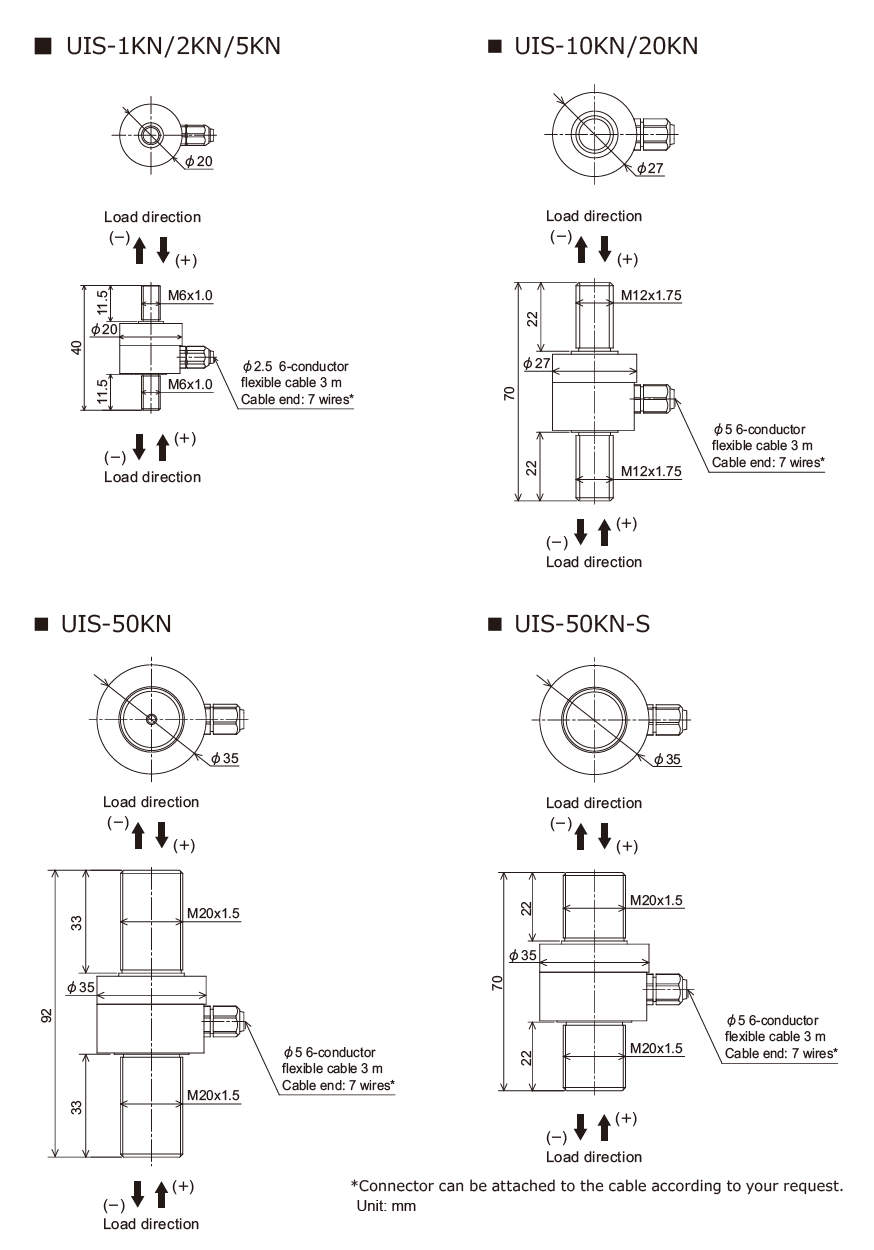

External dimension
