Product outline
Special steel with high hardness, wear resistance is greatly improved
Suitable for high cycle applications!
● Capacity 2 kN/ 5 kN
● Construction material: Special alloy steel

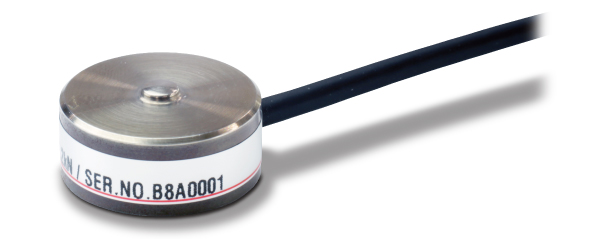

● Compact compression type load cell with a diameter of 21 mm and a height of 10 mm

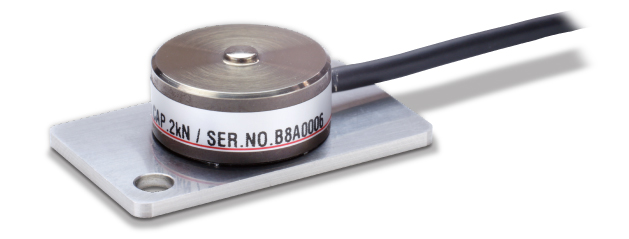

● ULS-FG: W/plate for screw fastening
Specifications
| Model | ULS-2KN ULS-2KN-FG |
ULS-5KN ULS-5KN-FG |
|---|---|---|
| Rated capacity | 2 kN | 5 kN |
| Rated output | Approx. 1 mV/V | |
| Safe overload | 150% R.C. | |
| Zero balance | ±10% R.O. | |
| Non-linearity | ULS:0.5% or less R.O. ULS-FG:1.0% or less R.O. |
|
| Hysteresis | ULS:0.3% or less R.O. ULS-FG:0.5% or less R.O. |
|
| Repeatability | 0.1% or less R.O. | |
| Compensated temperaturerange |
0 to +50℃ | |
| Safe temperature range | 0 to +60℃ | |
| Temperature effect on zero | 0.5% R.O./10℃ or below | |
| Temperature effect on span | 0.5% R.O./10℃ or below | |
| Input resistance | Approx. 350 Ω | |
| Output resistance | Approx. 350 Ω | |
| Recommended excitation voltage |
2.5 V | |
| Maximum excitation voltage | 5 V | |
| Insulation resistance (DC 50 V) | 1000 MΩ or more | |
| Cable | φ3 4-conductor shield cable 2 m Cable end: 5 wires |
|
| Cable color code | ＋EXC: Red ＋SIG: Green －EXC: Black －SIG: White SHIELD: Yellow |
|
| Load cell material | Special alloy steel | |
| Deflection at rated | 0.025 mm | 0.040 mm |
| Natural frequency | 98 kHz | 102 kHz |
| Weight | ULS: 20 g ULS-FG: 35 g |
|
| RoHS directives | 2011/65/EU (EU)2015/863 | |
