Product outline

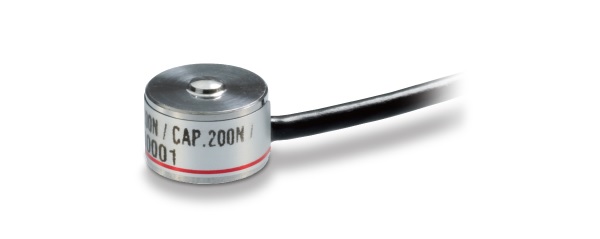

Ultra-compact compression type load cell with a diameter of 7 mm and a height of 5 mm.
● Capacity 200 N/500 N
● Construction material: Stainless steel
● Ultra-compact compression type load cell with a diameter of 7 mm and a height of 5 mm
Specifications
| Model | UNCDW-200N, UNCDW-500N |
|---|---|
| Rated capacity | 200 N, 500 N |
| Rated output | 0.5 mV/V or more |
| Safe overload | 120% R.C. |
| Zero balance | ±20% R.O. |
| Non-linearity | 1.0% R.O. |
| Hysteresis | 1.0% R.O. |
| Repeatability | 1.0% R.O. |
| Compensated temperature range | +5 to +50℃ |
| Safe temperature range | -10 to +80℃ |
| Temperature effect on zero | 0.5% R.O./10℃ |
| Temperature effect on span | 0.5% R.O./10℃ |
| Input resistance | Approx. 350 Ω |
| Output resistance | Approx. 350 Ω |
| Recommended excitation voltage | 2.5 V |
| Maximum excitation voltage | 5 V |
| Insulation resistance (DC 50 V) | 1000 MΩ or more |
| Cable | φ1.6 4-conductor color shield cable. Length 0.5 m. Cable end: 5 wires. |
| Cable color code | ＋EXC：Red ＋SIG : Green －EXC : White －SIG : Blue SHIELD |
| Load cell material | Stainless steel |
| Deflection at rated | 200N：0.006 mm 500N：0.005 mm |
| Natural frequency | 200N：99 kHz 500N：96 kHz |
| Weight | 1.5 g |
| RoHS directives | 2011/65/EU (EU)2015/863 |

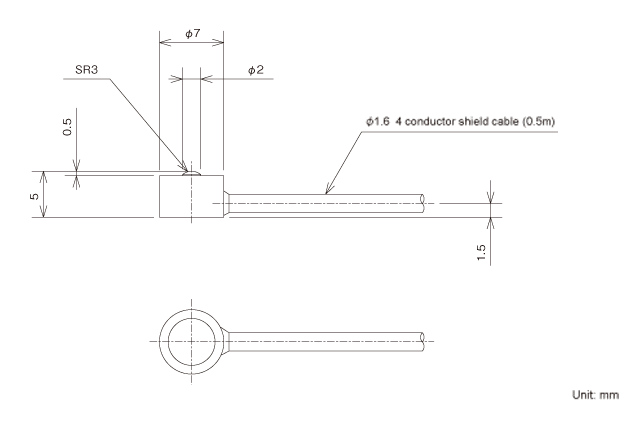

External dimension
Download
|
Product catalogue(PDF)
|
⇒Download Page | |
|---|---|---|
|
Operation manual(PDF)
|
||
|
External dimension
|
DXF
（ZIP） |
|
|
PDF
|
||
|
