Product outline

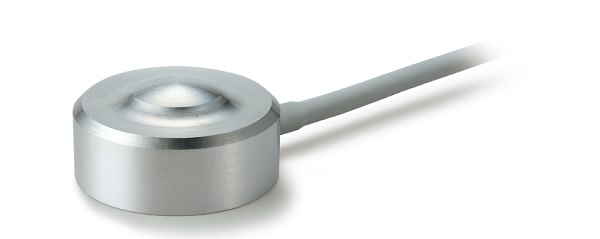

Compact compression type with a diameter of 21 mm and a height of 10 mm

● Capacity 10 kN/ 20 kN
● Construction material:stainless steel
● Compact compression type load cell with a diameter of 21 mm and a height of 10 mm

Specifications

Model UNMR-10KN UNMR-20KN
Rated capacity 10 kN 20 kN
Rated output 1 mV/V±30%
Safe overload 120% R.C.
Zero balance ±10% R.O.
Non-linearity 1% R.O. 2% R.O.
Hysteresis 1% R.O. 2% R.O.
Repeatability 1% R.O.
Compensated temperature
range
0 to +50℃
Safe temperature range -10 to +60℃
Temperature effect on zero 0.5% R.O./10℃
Temperature effect on span 0.5% R.O./10℃
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation
voltage
2.5 V
Maximum excitation
voltage
6 V
Insulation resistance
(DC 50 V)
1000 MΩ or more
Cable φ2.8 4-conductor color shield cable.
Length 2 m. Cable end: 5 wires.
Cable color code +EXC: Red
+SIG: White
-EXC: Blue
-SIG: Black
SHIELD
Load cell material Stainless steel
Deflection at rated 0.07 mm
Natural frequency 50 kHz
Weight 25 g

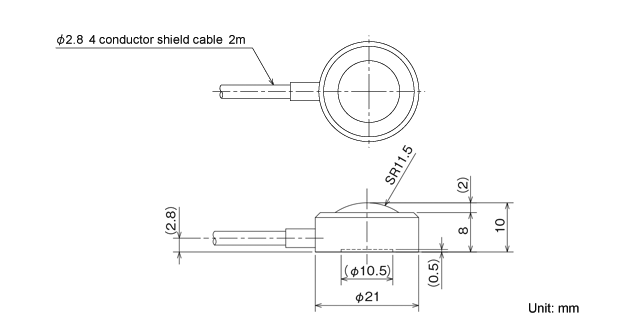

External dimension
