Compact size load cell with high capacity

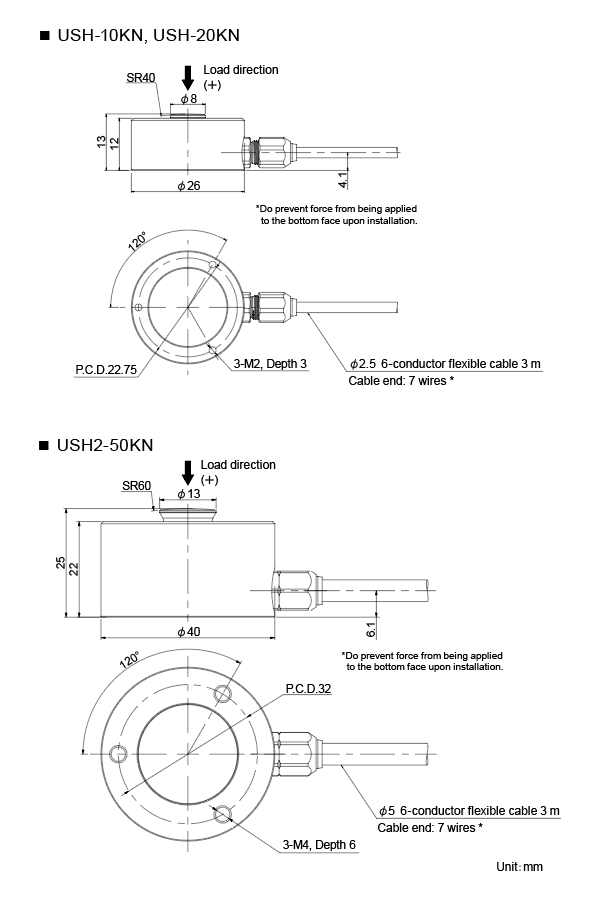

Model	USH-10KN	USH-20KN	USH2-50KN
Rated capacity	10 kN	20 kN	50 kN
Rated output	Approx. 1 mV/V
Safe overload	200% R.C.
Zero balance	±20% R.O.
Non-linearity	0.2% or less R.O.
Hysteresis	0.15% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +70℃
Safe temperature range	-30 to +85℃
Temperature effect on zero	0.2% R.O./10℃ or below
Temperature effect on span	0.2% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	5 V
Maximum excitation voltage	7.5 V
Insulation resistance (DC 50 V)	1000 MΩ or more
Cable	φ2.5 mm 6-conductor flexible cable (3 m) Cable end: 7 wires		φ5 mm 6-conductor flexible cable (3 m) Cable end: 7 wires
Cable color code	＋EXC : Red ＋S : Yellow －S : Orange －EXC : Black ＋SIG : Green －SIG : White SHIELD : Blue
Deflection at rated	0.06 mm		0.07 mm
Natural frequency	20 kHz		15 kHz
Load cell material	Stainless steel
Weight	100 g		180 g
RoHS directives	2011/65/EU (EU)2015/863

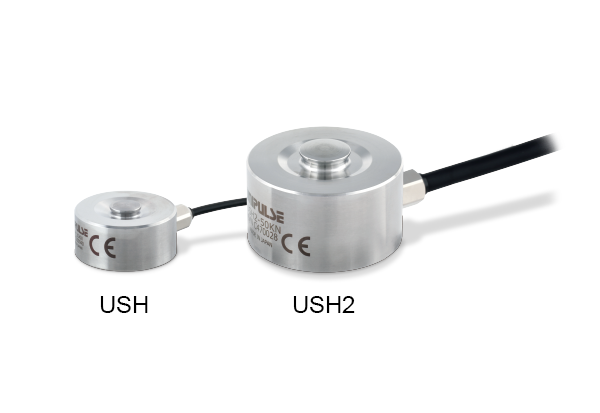

USH/USH2
