Product outline

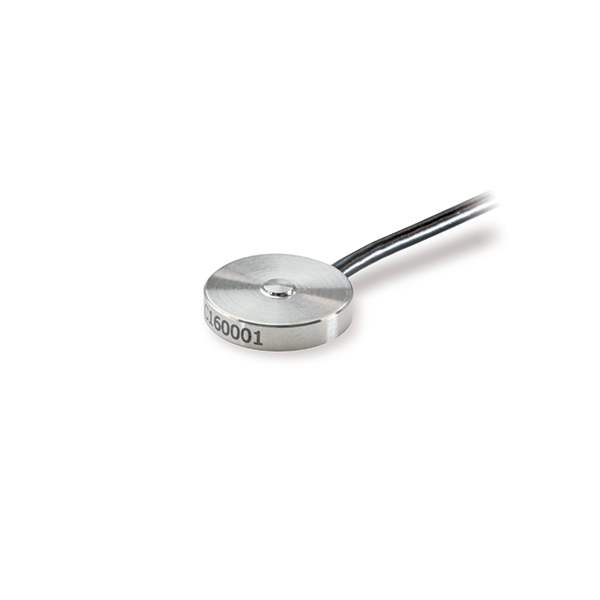

  • The thinnest strain gauge type load cell in the world with a diameter of φ10 mm and a height of 2.3 mm
  • Capacity 50 N/ 100 N/ 200 N/ 500 N
  • As well as assembling to new machines, convenient for retrofitting to existing machines
  • Suitable for load distribution measurement with multiple units

Specifications

Model UST-50N UST-100N UST-200N UST-500N
Rated capacity 50 N 100 N 200 N 500 N
Rated output Approx. 1 mV/V
Safe overload 150% R.C.
Zero balance ±20% R.O.
Non-linearity 0.7% or less R.O.
Hysteresis 0.7% or less R.O.
Repeatability 0.1% or less R.O.
Compensated temperature range 0 to +60℃
Safe temperature range -10 to +70℃
Temperature effect on zero 1% R.O/10℃ or below
Temperature effect on span 1% R.O/10℃ or below
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation
voltage
2.5 V
Maximum excitation
voltage
5 V
Insulation resistance
(DC 50 V)
1000 MΩ or more
Cable φ1.6 4-conductor shield cable (1 m)
Cable end: 5 wires
Load cell material Stainless steel
Deflection at rated 0.003 mm 0.004 mm 0.004 mm 0.005 mm
Natural frequency 140 kHz 160 kHz 180 kHz 180 kHz
Weight 2 g
RoHS directives 2011/65/EU (EU)2015/863
Example of use, Wiring diagram

External dimension
