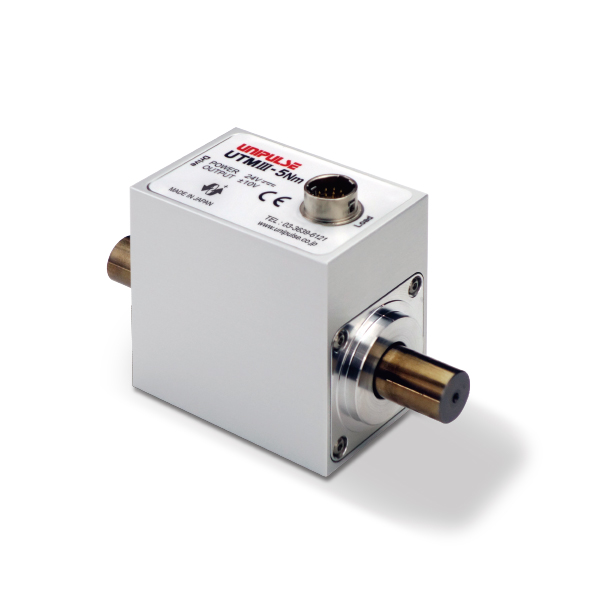

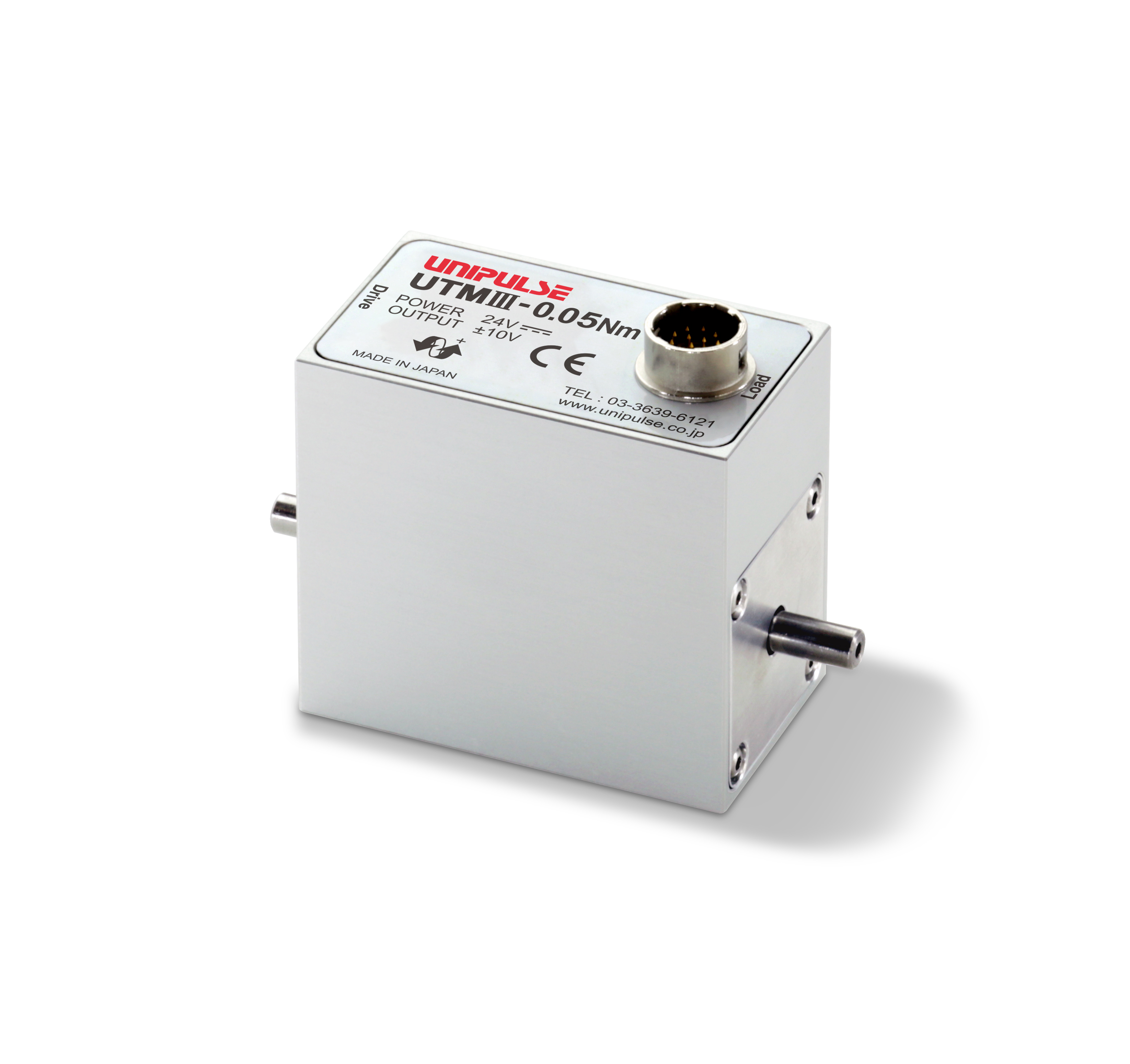

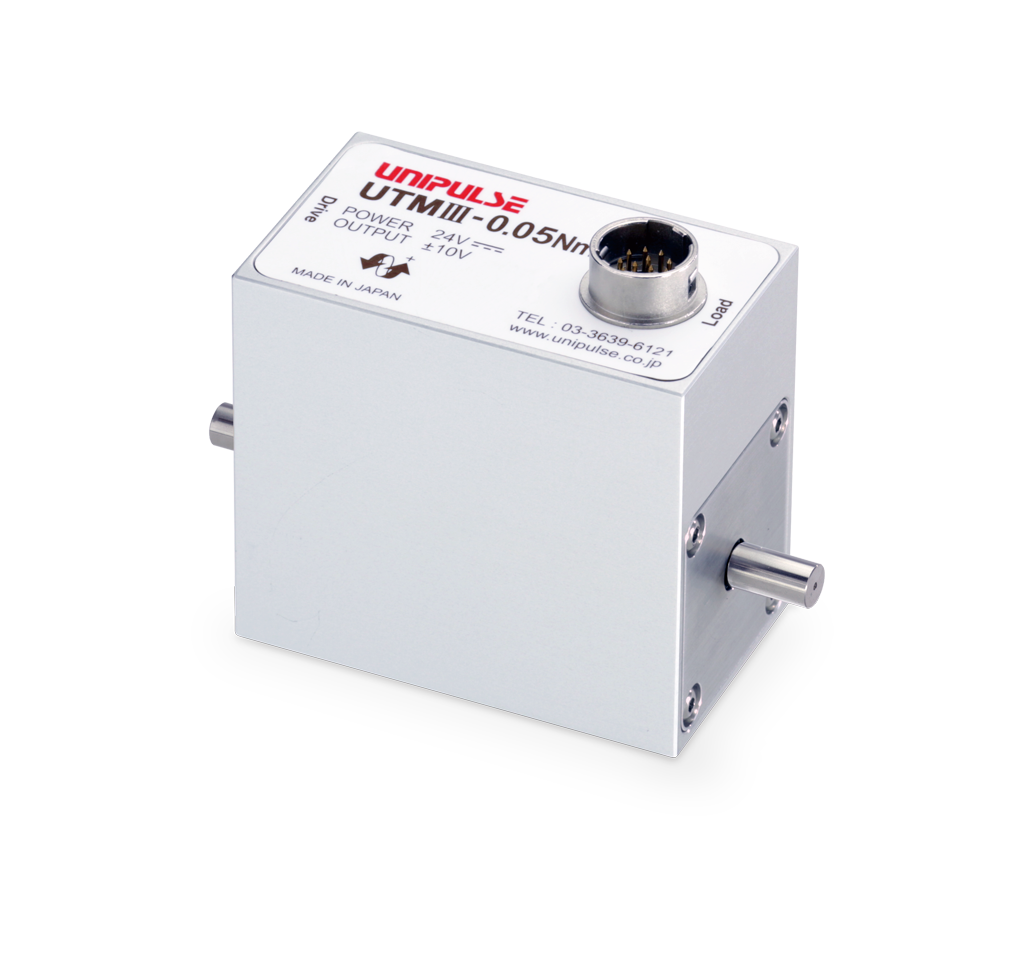

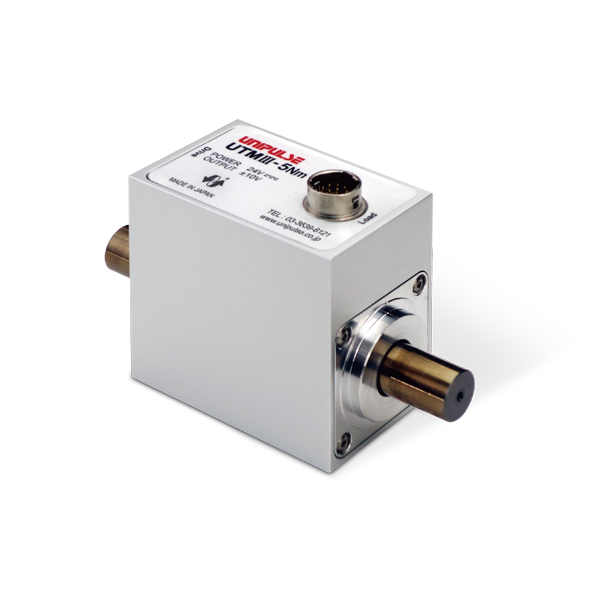

Product outline
Long-awaited new series capable of dynamic torque measurement even more accurately!

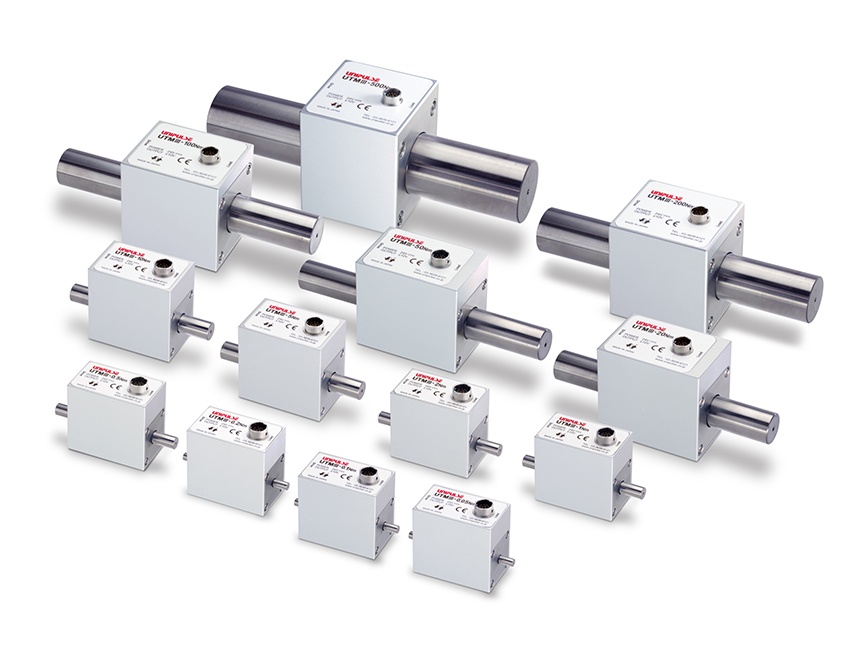

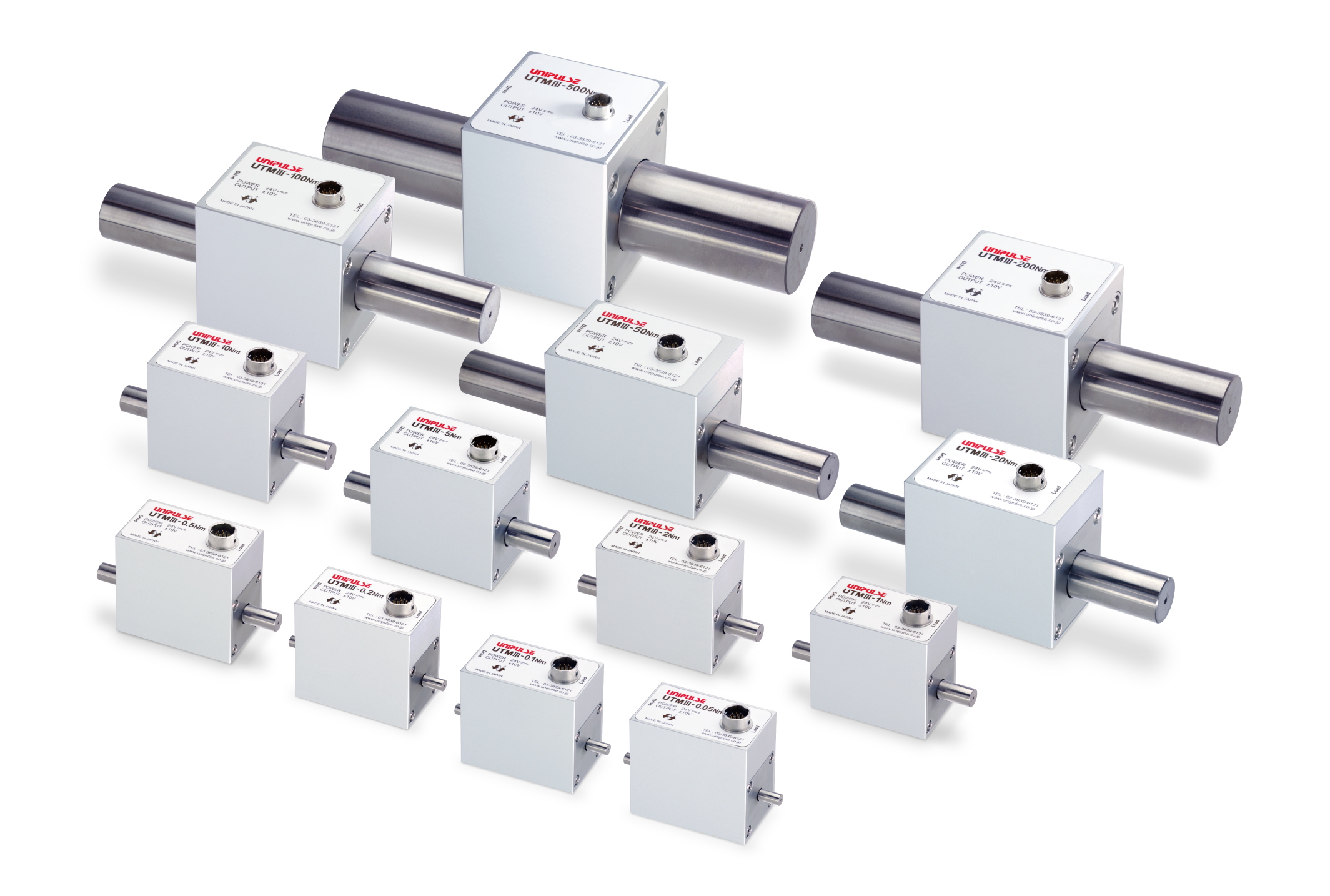

●17 different capacities ranging from 0.05 Nm to 10000 Nm.
●Analog bandwidth 5 kHz with high-speed sampling rate of 20 kHz.
●Safe overload of 500%
●Power supply DC 24 V
●Rated torque at ±10 V
●Digital zero function via external signal
●Digital output via RS-485
●Equipped with pulse output for rotation detection

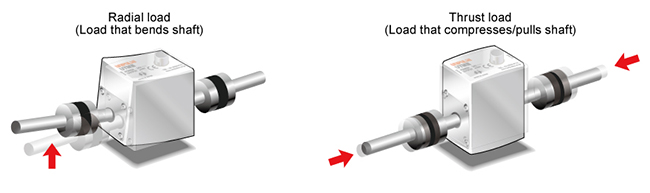

Increased resistance to radial & thrust load
Influences that radial and thrust loads exert on effective accuracy were dramatically reduced.
■Why is load other than torque applied at torque meter?
For torque measurement, when interlocking shafts, misalignments on shaft center as illustrated below occurs by all means.
The devices that absorb radial and thrust loads caused by such misalignments are couplings. However, even the couplings cannot completely absorb such radial and thrust loads, resulting in an impact on torque measurement.

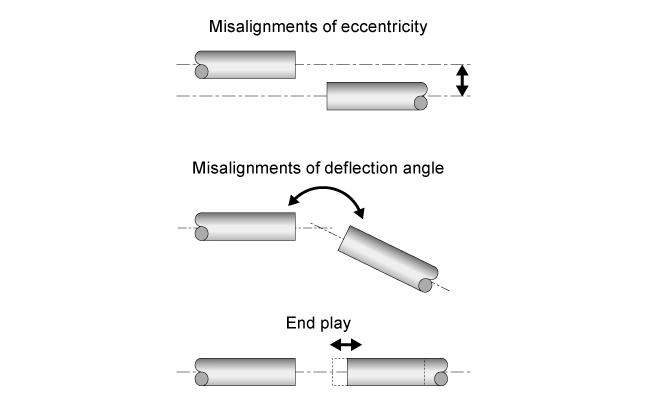

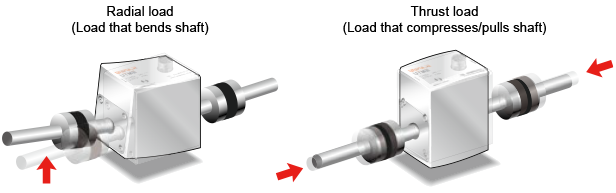

Major misalignments when mounting shafts
Experimental data

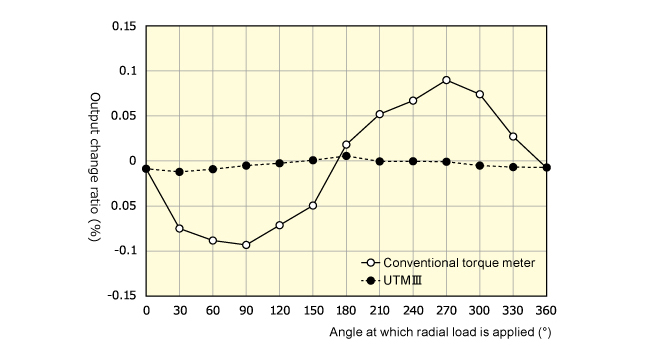

Above illustration shows the output change when one shaft end of UTMⅢ-2Nm is fixed, and 7N radial load is applied at another shaft end through the bearing.
Output changes depending on rotation angle.
While output value changes 0.1% at maximum with conventional torque meter, output value changes less than 0.01% with UTMⅢ.

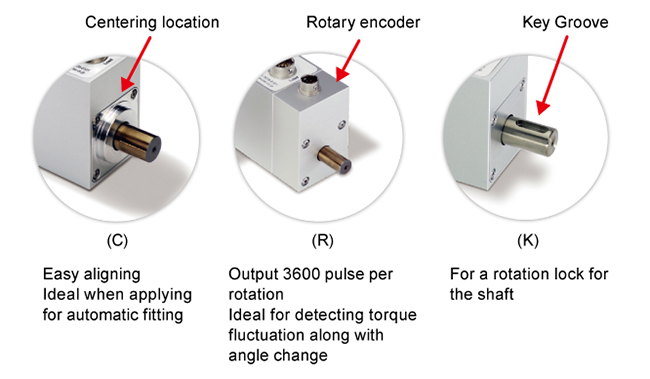

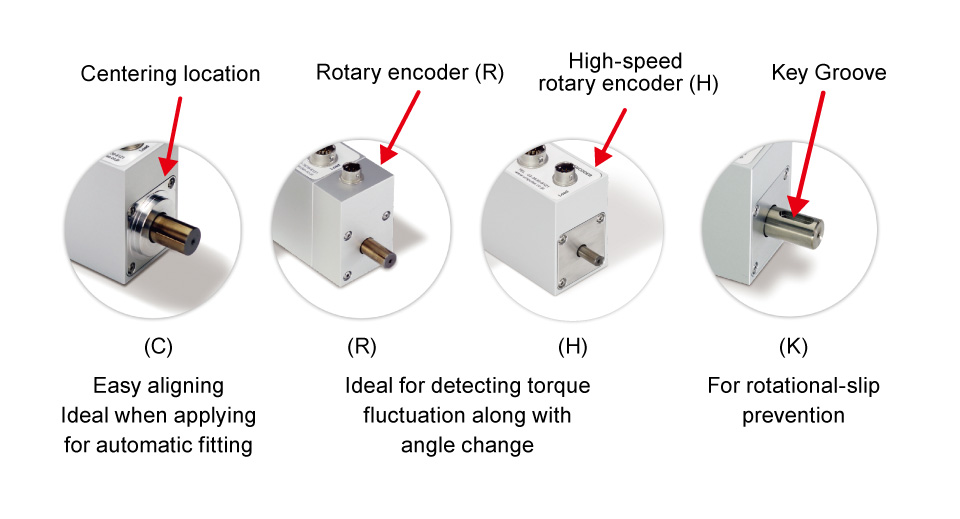

Abundant options available

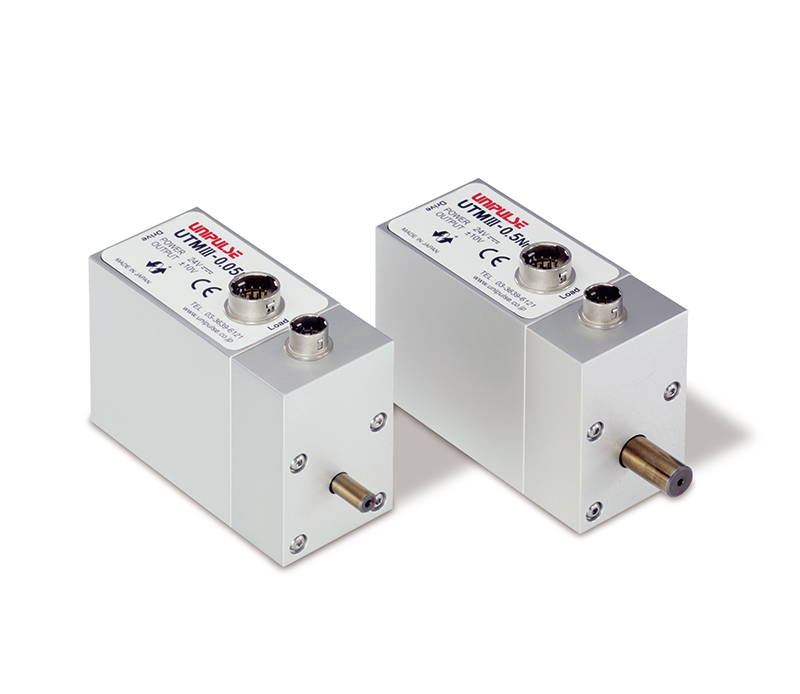

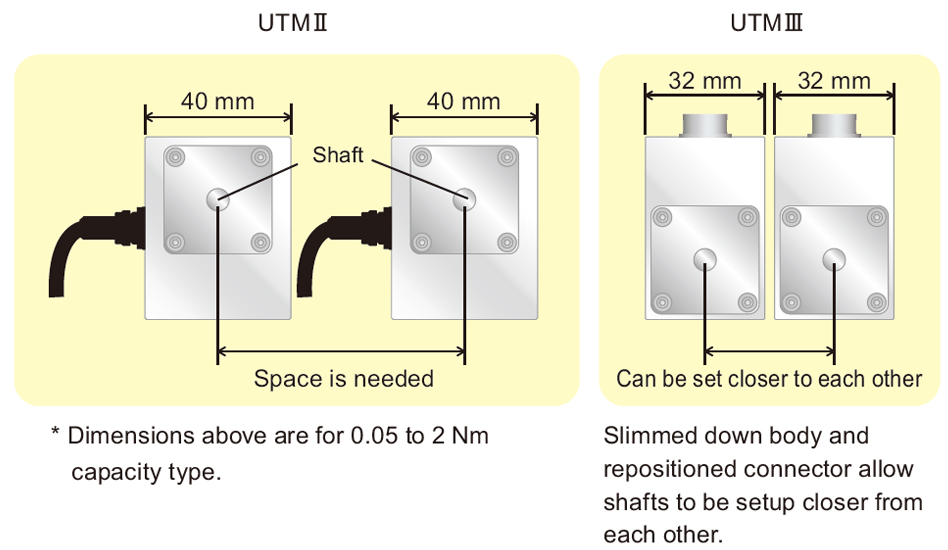

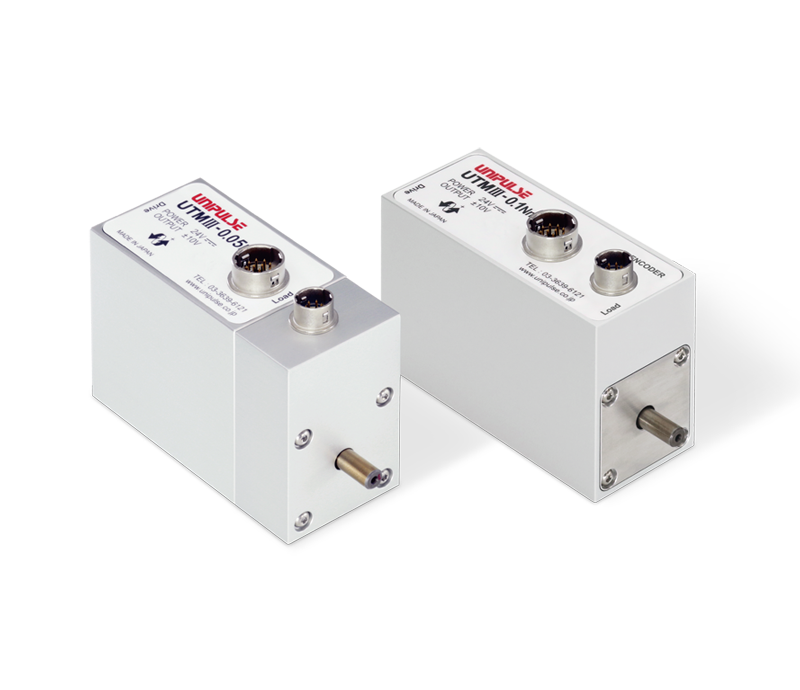

More compact for side-by-side measurement

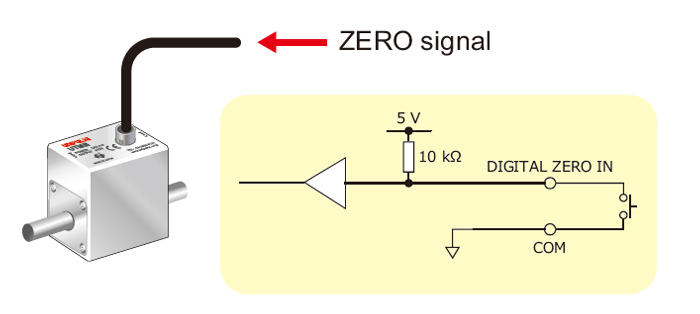

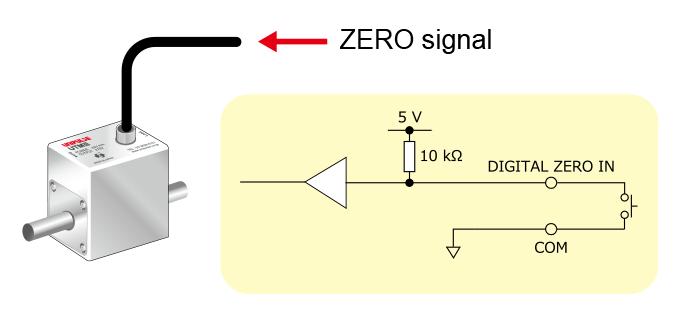

Added zero correction function with external signal

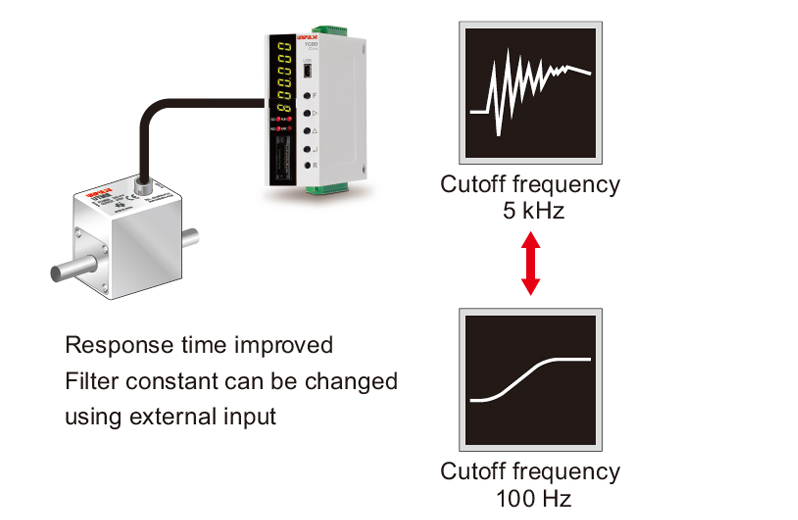

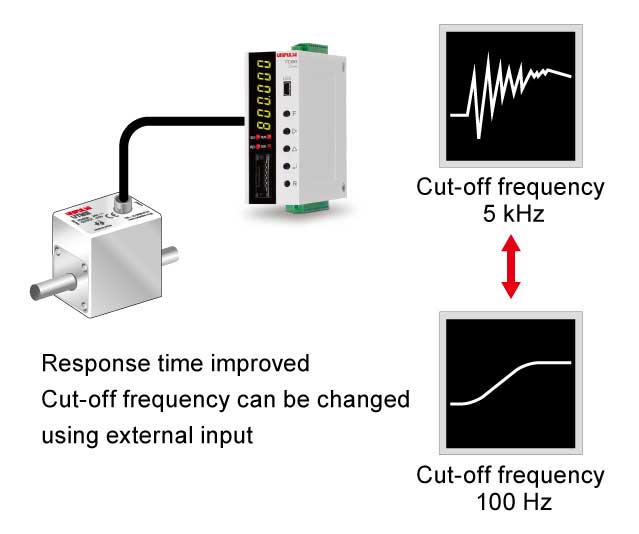

Frequency bandwidth of 5 kHz, variable filter

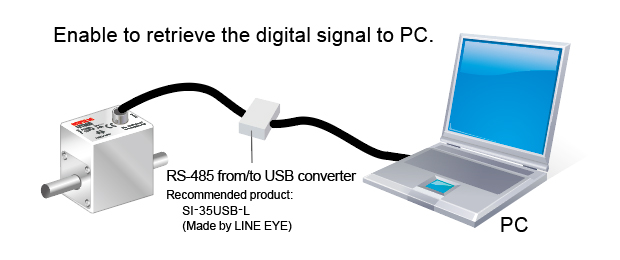

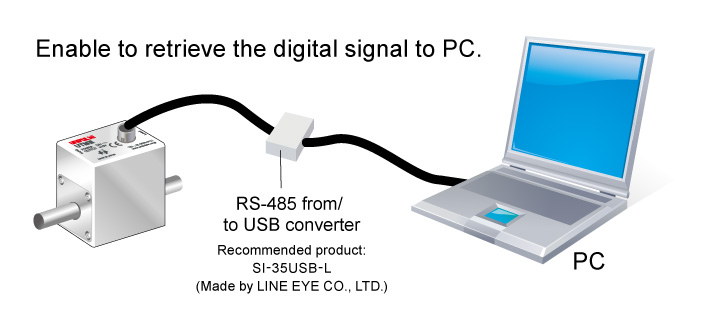

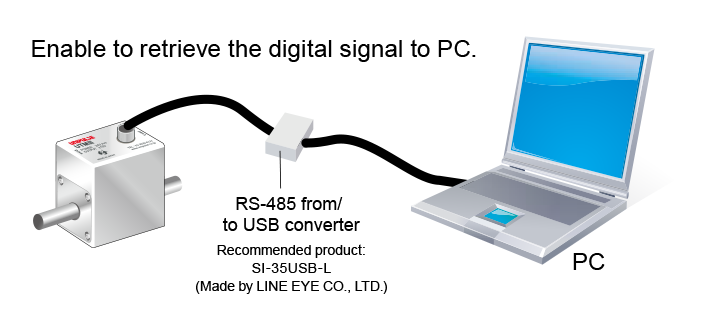

Digital output via RS-485

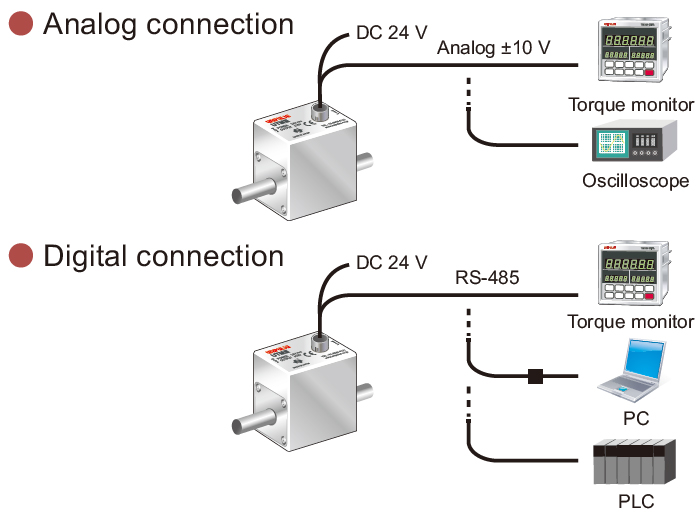

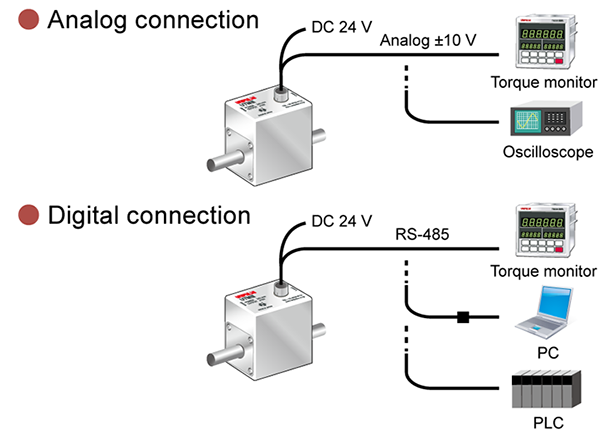

Connection example

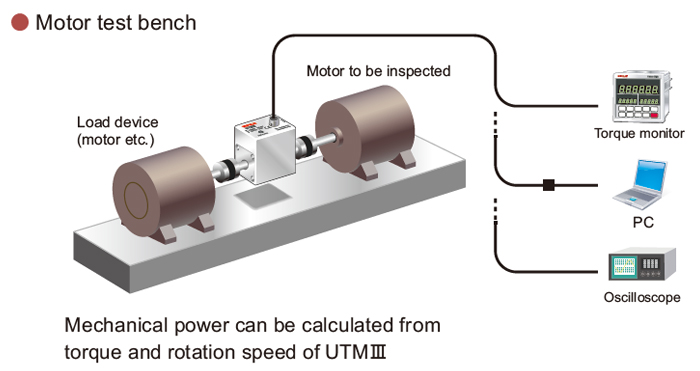

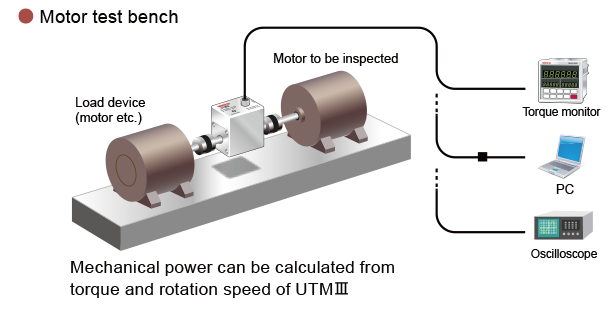

Sample application
Specifications
» Measurement range:±0.05Nm to ±2Nm
» Measurement range:±5Nm to ±200Nm
» Measurement range:±500Nm to ±10000Nm
» Measurement range:±5Nm to ±200Nm
» Measurement range:±500Nm to ±10000Nm
±0.05Nm to ±2Nm
| Measurement range |
±0.05 Nm |
±0.1 Nm | ±0.2 Nm | ±0.5 Nm | ±1 Nm | ±2 Nm |
|---|---|---|---|---|---|---|
| Power supply | DC 24 V ±15％ | |||||
| Consumption current | 100 mA or less | |||||
| Output range | ±10 V DC Load resistance must be more than 5 kΩ | |||||
| Responsivity | 5 kHz | |||||
| Rotation signal |
4 pulses per 1 rotation *1 Open collector Max. ratings 30 V, 10 mA |
|||||
| Digital filter | 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz | |||||
| Safe overload | 500％ FS | |||||
| Non-linearity | 0.03％ FS or less | |||||
| Hysteresis | 0.03％ FS or less | |||||
| Repeatability | 0.03％ FS or less | |||||
| Operation temp. range |
-10 to +50℃ | |||||
| Temp. effect on ZERO | 0.01% FS/℃ or below | |||||
| Temp. effect on span | 0.01% FS/℃ or below | |||||
| Max. rotation speed | 25000 rpm | |||||
| Torsional spring constant |
5.67 Nm/rad |
11.57 Nm/rad |
26.10 Nm/rad |
93.1 Nm/rad |
188 Nm/rad |
414 Nm/rad |
| Maximum torsional angle |
8.81× 10-3 rad (0.505°) |
8.64× 10-3 rad (0.495°) |
7.66× 10-3 rad (0.439°) |
5.37× 10-3 rad (0.308°) |
5.32× 10-3 rad (0.305°) |
4.83× 10-3 rad (0.277°) |
| Inertia moment |
8.48× 10-7 kgm2 |
8.58× 10-7 kgm2 |
8.7× 10-7 kgm2 |
1.46× 10-6 kgm2 |
1.49× 10-6 kgm2 |
1.39× 10-6 kgm2 |
| Ext. dimension (case size/ W×H×D) |
54×49×32 mm | |||||
| Total length | 74 mm | 84 mm | ||||
| Shaft diameter |
φ5 mm | φ8 mm | ||||
| Weight | Approx. 140 g | Approx. 160 g | ||||
| Supplied cable |
12-conductor flexible cable (2 m) Cable end: 13 wires → Cable length is switchable to 5 m（Option：UTMⅢ-L5） |
|||||
| Optionally available cable |
CATM351：12-conductor flexible cable (5 m) Cable end: 13 wires CATM312：12-conductor flexible cable (10 m) Cable end: 13 wires |
|||||
| CE marking certificatio |
EMC directives EN61326-1,EN61326-2-3 | |||||
Permissible shaft end load *2
| Measurement range |
±0.05 Nm |
±0.1 Nm |
±0.2 Nm |
±0.5 Nm |
±1 Nm |
±2 Nm |
|---|---|---|---|---|---|---|
| RadialN | 0.12 N | 0.25 N | 0.3 N | 0.5 N | 1 N | 8 N |
| ThrustN | 3 N | 4 N | 5 N | 6 N | 8 N | 30 N |
| RadialN (R, RC, RK, RCK) |
0.07 N | 0.14 N | 0.17 N | 0.3 N | 0.6 N | 5 N |
| ThrustN (R, RC, RK, RCK) |
3 N | 4 N | 5 N | 6 N | 8 N | 30 N |
Option
| Measurement range |
±0.05 Nm |
±0.1 Nm |
±0.2 Nm |
±0.5 Nm |
±1 Nm |
±2 Nm |
|---|---|---|---|---|---|---|

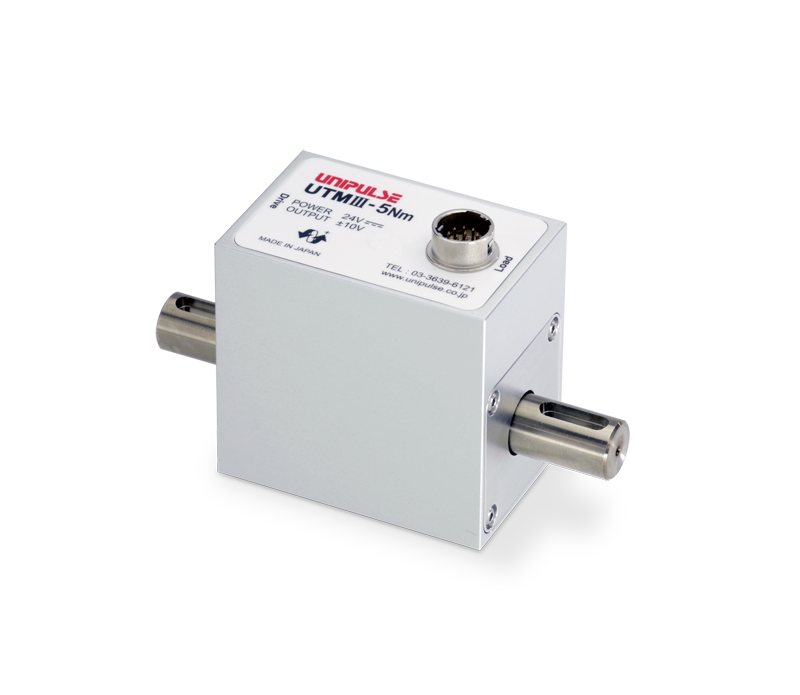

| Key Groove | ||||||
| Rotary encoder | ○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Rotary encoder |
||||||
| Centering location |
○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Centering location |
||||||
| Rotary encoder & Centering location |
○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Rotary encoder & Centering location |
*1 0.05 to 10 Nm model can be changed to 60 pulses in 1 rotation specification. Contact us for more details.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.

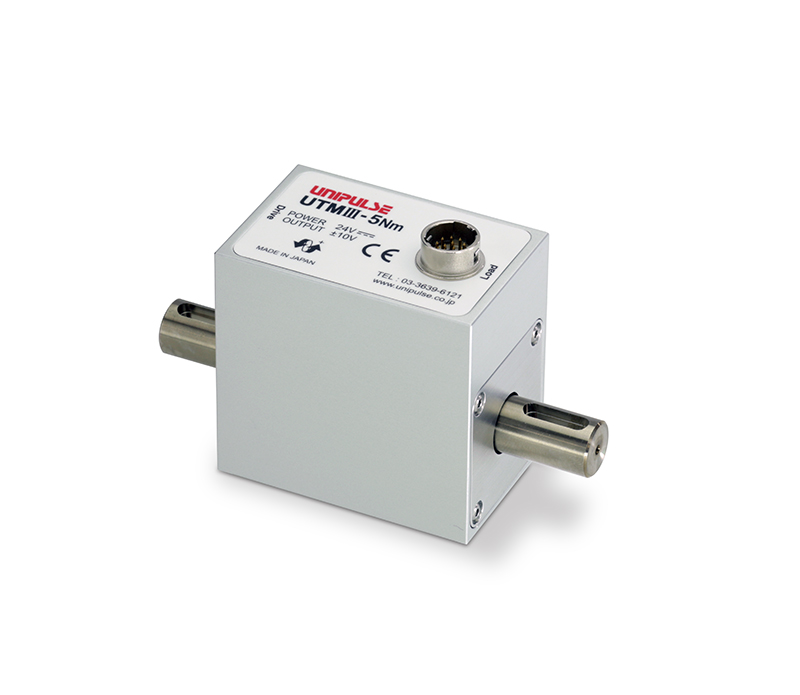

±5Nm ～ ±200Nm
| Measurement range |
±5 Nm | ±10 Nm | ±20 Nm | ±50 Nm | ±100 Nm |
±200 Nm |
|---|---|---|---|---|---|---|
| Power supply | DC 24 V ±15％ | |||||
| Consumption current | 100 mA or less | 150 mA or less | ||||
| Output range | ±10 V DC Load resistance must be more than 5 kΩ | |||||
| Responsivity | 5 kHz | |||||
| Rotation signal |
4 pulses per 1 rotation *1 Open collector Max. ratings 30 V, 10 mA |
|||||
| Digital filter | 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz | |||||
| Safe overload | 500％ FS | |||||
| Non-linearity | 0.03％ FS or less | |||||
| Hysteresis | 0.03％ FS or less | |||||
| Repeatability | 0.03％ FS or less | |||||
| Operation temp. range |
-10 to +50℃ | |||||
| Temp. effect on ZERO | 0.01% FS/℃ or below | |||||
| Temp. effect on span | 0.01% FS/℃ or below | |||||
| Max. rotation speed | 25000 rpm | 20000 rpm | 15000 rpm |
12000 rpm |
||
| Torsional spring constant |
691 Nm/rad |
1851 Nm/rad |
5386 Nm/rad |
8428 Nm/rad |
17.3× 103 Nm/rad |
41.7× 103 Nm/rad |
| Maximum torsional angle |
7.24× 10-3 rad (0.415°) |
5.40× 10-3 rad (0.310°) |
3.71× 10-3 rad (0.213°) |
5.93× 10-3 rad (0.340°) |
5.78× 10-3 rad (0.331°) |
4.79× 10-3 rad (0.275°) |
| Inertia moment |
3.56× 10-6 kgm2 |
3.66× 10-6 kgm2 |
2.59× 10-5 kgm2 |
2.66× 10-5 kgm2 |
6.59× 10-5 kgm2 |
1.40× 10-4 kgm2 |
| Ext. dimension (case size/ W×H×D) |
57×54×37 mm | 70×63×47 mm | 67× 63.5× 56 mm |
67×68× 61 mm |
||
| Total length | 97 mm | 150 mm |
170 mm |
177 mm | 187 mm | |
| Shaft diameter |
φ12 mm | φ20 mm | φ25 mm | φ30 mm | ||
| Weight | Approx. 250 g | Approx. 670 g | Approx. 1.1 kg |
Approx. 1.4 kg |
||
| Supplied cable |
12-conductor flexible cable (2 m) Cable end: 13 wires → Cable length is switchable to 5 m（Option：UTMⅢ-L5） |
|||||
| Optionally available cable |
CATM351：12-conductor flexible cable (5 m) Cable end: 13 wires CATM312：12-conductor flexible cable (10 m) Cable end: 13 wires |
|||||
| CE marking certificatio |
EMC directives EN61326-1,EN61326-2-3 | |||||
Permissible shaft end load *2
| Measurement range |
±5 Nm | ±10 Nm | ±20 Nm | ±50 Nm | ±100 Nm |
±200 Nm |
|---|---|---|---|---|---|---|
| RadialN | 15 N | 20 N | 23 N | 60 N | 90 N | 160 N |
| ThrustN | 40 N | 100 N | 360 N | 400 N | 500 N | 800 N |
| RadialN (R, RC, RK, RCK) |
7 N | 13 N | 20 N | 25 N | 60 N | 100 N |
| ThrustN (R, RC, RK, RCK) |
40 N | 100 N | 360 N | 400 N | 500 N | 800 N |
Option
| Measurement range |
±5 Nm |
±10 Nm |
±20 Nm |
±50 Nm |
±100 Nm |
±200 Nm |
|---|---|---|---|---|---|---|
| Key Groove | ○ | ○ | ○ | ○ | ○ | ○ |
| Rotary encoder | ○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Rotary encoder |
○ | ○ | ○ | ○ | ○ | ○ |
| Centering location |
○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Centering location |
○ | ○ | ○ | ○ | ||
| Rotary encoder & Centering location |
○ | ○ | ○ | ○ | ○ | ○ |
| Key groove & Rotary encoder & Centering location |
○ | ○ | ○ | ○ |
*1 0.05 to 10Nm model can be changed to 60 pulses in 1 rotation specification. Contact us for more details.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.
±500Nm～±10000Nm
| Measurement range |
±500 Nm |
±1000 Nm |
±2000 Nm |
±5000 Nm |
±10000 Nm |
|---|---|---|---|---|---|
| Power supply | DC 24 V ±15％ | ||||
| Consumption current | 150 mA or less |
180 mA or less | 210 mA or less | ||
| Output range | ±10 V DC Load resistance must be more than 5 kΩ | ||||
| Responsivity | 5 kHz | ||||
| Rotation signal |
4 pulses per 1 rotation *1 Open collector Max. ratings 30 V, 10 mA |
||||
| Digital filter | 1 Hz to 1 kHz(Depending on settings) PASS 5 kHz | ||||
| Safe overload | 500％ FS | ||||
| Non-linearity | 0.03％ FS or less | ||||
| Hysteresis | 0.03％ FS or less | ||||
| Repeatability | 0.03％ FS or less | ||||
| Operation temp. range |
-10 to +50℃ | ||||
| Temp. effect on ZERO | 0.01% FS/℃ or below | ||||
| Temp. effect on span | 0.01% FS/℃ or below | ||||
| Max. rotation speed | 10000 rpm |
7000 rpm | 6000 rpm | 5000 rpm | 4000 rpm |
| Torsional spring constant |
117×103 Nm/rad |
377×103 Nm/rad |
717×103 Nm/rad |
1649×103 Nm/rad |
3255×103 Nm/rad |
| Maximum torsional angle |
4.28× 10-3 rad (0.246°) |
2.65× 10-3 rad (0.152°) |
2.79× 10-3 rad (0.160°) |
3.03× 10-3 rad (0.174°) |
3.07× 10-3 rad (0.176°) |
| Inertia moment |
4.70× 10-4 kgm2 |
2.90× 10-3 kgm2 |
5.89× 10-3 kgm2 |
2.01× 10-2 kgm2 |
5.16× 10-2 kgm2 |
| Ext. dimension (case size/ W×H×D) |
67×78× 71 mm |
86×103× 98 mm |
86×119× 111 mm |
97×141× 137 mm |
103×166× 162 mm |
| Total length | 217 mm | 286 mm | 306 mm | 387 mm | 447 mm |
| Shaft diameter |
φ40 mm | φ60 mm | φ70 mm | φ90 mm | φ110 mm |
| Weight | Approx. 2.6 kg |
Approx. 7.4 kg |
Approx. 10.6 kg |
Approx. 21.7 kg |
Approx. 36.2 kg |
| Supplied cable |
12-conductor flexible cable (2 m) Cable end: 13 wires → Cable length is switchable to 5 m（Option：UTMⅢ-L5） |
||||
| Optionally available cable |
CATM351：12-conductor flexible cable (5 m) Cable end: 13 wires CATM312：12-conductor flexible cable (10 m) Cable end: 13 wires |
||||
| CE marking certificatio |
EMC directives EN61326-1,EN61326-2-3 | ||||
Permissible shaft end load *2
| Measurement range |
±500 Nm |
±1000 Nm |
±2000 Nm |
±5000 Nm |
±10000 Nm |
|---|---|---|---|---|---|
| RadialN | 300 N | 400 N | 500 N | 1000 N | 1200 N |
| ThrustN | 1800 N | 3000 N | 4500 N | 7000 N | 11000 N |
| RadialN (R, RC, RK, RCK) |
200 N | – | – | – | – |
| ThrustN (R, RC, RK, RCK) |
1800 N | – | – | – | – |
Option
| Measurement range |
±500 Nm |
±1000 Nm |
±2000 Nm |
±5000 Nm |
±10000 Nm |
|---|---|---|---|---|---|
| Key Groove | ○ | ○ | ○ | ○ | ○ |
| Rotary encoder | ○ | ||||
| Key groove & Rotary encoder |
○ | ||||
| Centering location |
○ | ||||
| Key groove & Centering location |
○ | ||||
| Rotary encoder & Centering location |
○ | ||||
| Key groove & Rotary encoder & Centering location |
○ |
*1 0.05 to 10Nm model can be changed to 60 pulses in 1 rotation specification. Contact us for more details.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.
*2 Radial N and Thrust N of permissible shaft end load are the values guaranteeing that influence for torque output is less than 0.03% when those loads apply.
