Product outline

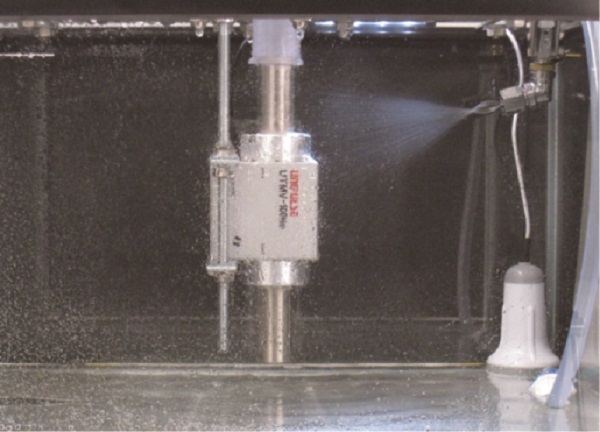

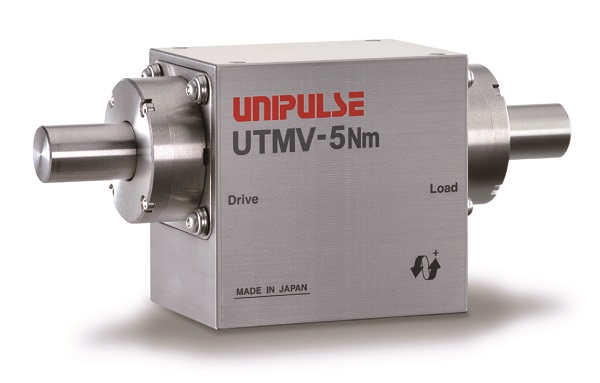

Drip & rust proof rotating torque meter, UTMV, is now available. With the protection equivalent to IP65, it can be used in an environment with possible exposure to rainwater, seawater, minute dust particle, and oil-mist.
- Degree of protection: equivalent to IP65
- Made of rust-resistant stainless steel
- Labyrinth structure type is recommended for a rainwater/seawater environment
Fluororubber rotating seal type is recommended for a minute dust/oil-mist environment(option) - Capacity type: 0.1, 0.5, 1, 5, 10, 50, 100, 500, 1000, and 5000 Nm
★☆Please contact us now for product trial or demonstration!☆★
it can be used in an environment with possible exposure to rainwater, seawater, minute dust particle, and oil-mist.

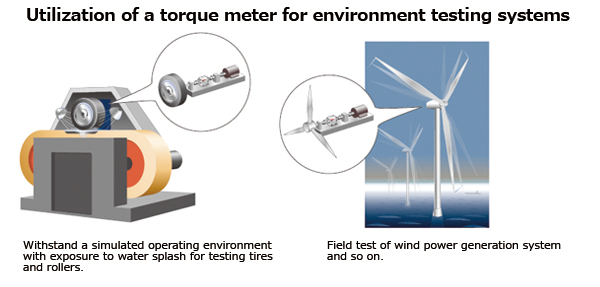

Application examples
Labyrinth seal type & Fluoro rubber rotating seal type(Option：(S))
The standard type comes with labyrinth seals suitable for use in an environment with possible exposure to rainwater or seawater.
Fluororubber rotating seal type is recommended for uses in an environment where minute powder or oil-mist exists.
Please note that a rotating seal has a limited lifetime.
| Seal type | Labyrinth seal | Fluoro rubber rotating seal |
|---|---|---|
| Drip proof | Yes | Yes |
| In minute powder/oil-mist environment. | Not suitable | Yes |
| Friction torque | Very low | Max. 10% (0.1Nm type) |
| Max. speed | 10000 rpm (0.1Nm type) | 2120 rpm (0.1Nm type) |
| Maintenance | Unnecessary | Necessary |
Specifications
The standard type comes with labyrinth seal, and fluororubber rotating seal type “(S)” is available as an option.
| UTMV (0.1Nm to 10Nm) | ||||||||||
| model | UTMV -0.1Nm |
UTMV -0.5Nm |
UTMV -1Nm |
UTMV -5Nm |
UTMV -10Nm |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Measurement range | ±0.1 Nm | ±0.5 Nm | ±1 Nm | ±5 Nm | ±10 Nm | |||||
| Seal type | standard | (S) | standard | (S) | standard | (S) | standard | (S) | standard | (S) |
| Power supply | DC 24 V ±15％ | |||||||||
| Consumption current | 100 mA or less | |||||||||
| Output range | ±5 V DC Load resistance must be more than 2 kΩ | |||||||||
| Responsivity | 1 kHz | |||||||||
| Rotation signal | 4 pulses per 1 rotation Open collector Max. ratings 30 V, 10 mA |
|||||||||
| Safe overload | 500% FS | |||||||||
| Non-linearity | 0.03% FS or less | |||||||||
| Hysteresis | 0.03% FS or less | |||||||||
| Repeatability | 0.03% FS or less | |||||||||
| Operation temp. range | -10 to +50℃ | |||||||||
| Temp. effect on zero | 0.01% FS/℃ or below | |||||||||
| Temp. effect on span | 0.01% FS/℃ or below | |||||||||
| Max. rotation speed | 10000 rpm |
2120 rpm |
10000 rpm |
1590 rpm |
10000 rpm |
1590 rpm |
9000 rpm |
1060 rpm |
9000 rpm |
1060 rpm |
| Torsional spring constant |
11.13 Nm/rad |
89.5 Nm/rad |
172 Nm/rad |
897 Nm/rad |
1400 Nm/rad |
|||||
| Maximum torsional angle |
8.99×10-3 rad (0.515°) |
5.59×10-3 rad (0.320°) |
5.83×10-3 rad (0.334°) |
5.58 ×10-3 rad (0.320°) |
7.14×10-3 rad (0.409°) |
|||||
| Inertia moment | 1.15 × 10-6 kgm2 |
0.99 × 10-6 kgm2 |
2.19 × 10-6 kgm2 |
1.90 × 10-6 kgm2 |
2.22 × 10-6 kgm2 |
1.93 × 10-6 kgm2 |
5.60 × 10-6 kgm2 |
4.90 × 10-6 kgm2 |
5.70 × 10-6 kgm2 |
5.00 × 10-6 kgm2 |
| Main frame dimension (W×H×D) |
54×50×40 mm | 54×50×40 mm | 54×50×40 mm | 57×55×40 mm | 57×55×40 mm | |||||
| Length | 97 mm | 107 mm | 107 mm | 121 mm | 121 mm | |||||
| Shaft dia. | 5 mm | 8 mm | 8 mm | 12 mm | 12 mm | |||||
| Approx. Weight | 390 g | 430 g | 430 g | 580 g | 580 g | |||||
| CE marking certification | EMC directives EN61326-1,EN61326-2-3 | |||||||||
| UTMV (50Nm to 5000Nm) | ||||||||||
| Model | UTMV -50Nm |
UTMV -100Nm |
UTMV -500Nm |
UTMV -1000Nm |
UTMV -5000Nm |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Measurement range | ±50 Nm | ±100 Nm | ±500 Nm | ±1000 Nm | ±5000 Nm | |||||
| Seal type | standard | (S) | standard | (S) | standard | (S) | standard | (S) | standard | (S) |
| Power supply | DC 24 V ±15％ | |||||||||
| Consumption current | 150 mA or less | 160 mA or less | ||||||||
| Output range | ±5 V DC Load resistance must be more than 2 kΩ | |||||||||
| Responsivity | 1 kHz | |||||||||
| Rotation signal | 4 pulses per 1 rotation Open collector Max. ratings 30 V, 10 mA |
|||||||||
| Safe overload | 500% FS | |||||||||
| Non-linearity | 0.03% FS or less | |||||||||
| Hysteresis | 0.03% FS or less | |||||||||
| Repeatability | 0.03% FS or less | |||||||||
| Operation temp. range | -10 to +50℃ | |||||||||
| Temp. effect on zero | 0.01% FS/℃ or below | |||||||||
| Temp. effect on span | 0.01% FS/℃ or below | |||||||||
| Max. rotation speed | 5700 rpm |
680 rpm |
4800 rpm |
570 rpm |
4800 rpm |
380 rpm |
4800 rpm |
270 rpm |
4000 rpm |
180 rpm |
| Torsional spring constant |
6887 Nm/rad |
1.64×103 Nm/rad |
93.6×103 Nm/rad |
326×103 Nm/rad |
1418×103 Nm/rad |
|||||
| Maximum torsional angle |
7.26×10-3 rad (0.416°) |
6.11×10-3 rad (0.350°) |
5.34×10-3 rad (0.306°) |
3.07×10-3 rad (0.176°) |
3.53×10-3 rad (0.202°) |
|||||
| Inertia moment | 4.21 × 10-5 kgm2 |
3.86 × 10-5 kgm2 |
9.6 × 10-5 kgm2 |
10.9 × 10-5 kgm2 |
6.2 × 10-4 kgm2 |
6.1 × 10-4 kgm2 |
3.56 × 10-3 kgm2 |
3.51 × 10-3 kgm2 |
2.38 × 10-2 kgm2 |
2.34 × 10-2 kgm2 |
| Main frame dimension (W×H×D) |
70×68×51 mm | 67×74×57 mm | 67×79×72 mm | 86×103×98 mm | 97×141×137 mm | |||||
| Length | 207 mm | 215 mm | 257 mm | 326 mm | 433 mm | |||||
| Shaft dia. | 20 mm | 25 mm | 40 mm | 60 mm | 90 mm | |||||
| Approx. Weight | 1.6 kg | 2.1 kg | 4.0 kg | 11 kg | 28 kg | |||||
| CE marking certification | EMC directives EN61326-1,EN61326-2-3 | |||||||||
