Product outline

Most appropriate for load control of hopper scales, conveyor scales, etc.

● Capacity 5 kg/ 10 kg/ 20 kg/ 50 kg/ 100 kg/ 200 kg/ 500 kg/ 1 t
● High accuracy, constructed of stainless steel, hermetically sealed
● Stainless steel bellows that eliminate disturbance
● Applications: Hopper scales, conveyor scales, etc.



Specifications

Z6FD1-5KG, Z6FC3-10KG, 20KG, 50KG

Model Z6FD1-5KG Z6FC3-10KG Z6FC3-20KG Z6FC3-50KG
Rated
capacity		 5 kg 10 kg 20 kg 50 kg
Rated
output		 2.0 mV/V
+0.02 -0.002		 2 mV/V
±0.1%		 2 mV/V±0.05%
Safe
overload		 150% R.C.
Non-
linearity		 0.05% R.O. 0.0180% R.O. typ.
Hysteresis 0.05% R.O. 0.0170% R.O. typ.
Creep 0.049%
R.O./30 min		 0.0166% R.O./30 min
Compensated temperature range -10 to +40℃
Safe temperature range -30 to +70℃
Temperature effect on
zero		 0.05%
R.O./10℃		 0.0125% R.O./10℃
Temperature effect on
span		 0.05%
R.O./10℃		 0.0080% R.O./10℃ typ.
Input
resistance		 350 to 480 Ω
Output
resistance		 356±0.2 Ω 356±0.12 Ω
Maximum excitation voltage 12 V
Insulation
resistance		 5000 MΩ or more
Degrees of
protection		 IP68

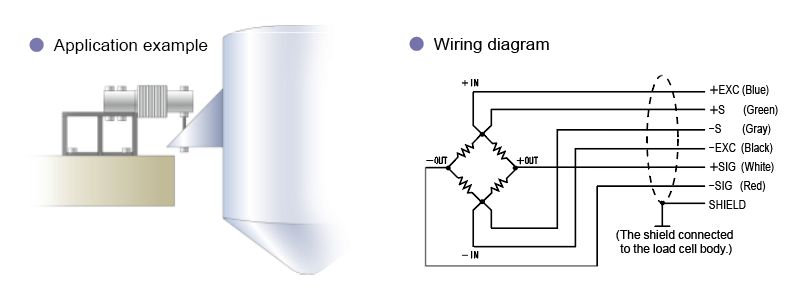

Cable φ5.4 6-conductor shield cable 3 m
Cable end: 7 wires
Cable color
code		 ＋EXC：Blue
＋S：Green
－S：Gray
－EXC：Black
＋SIG：White
－SIG:Red
SHIELD
Load cell
material		 Stainless steel
Deflection at
rated		 0.24 mm 0.30 mm 0.29 mm 0.27 mm
Weight 0.5 kg



Z6FC3-100KG, 200KG, 500KG, 1T

Model Z6FC3-100KG Z6FC3-200KG Z6FC3-500KG Z6FC3-1T
Rated
capacity		 100 kg 200 kg 500 kg 1 t
Rated
output		 2 mV/V±0.05%
Safe
overload		 150% R.C.
Non-
linearity		 0.0180% R.O. typ.
Hysteresis 0.0170% R.O. typ.
Creep 0.0166% R.O./30 min
Compensated temperature range -10 to +40℃
Safe temperature range -30 to +70℃
Temperature effect on
zero		 0.0125% R.O./10℃
Temperature
effect
on span		 0.0080% R.O./10℃ typ.
Input
resistance		 350 to 480 Ω
Output
resistance		 356±0.12 Ω
Maximum excitation voltage 12 V
Insulation
resistance		 5000 MΩ or more
Degrees of
protection		 IP68
Cable φ5.4 6-conductor shield cable 3 m
Cable end: 7 wires
Cable color
code		 ＋EXC：Blue
＋S：Green
－S：Gray
－EXC：Black
＋SIG：White
－SIG:Red
SHIELD
Load cell
material		 Stainless steel
Deflection at
rated		 0.31 mm 0.39 mm 0.60 mm 0.55 mm
Weight 0.5 kg 2.3 kg

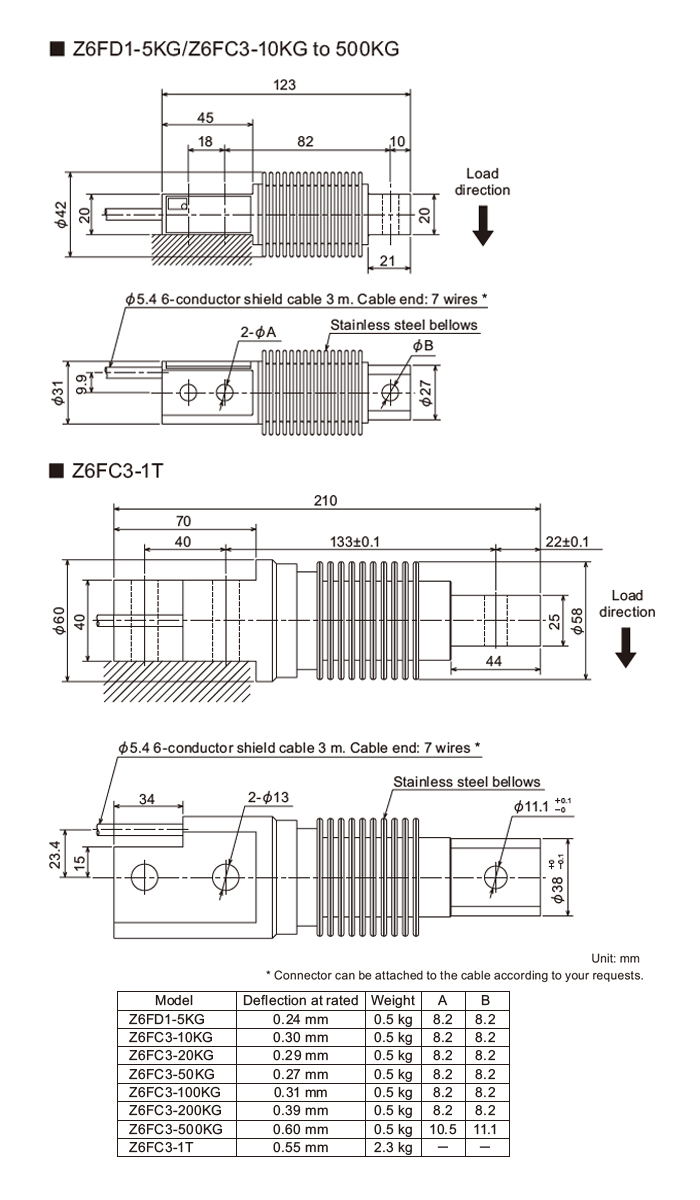

External dimension
