Product outline

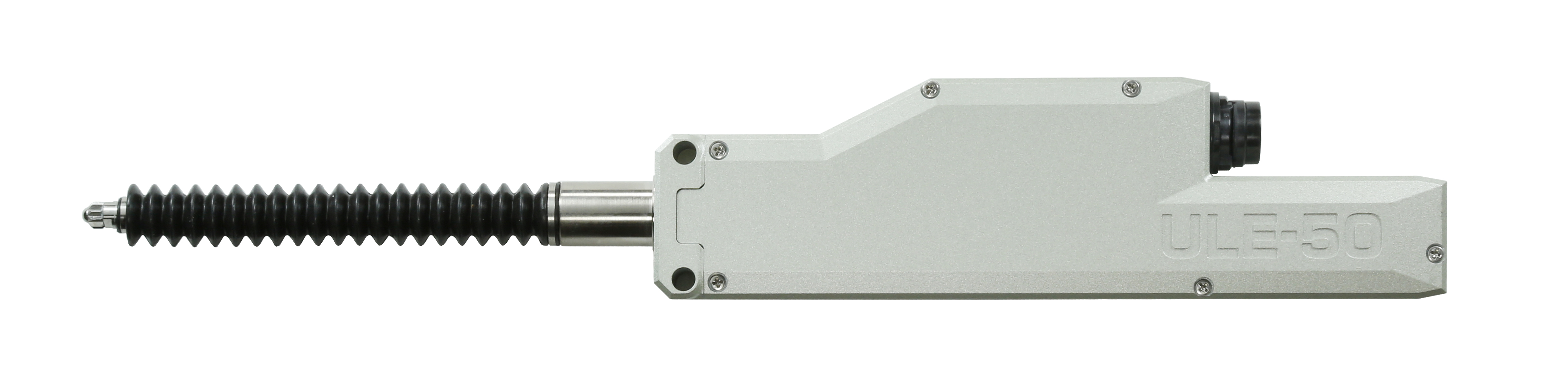

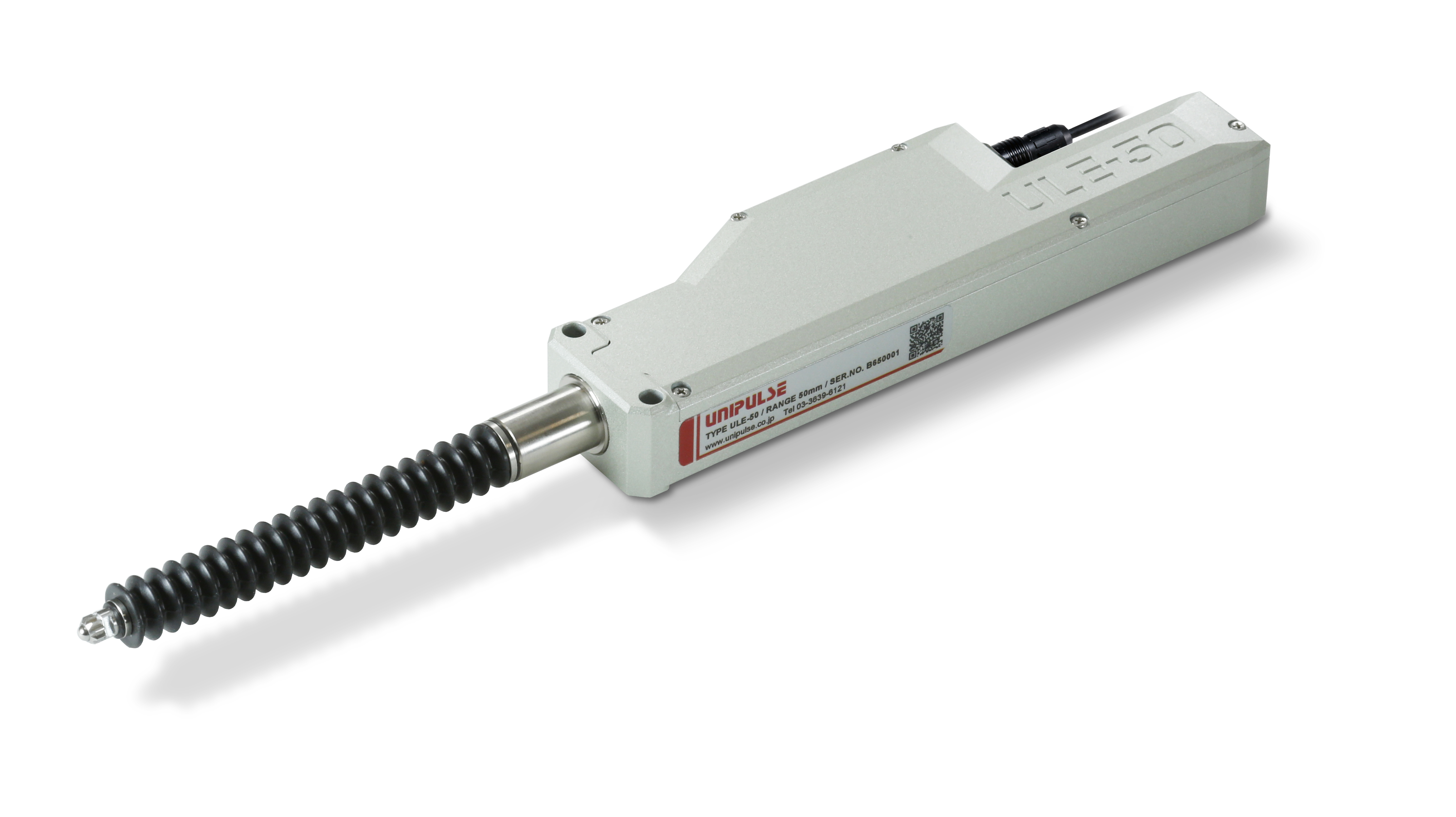

ULE-50 is a digital contact sensor designed for use with FS2000 and F381A-LDI.

  • 50 mm stroke for various workpieces.
  • Robotic cable for installation on moving parts.
  • Ideal for use with FS2000,F381A-LDI indicator.
  • By using it with a load cell and “FS2000,F381A-LDI” force vs. displacement measurement can be performed!!!
Features

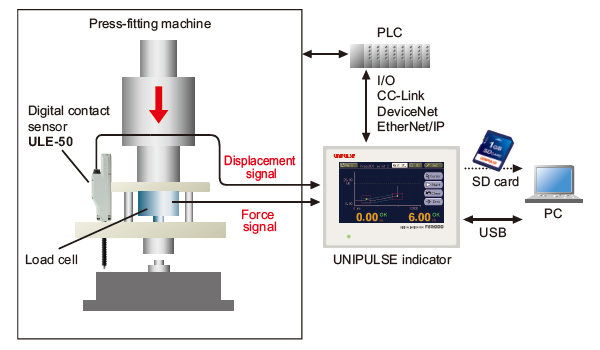

Example of use : Press-fitting with force vs. displacement measurement

Specifications

Model ULE-50
Method Incremental
Measurement range 50 mm
resolution 2.5 μm (When connected to a UNIPULSE indicator)
Measuring force downward: Approx. 2.8 N (at 50 mm)
Side: Approx. 2.6 N (at 50 mm)
Upward: Approx. 2.3 N (at 50 mm)
Operating temperature range -10℃ to +40℃
Storage temperature range -20℃ to +60℃
Output signal Differential line driver signal with 90° phase difference (RS-422A compliant)
Cable Flexible cable 2 m
Cable color Red (PWR+), Blue (PWR-), Pink (A+), Blown (A-), Yellow (B+), Green (B-), Shield
Weight Approx. 350 g
Power supply voltage DC 4.5 to 30 V
Current consumption Approx. 0.1 A or less
Optional accessory ULE-DB: Dust boots

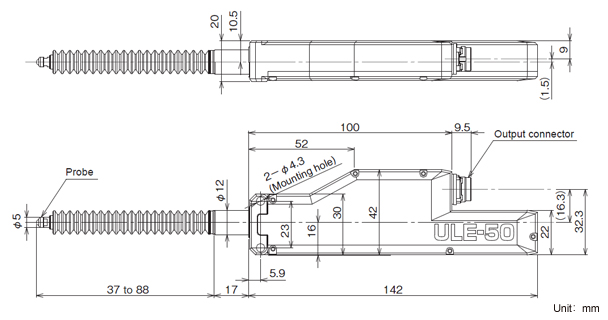

External dimension
