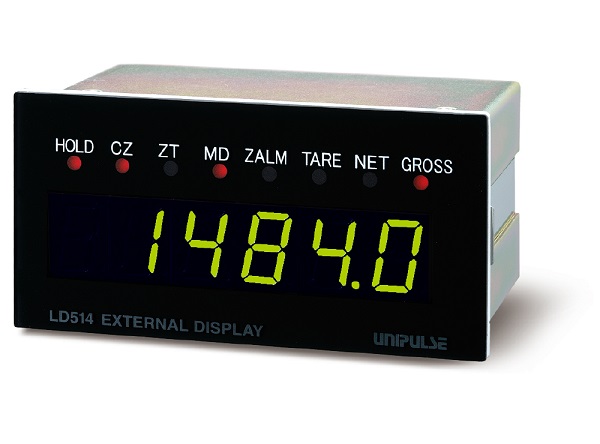

Product outline

LD514 is better equipped with required functions in a body as compact as a business card. This is a display unit that can be easily placed in your desired location as an indicator with no display section or for control purposes remotely.

Specifications

Display section
Display device Green numerical display LED
Display digit number 5 digits, Character height 14 mm, 7 segments and decimal point,
±99999 (only minus sign displayed)
Decimal point position Interlocking with indicator
Status display Green 7-segment LED (1pc) (minus sign), Red LED (8pcs)
(HOLD, CZ, ZT, MD, ZALM, TARE, NET, GROSS)
Unit No silk, seals included (kg/ g/ t/ N/ lb)
Setting section
Setting function Setting by rotary DIP switches
Numerical indicator data select Indicator indicated value, gross weight, net weight, tare weight
Self mode select Display test, version display available
Indicator select ・ Loadcell Indicator/digital indicator switching over (Status display can be switched over.)
・ Loadcell Indicator follow-up display: Standard mode and LD515 compatibility mode can be switched over.
External input
Interface SIF: 2-wire type serial interface
External input Hold signal
Connector shape ・ Cage clamp terminal block, 4pins
1…HOLD, 2…COM, 3…SI/F, 4…SI/F
・ M3 screw terminal block, 3pins
1…AC, 2…AC, 3…F.G
General performance
Power supply voltage 100 to 240V AC (+10% -15%), 50/60Hz
Power consumption 10VA typ.
Fuse used 1A
Operating conditions Temperature: Working temperature range -10°C to +40°C;
Storage temperature range -40 to +80°C
Humidity: 85% RH or less (non-condensing)
Dimensions 96(W)×48(H)×61(D) mm
Weight 405g
Attachments
Power cable (3m) 1
Mini-driver for terminal block connection 1
Unit seal 1
Operation manual 1

Optional accessories

Model
CAAC2P-B3 AC Supply cord 3m
CAAC3P-CEE7/7-B2 AC Supply cord (Voltage resistance:250V) 2m
