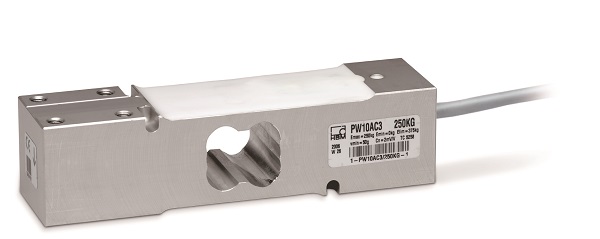

Product outline

Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

● Capacity 50/ 100/ 150/ 200/ 250/ 300 kg
● Constructed of Aluminum, Lightweight
● Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.

Specifications

Model PW10A-50KG, PW10A-100KG, PW10A-150KG,
PW10A-200KG, PW10A-250KG, PW10A-300KG
Rated capacity 50 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg
Rated output 2.0±0.2 mV/V
Safe overload 150% R.C.
Maximum safe side overload 300% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Compensated temperature range -10 to +40℃
Safe temperature range -10 to +50℃
Temperature effect on zero 0.0140% R.O./10℃(50/ 100/ 200 kg),
0.0093% R.O./10℃(150/ 300 kg),
0.0112% R.O./10℃(250 kg)
Temperature effect on span 0.0175% R.O./10℃(+20 to +40℃),
0.0117% R.O./10℃(-10 to +20℃)
Input resistance 300 to 500 Ω
Output resistance 330 to 430 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 2000 MΩ or more
Degrees of protection IP67
Cable 6 conductor shield cable 3 m
Cable end: 7 wires
Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD:Yellow
Load cell material Aluminum
Deflection at rated 0.5 mm or less
Natural frequency 50KG:734 Hz
100KG:877 Hz
150KG:961 Hz
200KG:1024 Hz
250KG:1070 Hz
300KG:1105 Hz
Maximum off center distance 150 mm
Maximum platform size 600 × 500 mm
Weight 0.6 kg

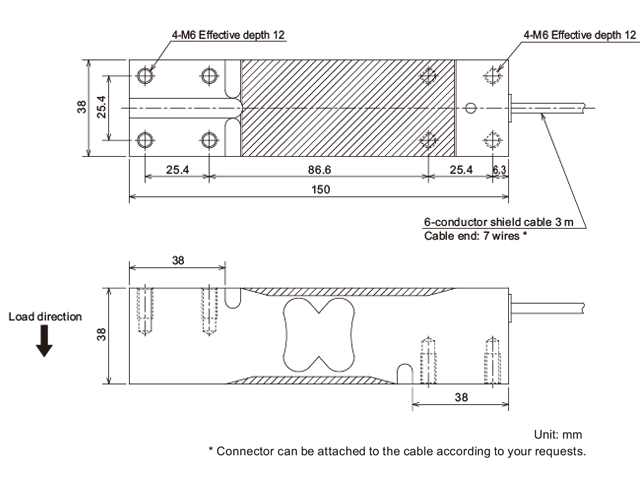

External dimension
