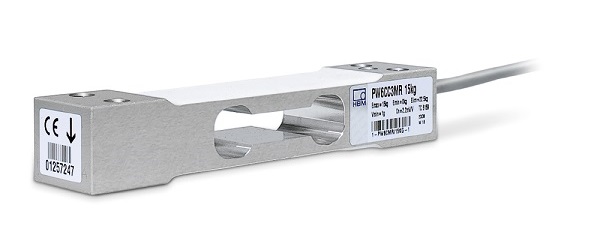

Product outline

Most appropriate for load control of bench scales, etc.

● Capacity 5/ 10/ 20/ 30/ 40 kg
● Constructed of Aluminum, Lightweight
● Most appropriate for load control of bench scales, etc.

Specifications

Model PW6C-5KG, PW6C-10KG, PW6C-20KG,
PW6C-30KG, PW6C-40KG
Rated capacity 5 kg, 10 kg, 20 kg, 30 kg, 40 kg
Rated output 2.2±0.2 mV/V
Safe overload 150% R.C.
Maximum safe side overload 300% R.C.
Zero balance 0±0.12 mV/V
Non-linearity 0.0166% R.O. typ.
Hysteresis 0.0166% R.O. typ.
Compensated temperature range -10 to +40℃
Safe temperature range -10 to +50℃
Temperature effect
on zero
0.0140% R.O./10℃(5/10/20 kg), 0.0093% R.O./10℃(30 kg), 0.0175% R.O./10℃(40 kg)
Temperature effect
on span
0.0175% R.O./10℃(+20 to +40℃),
0.0117% R.O./10℃(-10 to +20℃)
Input resistance 300 to 500 Ω
Output resistance 300 to 500 Ω
Recommended excitation voltage 1 to 12 V
Insulation resistance 2000 MΩ or more
Degrees of protection IP67
Cable 6 conductor shield cable 2 m
Cable end: 7 wires
Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD:Yellow
Load cell material Aluminum
Deflection at rated 0.5 mm or less
Natural frequency 5KG:225 Hz
10KG:331 Hz
20KG:473 Hz
30KG:573 Hz
40KG:606 Hz
Maximum off center distance 100 mm
Maximum platform size 300 × 300 mm
Weight 0.25 kg

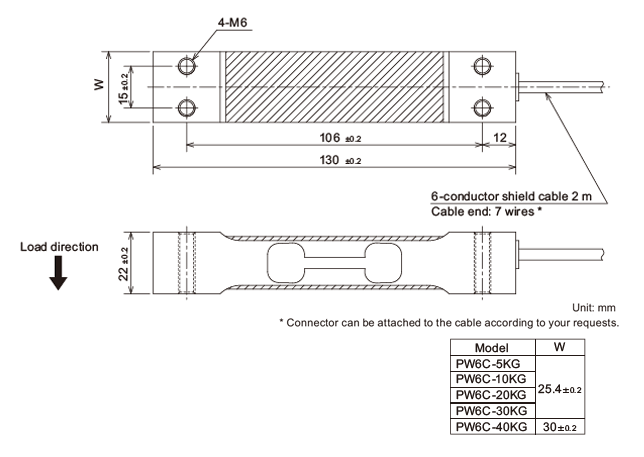

External dimension
