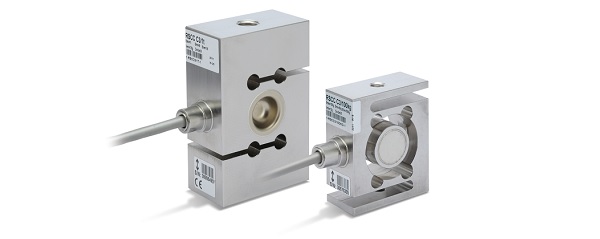

Product outline

Most appropriate for load control of crane scales, tank scales, etc.
● Capacity 50 kg / 100 kg / 200 kg / 500 kg / 1 t / 2 t / 5 t
● Constructed of stainless steel, Lightweight
● Applications: Crane scales, tank scales, etc

Specifications

Model RSCC-50KG, RSCC-100KG, RSCC-200KG,
RSCC-500KG, RSCC-1T, RSCC-2T, RSCC-5T
capacity 50 kg, 100 kg, 200 kg, 500 kg, 1 t, 2 t, 5 t
Rated output 2 mV/V±0.25%
Safe overload 150% R.C.
Zero balance 0±0.1 mV/V
Non-linearity 0.0166% R.O.
Hysteresis 0.0166% R.O.
Creep 0.0166% R.O./30 min
Compensated
temperature range
-10 to +40℃
Safe temperature
range
-30 to +70℃
Temperature effect
on zero
0.0166% R.O./10℃
Temperature effect
on span
0.0170% R.O./10℃(+20 to +40℃)
0.0110% R.O./10℃(-10 to +20℃)
Input resistance 389±15 Ω
Output resistance 350±1.5 Ω
Recommended
excitation voltage
5 V
Maximum excitation
voltage
12 V
Insulation resistance 2000 MΩ or more
Degrees of protection IP68
Cable φ5.4 6-conductor color shield cable 7.6 m
Cable end: 7 wires.
Cable color code +EXC:Blue
+S:Green
-S:Gray
-EXC:Black
+SIG:White
-SIG:Red
SHIELD
Loadcell material Stainless steel
Deflection at rated 50KG:0.35 mm
100KG:0.4 mm
200KG:0.35 mm
500KG:0.1 mm
1T:0.2 mm
2T:0.2 mm
5T:0.4 mm
Weight 50KG:0.7 kg
100KG:0.7 kg
200KG:1.0 kg
500KG:1.4 kg
1T:1.4 kg
2T:1.7 kg
5T:2.2 kg

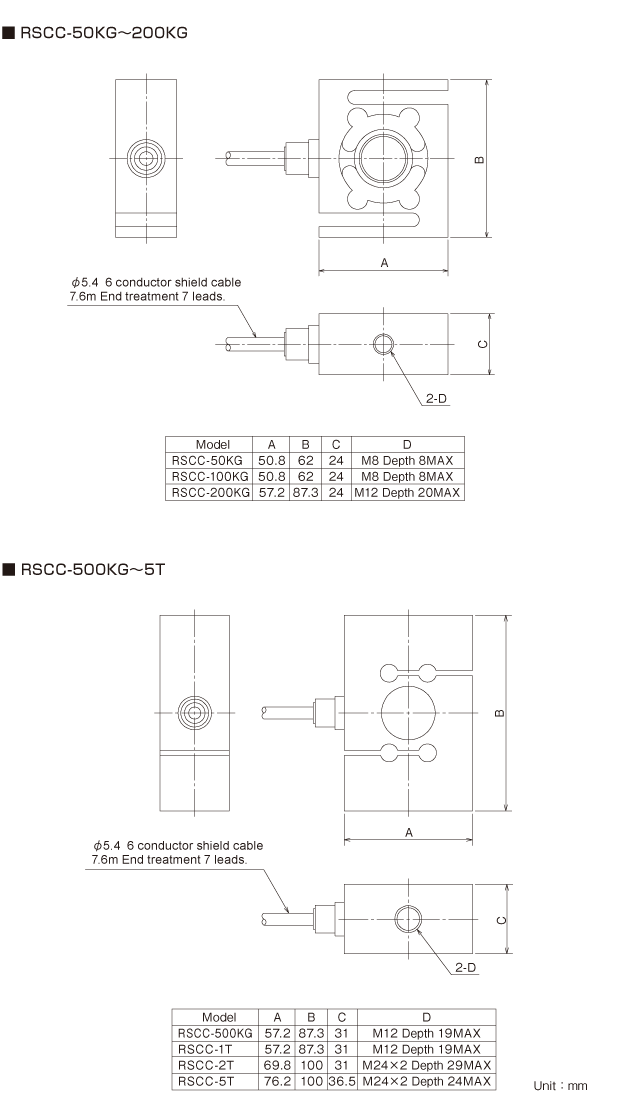

External dimension
