Capacity 5 N / 10 N / 20 N / 50 N
Construction material: Aluminum (5 N / 10 N), Stainless steel (20 N / 50 N)

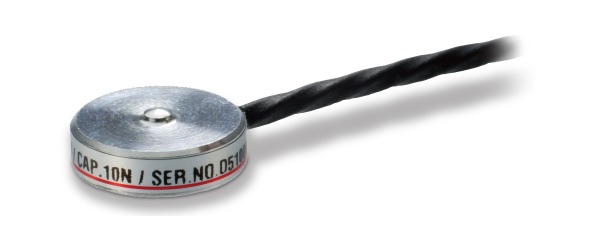

Ultra-compact compression type loadcell with a diameter of 12 mm and a height of 4 mm

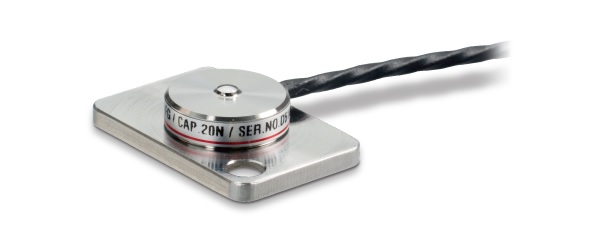

UNCSR-FG: W/ plate for screw fastening

Model	UNCSR-5N UNCSR-5N-FG UNCSR-10N UNCSR-10N-FG	UNCSR-20N UNCSR-20N-FG UNCSR-50N UNCSR-50N-FG
Rated capacity	5 N, 10 N	20 N, 50 N
Rated output	Approx. 1 mV/V
Safe overload	150% R.C.
Zero balance	±10% R.O.
Non-linearity	0.3% or less R.O.
Hysteresis	0.3% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	0 to +50℃
Safe temperature range	-10 to +60℃
Temperature effect on zero	2.0% R.O./10℃ or below
Temperature effect on span	1.0% R.O./10℃ or below
Input resistance	Approx. 350 Ω
Output resistance	Approx. 350 Ω
Recommended excitation voltage	2.5 V(AC, DC)
Maximum excitation voltage	5 V(AC, DC)
Insulation resistance (DC 50 V)	1000 MΩ or more
Cable	φ3 4-conductor shield cable 3 m Cable end: 5 wires
Cable color code	＋EXC：Red ＋SIG：Green －EXC：White －SIG:Black SHIELD:Yellow
Loadcell material	Aluminium	Stainless steel
Deflection at rated	0.02 mm	0.01 mm
Natural frequency	Approx. 2.3 kHz	20N：27 kHz 50N：42 kHz
Weight	5N：3 g, 5N-FG：5 g 10N：3 g, 10N-FG：5 g 20N：3 g, 20N-FG：9 g 50N：3 g, 50N-FG：9 g
RoHS directives	2011/65/EU (EU)2015/863
