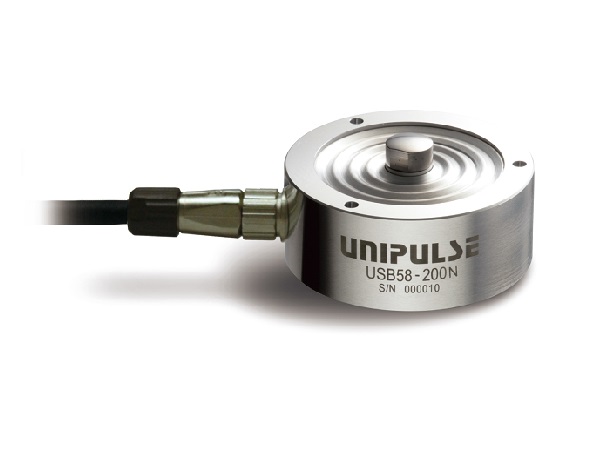

Accuracy 1/10000 ――― Top-of-the-line compression / tension type loadcells uniquely developed through the perseverance of Unipulse. They are the USB58 series.
* Capacity 200 N / 500 N
* Accuracy 1/10000 (Non-linearity, Hysteresis, Repeatability)
* High input impedance: 1050 Ω
* Usage: Applications in fields that require high accuracy such as calibration of testing units, in-house standard devices, etc.
* Capacity 200 N / 500 N
* Accuracy 1/10000 (Non-linearity, Hysteresis, Repeatability)
* High input impedance: 1050 Ω
* Usage: Applications in fields that require high accuracy such as calibration of testing units, in-house standard devices, etc.
ข้อมูลจำเพาะ
| Model | USB58-200N, USB58-500N |
|---|---|
| Rated capacity | 200 N, 500 N |
| Rated output | 1 mV/V±1% |
| Safe overload | 150% R.C. |
| Zero balance | ±2% R.O. |
| Non-linearity | 0.01% or less R.O. |
| Hysteresis | 0.01% or less R.O. |
| Repeatability | 0.01% or less R.O. |
| Creep | 0.03% R.O./30min |
| Operation temperature range | -10 to +70℃ |
| Safe temperature range | -30 to +80℃ |
| Temperature effect on Zero | 0.03% R.O./10℃ or below *Spec Changed |
| Temperature effect on span | 0.03% R.O./10℃ or below *Spec Changed |
| Input resistance | Approx. 1050 Ω |
| Output resistance | Approx. 1050 Ω |
| Recommended excitation voltage | 10 V(AC, DC) |
| Maximum excitation voltage | 20 V(AC, DC) |
| Insulation resistance (DC 50 V) | 1000 MΩ or more |
| Cable | φ5 6-conductor flexible cable 5 m. Cable end: 7 wires. |
| Cable color code | ＋EXC：Red ＋S：Yellow －S：Orange －EXC：Black ＋SIG：Green －SIG:White SHIELD |
| Loadcell material | Aluminum alloy |
| Deflection at rated | 0.025 mm |
| Natural frequency | 2 kHz |
| Weight | 120 g |
| RoHS directives | 2011/65/EU (EU)2015/863 |
